Refrigerant Filling And Evacuation Equipment

Refrigerant Filling And Evacuation Equipment

Product Details:

X

Product Description

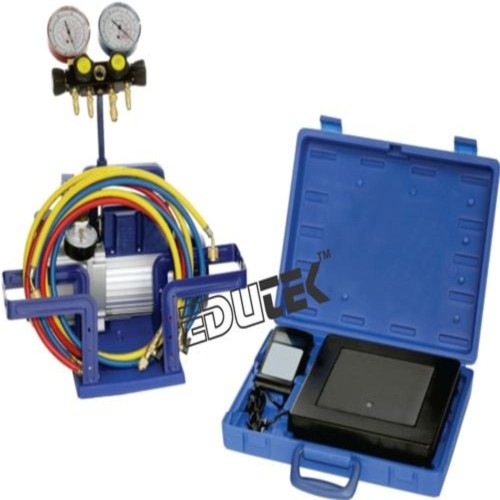

REFRIGERANT FILLING AND EVACUATION EQUIPMENT
The accessory is used to evacuate and fill refrigeration systems. The refrigeration system is evacuated using a vacuum pump. Evacuation using the vacuum pump removes air and humidity from the refrigeration system to allow subsequent filling with refrigerant. The correct amount of refrigerant is monitored using the filling balance.The equipment is designed for the CFC-free refrigerant R134a.
The unit shall perform the following experiments and investigations:
Learning Objectives / Experiments
  • Prepare the filling station
  • Evacuate the refrigeration system
  • Fill the refrigeration system
Specification
  • Portable equipment
  • Vacuum pump and filling balance
  • 4-valve assembly aid
  • Pulsation-damped manometer for intake pressure, high pressure; vacuum meter
  • Manometer for intake and high pressure with temperature scale for refrigerant R134a
  • High pressure and intake pressure connections
Technical Data
  • Vacuum pump: motor power: 0,25kW,
  • Intake volume: 66L/min, final vacuum: 0,02mbar
Measuring ranges
  • Intake pressure: -1...8bar
  • High pressure: 0...31bar
  • Vacuum: 0...1000mbar
Dimensions and Weight
  • L x w x h: 510x175x485mm
  • L x w x h: 370x270x60mm (filling balance)
  • Weight: approx. 15kg
