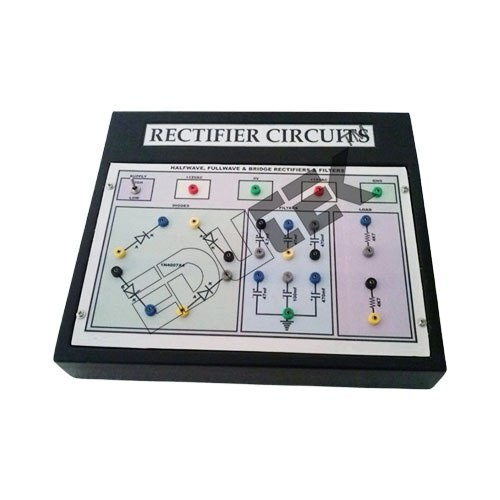

About RECTIFIER CIRCUITS (HALF WAVE, FULL WAVE & BRIDGE RECTIFIER)
Specification:
RECTIFIER CIRCUITS (HALF WAVE, FULL WAVE & BRIDGE RECTIFIER)
Objective:
To demonstrate the characteristics of half wave rectifier, full wave and bridge wave rectifier.
To demonstrate how the capacitor size affects the ripple at the output.
To construct the voltage doublers.
Technical Specification:
Built in power supply: 15V- 0-15V AC
Mains: 230V AC
Dimension: 27CMS X 17CMS [metal cabinet]
Weight: 2Kg Approx.
Versatile Rectifier Trainer for Educational ExplorationExpand your practical electronics knowledge with this durable trainer. Designed for student and classroom use, it demonstrates Half Wave, Full Wave, and Bridge Rectifier principles using reliable components and safe operation. Easily connect instruments via marked binding posts to measure performance under real conditions.
Reliable and Safe DesignSafety is prioritized with an inline fuse and FR4 Glass Epoxy PCB construction. All connections utilize banana socket terminals for secure, user-friendly experimentation. Meets all educational safety standards for peace of mind during laboratory sessions.
Comprehensive Experimental CapabilityWith this all-in-one trainer, you can configure and observe several AC to DC conversion methods. Each setup is clearly described in the included manual, providing a structured learning experience for understanding rectification and filtering processes.
FAQ's of RECTIFIER CIRCUITS (HALF WAVE, FULL WAVE & BRIDGE RECTIFIER):
Q: How do I set up and use the rectifier trainer kit for experiments?
A: Begin by connecting the AC mains supply (230V) to the input, ensuring the inline fuse is in place. Use the binding posts and clearly marked nodes to connect an external meter for voltage measurement. Follow the instructions in the user manual to configure the kit for half-wave, full-wave, or bridge rectification experiments.
Q: What is the main function of this rectifier trainer kit?
A: The trainer demonstrates AC to DC conversion through half-wave, full-wave, and bridge rectifier circuits. By using different diode configurations and transformer tap options, you can study the effect of rectification and smoothing (if a capacitor is included) on output DC voltage.
Q: When should the electrolytic capacitor be used in the experiments?
A: The electrolytic capacitor is used during experiments that require smoothing of the pulsating DC output. This setup helps illustrate the effectiveness of filtering in reducing output voltage ripple after rectification.
Q: Where can I take output measurements from the circuit?
A: All voltage measurement points are clearly indicated on the PCB with distinct circuit node markings. Connect your external voltmeter or ammeter to these binding posts to measure both input and output voltages during operation.
Q: What safety features are included in the trainer kit?
A: For user protection, the trainer is equipped with an inline fuse to safeguard against overcurrent. It is fabricated on a robust FR4 Glass Epoxy PCB and adheres to educational safety norms, making it secure for classroom and laboratory use.
Q: What are the benefits of using this rectifier trainer in engineering education?
A: This trainer offers hands-on experience with real circuit configurations, helping students understand rectification concepts, AC/DC conversion, and circuit behavior. It promotes safe, practical learning with replaceable components and straightforward measurement interfaces.
