Reaction Turbine

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Reaction Turbine Specification

Feature
Highly efficient

Weight
45 Kilograms (kg)

Warranty
1 year

Dimension (L*W*H)
860 x 360 x 750 Millimeter (mm)

Accuracy
100 %

Type
REACTION TURBINE

Usage
Laboratory

Reaction Turbine Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Africa, Middle East, Asia, Eastern Europe, Western Europe

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Reaction Turbine

REACTION TURBINE

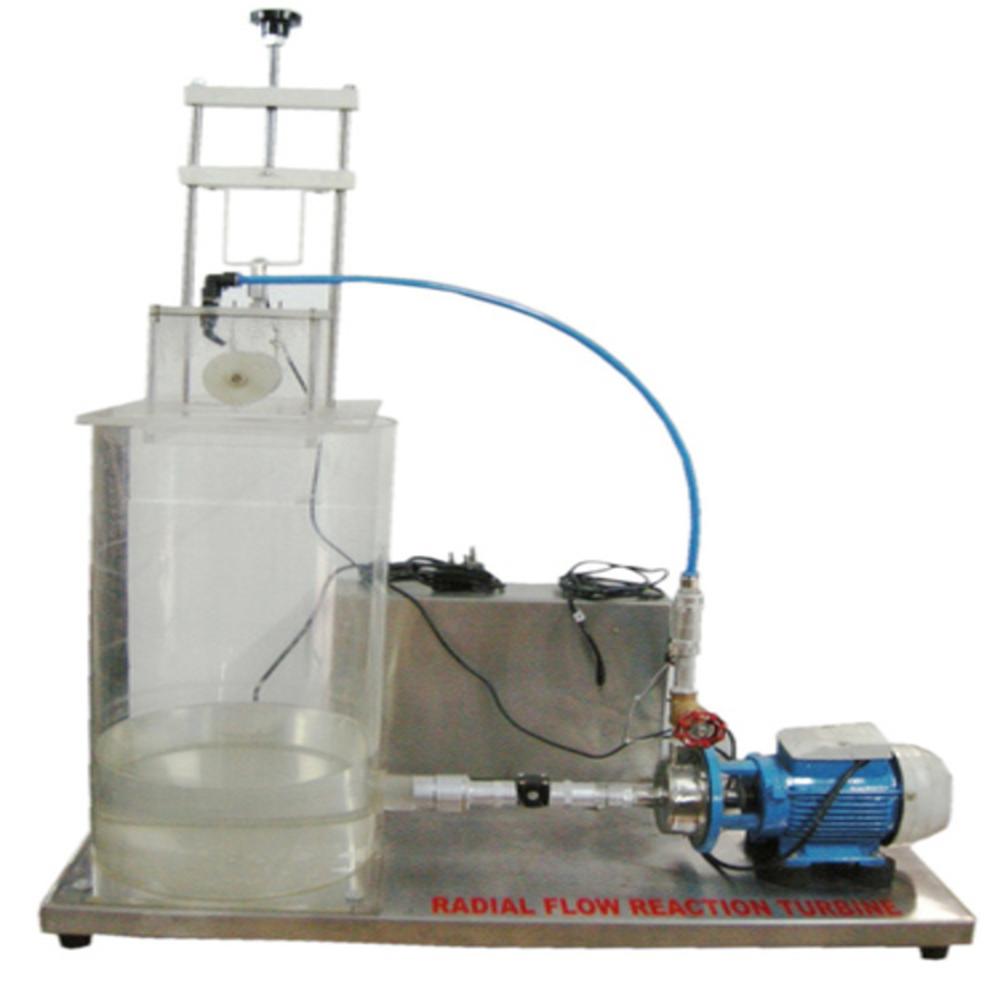

Reaction turbine demonstration unit, designed for operation in conjunction with the Turbine Service Unit. The turbine unit is placed on the Turbine Service Unit and supplied with water by the service unit. The turbine housing is made of Plexiglass so that the emerging water jet that drives rotor using the reaction principle can be observed unhindered. A braking device is fitted to the impeller shaft of the turbine, the braking device is in the form of a band brake using which the load and moment on the turbine shaft can be measured with an electronic dynamometer. A proximity switch measures the rotational speed of the turbine. The following accessories are required for operation: an Interface Module, Data Acquisition Card with Software and Connecting Cables .

The unit perform the following experiments and investigations:
Learning Objectives / Experiments
Familiarisation with the design and function of an impulse turbine
Determination of torque, power and efficiency
Graphical representation of characteristic curves for torque, power and efficiency

Specification:

Investigation of a compressed air driven radial reaction turbine
Transparent housing for observing the operating area [
Rotor with 4 outlet nozzles
Application of load to the turbine by means of a band brake
Setting of the primary pressure with the pressure reducing valve
Valve and flow meter for setting the flow
Solenoid valve as a safety device to prevent over speed
determination of the torque on the turbine shaft using a force sensor
Measurement of the turbine speed with an optical speed sensor
Manometer for displaying the pressure on the inlet and outlet side
Digital display of speed, torque and temperature

Technical Data:

Reaction turbine
Max. power: 20W at 19000min
1 Rotor - diameter: 55mm
4 outlet nozzles; diameter: 1,5mm

Measuring ranges:

Temperature: -20...1100°C
Speed: 0...30000min-1
Torque: 0...10Ncm
Flow rate: 25...315L/min
Inlet pressure: 0...2,5bar
Outlet pressure: 0...0,1bar
Primary pressure: 0...10bar
Dimensions and Weight
LxWxH: 860 x 360 x 750mm
Weight: approx. 45kg

Featured:

Demonstration model of a reaction turbine
Transparent turbine housing
Measured data acquisition using electronic sensors
Processing of measured data on a PC

Exceptional Efficiency and Accuracy

Engineered for laboratory excellence, the Reaction Turbine is renowned for its high efficiency and remarkable 100% accuracy. These features guarantee consistent, reliable experimental results, making it a preferred choice for educational and research institutions.

Compact and Robust Laboratory Design

With dimensions of 860 x 360 x 750 mm and a weight of just 45 kg, this turbine offers both durability and portability. Its size makes it easy to incorporate into laboratory setups without requiring extensive space or complex installations.

FAQs of Reaction Turbine:

Q: How does the Reaction Turbine operate in laboratory settings?

A: The Reaction Turbine functions by allowing water to flow through its runner, causing rotation due to the reaction force. This setup helps users study both impulse and reaction principles, making it ideal for laboratory demonstrations and experiments.

Q: What benefits does the Reaction Turbine offer for educational institutions?

A: With 100% accuracy and high efficiency, the Reaction Turbine allows students and researchers to obtain reliable data and insights into turbine technology, enhancing learning and understanding of fluid mechanics and energy conversion.

Q: When is the Reaction Turbine most suited for use?

A: This turbine is best utilized during laboratory classes, demonstrations, and research projects focused on power generation, turbine operation, or fluid dynamics. Its precise results make it valuable throughout academic sessions.

Q: Where can the Reaction Turbine be sourced from in India?

A: Manufactured, exported, and supplied by specialists in India, the Reaction Turbine is readily available for laboratories through reputable vendors catering to academic and research institutions.

Q: What is the warranty and support provided with the Reaction Turbine?

A: The Reaction Turbine comes with a one-year warranty, ensuring reliable after-sales support and peace of mind for laboratories using this equipment.

Q: What is the process for setting up and using the Reaction Turbine?

A: Setup involves positioning the turbine on a stable lab bench, connecting it to a water supply, and following the included guidelines for operation and experimentation to obtain accurate results.

Q: How does the turbines size and weight benefit laboratory usage?

A: Its compact dimensions and lightweight design simplify transport, installation, and storage, allowing it to fit into most laboratory environments without difficulty.
