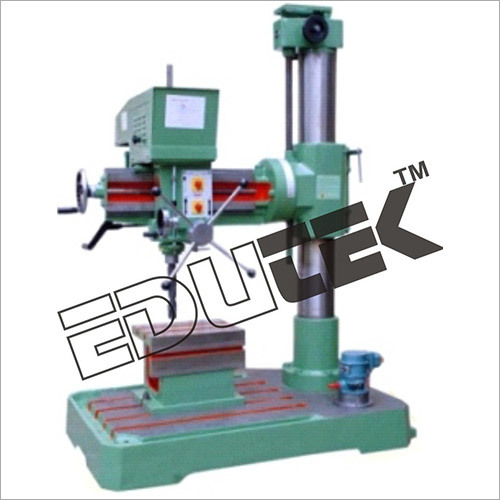

Radial Drilling Machine

Name: Radial Drilling Machine
Brand: EDUTEK INSTRUMENTATION

Get a Price/Quote

MOQ : 2 Units

Radial Drilling Machine Specification

Warranty
12 MONTHS

Power Source
MANUAL

Product Type
Radial Drilling Machine

Classification
Radial Drilling Machine

Material
METAL

Feature
DRILL 80MM

Equipment Materials
METAL

Display Type
NONE

Radial Drilling Machine Trade Information

Minimum Order Quantity
2 Units

Payment Terms
Cheque, Telegraphic Transfer (T/T)

About Radial Drilling Machine

Radial Drilling Machine

Edutek Instrumentation are Manufacturer and Supplier univer Company in India,We are Exporter in India and other country We are manufacturer and Exporter of Radial Drilling Machine . Offered machines can be installed easily and work smoothly.

Descriptions of Radial Drilling Machine

Special CAM operated head clamping Quill balancing Auto-feed enabled by electromagnetic chuck Hardened gears for both speed and feed gear box Drilling Capacity In Steel 63mm,; Drilling Capacity In Cast 75mm;Boring Capacity In Steel 100mm; Min. / Max. distance between spindle & column 350 / 1600 Radial Arm Swivel 0-360 Degrees; Number of spindle feeds 6 Range of Spindle feeds0.09 to 1.20 mm/rev Range of Spindle speeds 36 to 1796 rpm.

Accessories of Radial Drilling Machine

Drill Holder Brackets, Twist Drills: High speed steel with straight and tapered shanks drills ( high helix drill, core drill, oil hole drill, straight-fluted drill, deep hole or gun drill, spade drill, and Step drill, and saw-type hole cutter; Single point boring tool; Center drills regular and bell type; Reamers: rose, carbidetipped, shell, adjustable and expansion-type reamers; Machine Taps: Gun,
Stub flute and spiral flute each type supplied in sets of three; fluteless tap; countersinks; All to be supplied with the respective accessories such as drill jig chucks, guide plate and spacers. Functions for: machining holes and cutting internal thread.

Specification:

Maximum drill diameter: 80mm
Distance between spindle nose to table: 550-1600mm
Distance between spindle axis and column surface: 450-2000mm
Spindle travel: 400mm

Rotary angle: 360deg
Main motor power: 7,5kw
Lifting motor power: 1.5kw
Working table: 780x580x500mm 1 no.
Anchor bolt: M

Sturdy Construction for Industrial Demands

The machine is crafted from high-quality metal, offering durability and resilience in challenging work conditions. Its solid build ensures long-term, trouble-free usage for frequent and heavy-duty drilling tasks. The radial arm design allows for versatility in positioning and depth control, meeting various project requirements.

Manual Operation for Ultimate Control

This radial drilling machine operates manually, giving users complete control over the drilling process. Absence of electronic elements means lower maintenance and the ability to work in environments with unreliable power supply. Its ideal for workshops needing flexibility and straightforward functionality.

FAQs of Radial Drilling Machine:

Q: How do I operate the Radial Drilling Machine manually?

A: To operate this machine, secure the workpiece on the base, adjust the radial arm and spindle to the desired position, and use manual controls to commence drilling. The lack of electronic systems ensures that all adjustments and operation steps are handled directly by the user.

Q: What is the maximum drilling capacity of this machine?

A: This radial drilling machine is capable of drilling holes up to 80mm in diameter through metal materials, making it suitable for heavy-duty industrial fabrication.

Q: When should regular maintenance be carried out?

A: Regular maintenance should be performed every few months or after extended periods of continuous use. This includes lubrication, checking for wear and tear on moving parts, and ensuring all bolts and clamps remain tight.

Q: Where is the Radial Drilling Machine manufactured and exported from?

A: This radial drilling machine is manufactured, supplied, and exported from India, meeting international standards and rigorous quality checks before shipment.

Q: What is the process for claiming the warranty?

A: If any issues arise within the 12-month warranty period, contact the manufacturer, supplier, or authorized exporter with your purchase details and a description of the issue. Warranty service will be arranged as per the terms provided.

Q: How can this machine benefit my workshop?

A: Its manual operation and robust metal construction provide reliability in challenging industrial settings. The high drilling capacity allows for a broader range of applications, while low maintenance costs and versatile positioning add practical value.
