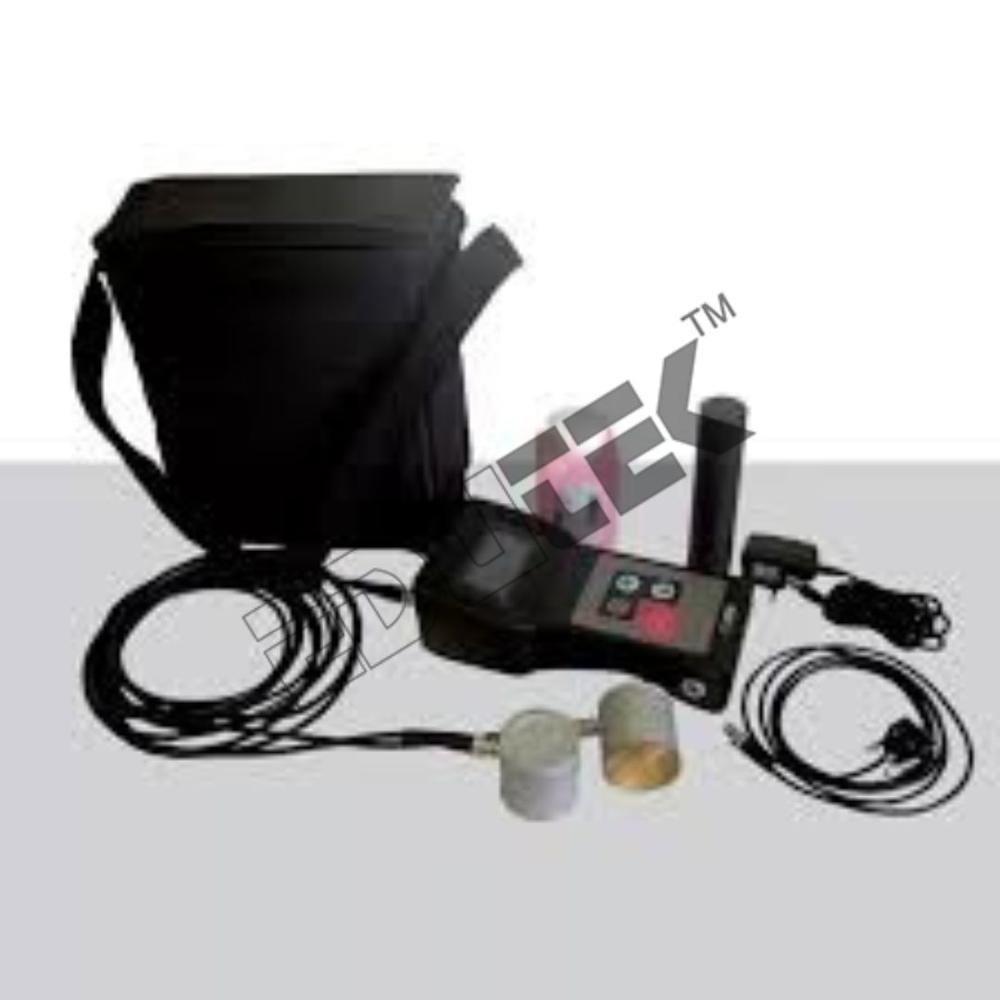

Pulse Velocity Measurement

Price 3000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Pulse Velocity Measurement Specification

Capacity
STANDARD Kiloliter/day

Automation Grade
Automatic

Material
ABS Plastic, Metal

Core Components
Transducer, Receiver, Display Unit

Model No

Temperature Range
0 C to 60 C Celsius (oC)

Operate Method
Pulse Velocity (V) is calculated by measuring the time of transit (T) of an ultrasonic pulse between two transducers placed a known distance (L) apart on the concrete surface: V = L / T

Color
Typically Black or Grey Casing

Power Source
220 V AC

Application
Structural Health Monitoring, Quality Control, Damage Assessment

Classification
Civil Engineering / Concrete Testing Equipment

Measurement Range
0.1 m to 1.0 m

Frequency
25 kHz to 100 kHz Hertz (HZ)

Accuracy
100 % %

Usage
Assessing concrete uniformity, detecting voids/cracks, estimating strength, and monitoring material changes over time

Feature
Highly Efficient

Warranty
1 YEAR

Voltage
220 V Volt (v)

Product Type
Non-Destructive Testing (NDT) Equipment

Equipment Materials
Stainless Steel, ABS Plastic

Type
Pulse Velocity Measurement

Display Type
Digital

Dimension (L*W*H)
235 x 135 x 270 mm Millimeter (mm)

Weight
Approx. 2.5 kg Kilograms (kg)

About Pulse Velocity Measurement

Pulse Velocity Measurement

Edutek are offering a wide range of material testing Equipment supplier . Strength of Construction Equipment, Building and Civil Engineering instrument manufacturer in India.

Use: Concrete uniformity, Check for imperfection in concrete,Concrete deterioration from fire or chemical attack, Layer thickness and modulus of elasticity, Concrete strength.

Specifications of Pulse Velocity Measurement

Time measurement 0.1 to 999.9 sec.
Ranges of 0.1 to 999.9 sec 1 to 9999 sec.
Accuracy 0.1 m sec.
Transmitter, pulse 1.2 k V, 500 V or 250 V, 1.5 m sec.
Power supply Battery: Ni-Cad rechargeable Mains: 110 240 V AC, 50 60 Hz, 1 ph.
Display 128 x 128 dot LCD with back lighting.
Weight 8.2 kg.

Supplied together with

Two 54 kHz transducers (transmitter and transducer).
3 m cable.
Coupling agent 259 cc bottle.
Nylon carrying case.
Instruction manual.

Accessories :

Testing heads of nominal working frequency between 24 and 150 kHz.
Oscilloscopes for 110-230 v, 50-60 Hz, 1 ph.
Calibration rods.

Exceptional Accuracy and Measurement Range

The PV-3087 ensures 100% accuracy with a measurement range from 0.1 m to 1.0 m, accommodating samples up to 1 meter. Fast data acquisition at 20 samples/sec and high 0.01 s resolution make it ideal for critical laboratory analyses of various construction or geological materials, ensuring reliable assessments.

Efficient Laboratory Testing Experience

Designed for laboratory professionals, this fully automatic device features user-friendly digital controls, a clear backlit LCD, and optional battery backup for up to six hours of continuous measurement. Its robust build and IP54 rating ensure durability and consistent performance even in challenging humidity levels up to 90% RH.

FAQs of Pulse Velocity Measurement:

Q: How do I connect the PV-3087 Pulse Velocity Measurement device to my computer for data transfer?

A: You can connect the PV-3087 using its USB or RS232 ports, allowing easy export of measured data for further analysis or record-keeping, regardless of your laboratorys preferred data management system.

Q: What materials can be tested with the PV-3087 Pulse Velocity Measurement device?

A: The device is suitable for a variety of non-metallic materials including concrete, rock, ceramics, and similar substances, making it versatile for construction, geoscience, and material research applications.

Q: When is auto-calibration required and how does the process work?

A: Auto-calibration is conducted automatically by the instrument before each testing session or when there are significant changes in environmental or sample conditions. The process ensures measurements remain precise without manual intervention.

Q: Where should the PV-3087 be used for optimal performance?

A: This instrument is optimized for laboratory environments but is protected with an IP54 rating and robust materials, enabling reliable operation even in high-humidity settings (up to 90% RH) between 0C and 60C.

Q: What is the benefit of the 0.01 microsecond resolution in pulse velocity measurement?

A: The ultra-fine 0.01 s resolution allows for highly detailed and accurate measurement of signal travel times, which translates to precise calculations of material properties and structural integrity analysis.

Q: How does the optional battery backup enhance usability?

A: The optional 6-hour battery backup allows uninterrupted testing and data recording during power outages or in locations without immediate access to a power source, making the device highly practical for demanding laboratory workflows.
