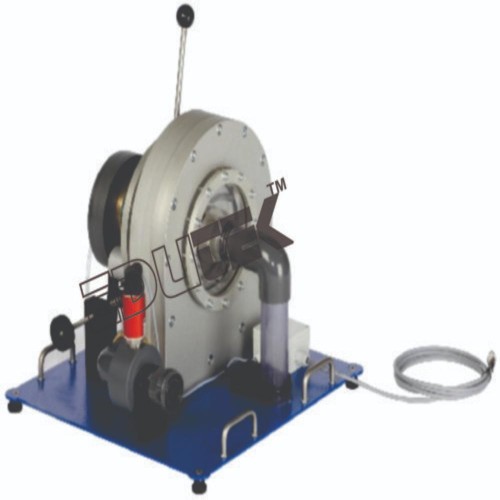

Principle Of A Francis Turbine

Price 100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Principle Of A Francis Turbine Specification

Dimension (L*W*H)
425x425x680 Millimeter (mm)

Warranty
1 year

Accuracy
100 %

Weight
22 Kilograms (kg)

Feature
Highly Efficient

Type
OPERATING PRINCIPLE OF A FRANCIS TURBINE

Usage
Laboratory

About Principle Of A Francis Turbine

OPERATING PRINCIPLE OF A FRANCIS TURBINE

The Francis turbine is part of the reaction turbines which convert the pressure energy of water into kinetic energy in the distributor and in the rotor.

Francis turbines are used at medium heads and large flow rates. The turbine power is controlled by adjusting the guide vanes. In practice, Francis turbines are used in run-of-the river power plants and in storage power plants. The Francis turbine is an accessory for the trainer. The experimental unit consists of the rotor, the distributor with adjustable guide vanes, a band brake for loading the turbine and the spiral housing with a transparent front panel.The transparent cover enables you to observe the water flow, the rotor and the guide vanes during operation. The angle of attack and the cross-section of flow are adapted to the speed and power of the turbine by adjusting the guide vanes.

The pressure at the turbine inlet is recorded with a pressure sensor. A force sensor and a speed sensor are attached to the band brake. Thus, the mechanical power output of the turbine can be determined. Speed, torque and pressure are displayed on the switch cabinet of and processed further in the software. Water supply and flow rate measurement are provided by. The well-structured instructional material sets out the fundamentals and provides a step-by-step guide through the experiments. The unit perform the following experiments ar investigations:

Learning Objectives / Experiments

Design and function of a Francis turbine
Determination of torque, power and efficiency
Graphical representation of characteristic curves for torque, power and efficiency

Specification:

Function of a Francis turbine
Transparent front panel for observing the operating area
Loading the turbine by use of the band brake
Adjustable guide vanes for setting different angles of attack
Marking on brake drum for non-contact speed measurement
Instruments: spring balances for determining the torque, manometer shows pressure at turbine inlet
Flow determination by base module
Water supply using the base module or via lab supply

Technical Data:

Turbine
output: 12W at n=1100min-1, approx. 40L/min, H=8m
Rotor, 7 blades
Blade width: 5mm
External diameter: 50mm
Guide vanes: 6 vanes, adjustable (20 stages)

Measuring ranges:

Braking force (spring balance): 10N
Pressure: 0...1,0bar

Dimensions and Weight:

LxWxH: 425x425x680mm
Weight: approx. 22kg

Precision in Learning Turbine Dynamics

This operating principle model offers students and engineers a clear, hands-on approach to understanding how a Francis turbine functions under different conditions. It provides reliable and accurate results, making it ideal for laboratory demonstrations and turbine performance studies.

Robust Construction for Repeated Usage

Crafted with durable materials and designed to withstand regular laboratory use, the Francis Turbine apparatus remains highly efficient. Its compact dimensions and lightweight build simplify setup, handling, and storage in academic and professional settings.

FAQs of Principle Of A Francis Turbine:

Q: How does the Principle of a Francis Turbine apparatus work in a laboratory setting?

A: The apparatus simulates the operation of a Francis turbine, allowing users to study its efficiency, flow dynamics, and mechanical characteristics under controlled laboratory conditions.

Q: What is the main benefit of using this Francis Turbine model in academic laboratories?

A: Its high accuracy and efficiency provide reliable results, making it ideal for demonstrating turbine principles and conducting performance experiments for educational or research purposes.

Q: Where is this Francis Turbine principle unit typically utilized?

A: This unit is primarily used in educational laboratories, research institutions, and engineering colleges to help students and researchers understand and analyze turbine working principles.

Q: When should institutions consider investing in the Francis Turbine principle apparatus?

A: Institutions should invest when practical, hands-on demonstration of hydraulic turbine functions is required for curriculum enhancement or experimental research.

Q: What process does the unit help demonstrate?

A: It demonstrates the energy conversion from water flow to mechanical shaft work in a Francis turbine, allowing observation and analysis of efficiency and performance factors.

Q: How accurate are the measurements taken with this device?

A: The apparatus is designed for laboratory applications with 100% accuracy, ensuring dependable and precise measurements during experiments.

Q: What warranty and after-sales support are available for this product?

A: This Francis Turbine operating principle unit comes with a one-year warranty, with comprehensive support provided by the manufacturer, exporter, and supplier based in India.
