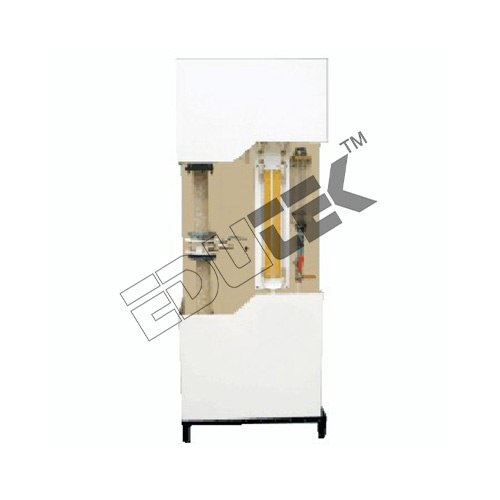

Send InquiryPRESSURE DROP THROUGH PACKED BED APPARATUS
MOQ : 1 Piece
PRESSURE DROP THROUGH PACKED BED APPARATUS Specification
- Mounting Type
- Bench-top
- Interface Type
- Analog/Digital Output
- Power Supply
- 230V AC, 50Hz
- Test Range
- 0-1500 mmWC
- Product Type
- PRESSURE DROP THROUGH PACKED BED APPARATUS
- Temperature
- Ambient (20C - 30C)
- Response Time
- < 2 s
- Specimen Size
- Diameter 75 mm, Height 200 mm
- Display Type
- Digital LED
- Application
- Engineering Testing Equipment
- Usage
- Engineering Testing Equipment
- Gas Pressure
- 0-1 kg/cm
- Number of Specimens
- Single
- Frequency
- 50Hz
- Automation Grade
- Semi-automatic
- Features
- Corrosion resistant, Durable, Easy specimen replacement
- Equipment Type
- Lab Apparatus
- Max Height
- 550 mm
- Measuring Range
- 0-1500 mmWC
- Accuracy
- 1% of FSR
- Resolution
- 1 mmWC
- Humidity
- Up to 85% RH
- Operating Voltage
- 230V AC
- Port Size
- 1/2 Inch BSP
- Capacity
- 5 Litres
- Machine Weight
- Approx. 40 kg
- Test Speed
- Variable, up to 10 LPM
- Test Width
- 300 mm
- Test Stroke
- 200 mm
- Control Mode
- Manual/Automatic
- Manometer Type
- U-tube Manometer (Mercury/Water)
- Bed Material
- Glass beads or similar
- Complies With
- IS/ASTM Standards
- Flow Measurement
- Rotameter Provided
- Calibration
- Factory calibrated
- Safety Features
- Overpressure protection
- Packing Material Diameter
- 4-6 mm
- Drain Valve
- Provided for easy cleaning
- Sampling Points
- Multiple sampling ports
- Frame Material
- Mild Steel Powder Coated
PRESSURE DROP THROUGH PACKED BED APPARATUS Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Packaging Details
- Carton Box, Export Quality also Available
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001, CE
About PRESSURE DROP THROUGH PACKED BED APPARATUS
Specification:
PRESSURE DROP THROUGH PACKED BED APPARATUS
EdutekPressure Drop Through Packed Bed. Under the supervision of our skilledtechnocrats, these machines are manufactured as per the latest technologicaladvancements utilizing quality approved raw materials. Offered product isacknowledged for its robust construction, low maintenance, longer functionallife and energy efficiency. We offer pressure drop in both, standard andcustomized specifications to our valuable clients.
Features:
Highlyefficient
Premiumquality
Durablefinish
Specifications:
PackedColumn Material Borosilicate Glass with both end made of Stainless Steel
PackingMaterial Borosilicate Glass rings, Size 8-10mm approx.
Watertank Material Stainless Steel, Capacity 30 Ltrs
WaterCirculation FHP Pump Crompton/Sharp make
FlowMeasurement Rotameters for water
DropMeasurement Manometer
Thewhole set-up is well designed and arranged in a good quality painted structure
Accurate Fluid Flow Analysis
Precisely measure and evaluate pressure drop across packed beds using glass beads with diameters from 4-6 mm. The apparatus offers variable flow rates up to 10 LPM, a fine resolution of 1 mmWC, and factory calibration, ensuring reliable and repeatable data collection for research and instructional purposes.
User-Friendly Laboratory Design
Engineered for convenience, this apparatus features a powder-coated mild steel frame, bench-top mounting, and easy specimen replacement. Safety is ensured through overpressure protection and a drain valve for cleaning. Manual and automatic controls suit both novice learners and advanced researchers.
FAQs of PRESSURE DROP THROUGH PACKED BED APPARATUS:
Q: How does the Pressure Drop Through Packed Bed Apparatus function?
A: This apparatus allows users to study fluid flow through a bed of glass beads by measuring pressure drop across the bed using a U-tube manometer. Variables like flow rate, specimen size, and packing material can be adjusted to evaluate different flow regimes and bed characteristics.Q: What materials and measurement tools are included with the equipment?
A: The apparatus comes with glass beads or similar bed material (4-6 mm diameter), a U-tube manometer (compatible with mercury or water), a rotameter for flow measurement, and a digital LED display for precise readings. The frame is constructed from corrosion-resistant, powder-coated mild steel.Q: When should this apparatus be used in a laboratory setting?
A: It is typically utilized in undergraduate and postgraduate engineering laboratories for experiments related to fluid mechanics and process engineering, especially when studying pressure drop, flow characteristics, and permeability through packed beds.Q: Where is the apparatus installed and how is it operated?
A: The unit is designed for bench-top installation in labs. Operation is straightforwardspecimen replacement is easy, controls can be set to manual or automatic, and variable test speeds up to 10 LPM can be selected using the digital interface.Q: What is the process for calibrating and maintaining the equipment?
A: Each apparatus is factory calibrated to meet IS/ASTM standards for accuracy (1% FSR). Regular maintenance includes draining and cleaning with the provided valve, checking for overpressure protection function, and verifying digital display performance.Q: How do users benefit from this apparatus in research and education?
A: Users gain insights into real-world engineering processes, observe the behavior of fluids in a controlled, safe, and repeatable environment, and develop practical understanding needed for careers in chemical, mechanical, or process engineering.
