Pressure Drop Through Packed Bed

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Pressure Drop Through Packed Bed Specification

Model No
PETE/008

Accuracy
1% of full scale

Automation Grade
Manual

Frequency
50 Hz

Power Source
Electric

Temperature Range
Ambient to 100C

Core Components
Glass column, Manometer, Feed tank, Pump, Control valves

Measurement Range
0-1000 mm WC

Capacity
0.5-1.5 m/hr

Feature
Corrosion resistance, Transparent observation, Easy to operate

Voltage
220 V AC

Equipment Materials
Borosilicate glass, SS, Mild Steel with powder coating

Type
Educational Laboratory Equipment

Usage
Chemistry Lab, Fluid Mechanics Study

Display Type
Digital

Dimension (L*W*H)
1200 x 600 x 1500 mm

Weight
Approx. 35 kg

Pressure Drop Through Packed Bed Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Letter of Credit (L/C), Cash Against Delivery (CAD), Letter of Credit at Sight (Sight L/C), Delivery Point (DP), Telegraphic Transfer (T/T), Days after Acceptance (DA), Cash in Advance (CID), Cheque, Cash Advance (CA)

Delivery Time
2 Week

Sample Available
Yes

Sample Policy
If order is confirmed we will reimburse the sample cost

Main Export Market(s)
Australia, North America, Eastern Europe, Middle East, Western Europe, Africa, Central America, South America, Asia

Main Domestic Market
Chandigarh, South India, East India, Assam, Arunachal Pradesh, Bihar, Delhi, Gujarat, Goa, Haryana, Jammu and Kashmir, Jharkhand, Madhya Pradesh, Maharashtra, Mizoram, Meghalaya, Manipur, Punjab, Rajasthan, Sikkim, Telangana, Tripura, Uttar Pradesh, Nagaland, Kerala, Himachal Pradesh, Andaman and Nicobar Islands, Pondicherry, Daman and Diu, Uttarakhand, Dadra and Nagar Haveli, Lakshadweep, Karnataka, Tamil Nadu, North India, Andhra Pradesh, Central India, Odisha, West India, Chhattisgarh, All India

Certifications
AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.

About Pressure Drop Through Packed Bed

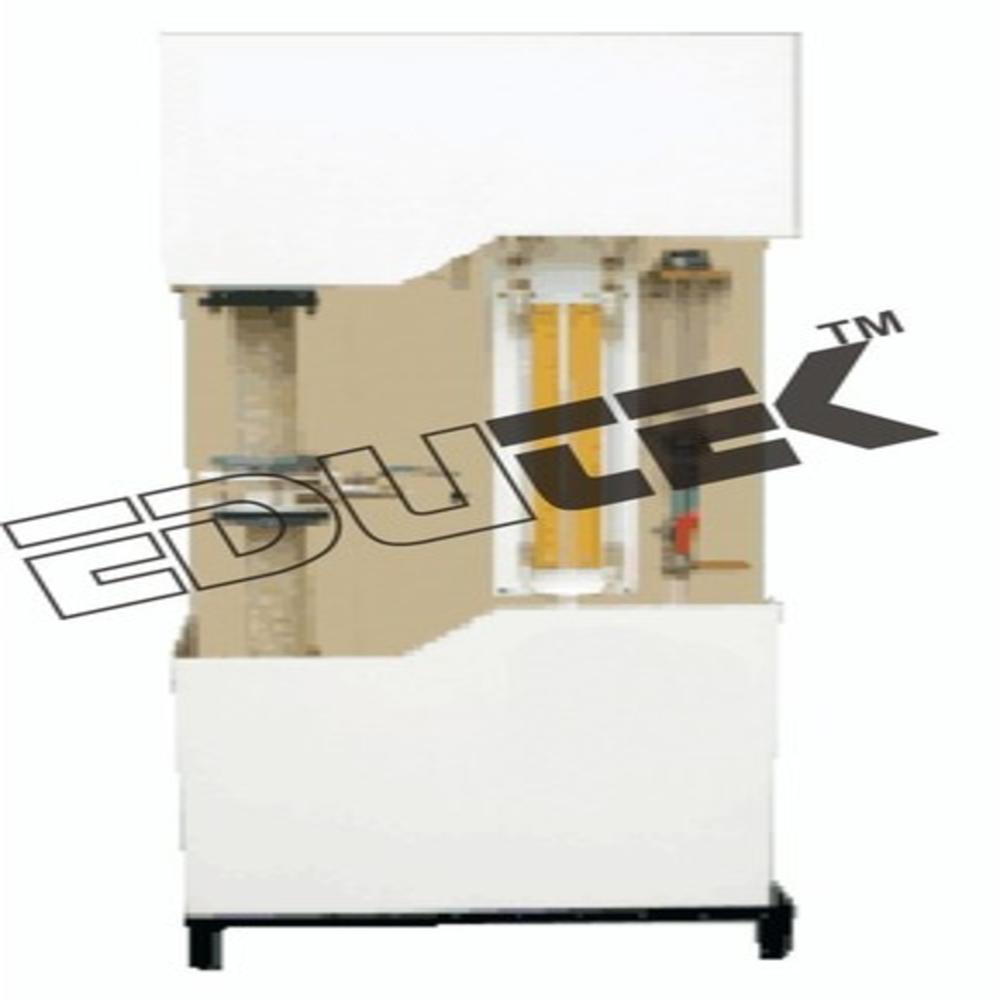

Pressure Drop Through Packed Bed

Pressure Drop Through Packed Bed. Under the supervision of our skilled technocrats, these machines are manufactured as per the latest technological advancements utilizing quality approved raw materials. Offered product is acknowledged for its robust construction, low maintenance, longer functional life and energy efficiency. We offer pressure drop in both, standard and customized specifications to our valuable clients.

Features:

Highly efficient.
Premium quality.
Durable finish.

Specifications:

Packed Column Material Borosilicate Glass with both end made of Stainless Steel.
Packing Material Borosilicate Glass rings, Size 8-10mm approx.
Water tank Material Stainless Steel, Capacity 30 Ltrs.
Water Circulation FHP Pump Crompton/Sharp make.
Flow Measurement Rotameters for water.
Drop Measurement Manometer.
The whole set-up is well designed and arranged in a good quality painted structure.

Transparent and Durable Design

The apparatus utilizes borosilicate glass for the main column, allowing clear visibility of fluid flow patterns and packed bed interactions. Corrosion-resistant construction ensures longevity and reliable performance, even under rigorous laboratory use. Key components, such as control valves and the feed tank, are made from high-grade stainless steel and powder-coated mild steel for added durability.

Precise Measurement and Easy Operation

With an integrated rotameter and digital display, the system provides accurate flow measurement (1% of full scale) and simple monitoring. Operation is straightforward: the centrifugal pump circulates water continuously through the packed bed, allowing for real-time pressure drop assessment. The manual control system enhances hands-on learning and understanding of theoretical principles.

Versatile Educational Application

Designed specifically for fluid mechanics and chemistry labs, the equipment is suitable for experiments involving various packing materials and working fluids. The clear column and precise instrumentation support a range of instructional activities, including analysis of pressure drop, flow regimes, and the impact of packing type on system behavior.

FAQs of Pressure Drop Through Packed Bed:

Q: How does this pressure drop apparatus work in a laboratory setting?

A: The apparatus circulates water through a packed bed of Raschig rings or plastic balls contained in a transparent column. Pressure drop across the bed is measured using a manometer filled with water or mercury. The digital display and rotameter provide real-time flow information, enabling students to study fluid behavior under various conditions.

Q: What packing materials can be used, and what is their significance?

A: The system is designed for use with Raschig rings or plastic balls. These materials serve as packing elements, creating a porous medium for the water to flow through, which enables analysis of pressure drop, fluid dynamics, and flow regimes in packed beds commonly encountered in chemical and process engineering.

Q: When and where is this equipment typically used?

A: This apparatus is intended for use in educational laboratories, primarily in chemistry or fluid mechanics courses. It is employed during practical sessions to help students understand theoretical concepts, observe experiments, and validate fluid mechanics principles discussed in class.

Q: What is the process for measuring pressure drop in this packed bed system?

A: To measure the pressure drop, water is pumped continuously through the packed bed in the glass column. A manometer connected across the bed records the pressure difference, and the flow rate is monitored using the rotameter. Results can be read on the digital display for analysis and data recording.

Q: How does the equipment benefit laboratory studies and instruction?

A: This apparatus offers hands-on experience, allowing students to directly observe pressure drop phenomena and correlate experimental results to theoretical models. Its transparent, corrosion-resistant design enables easy visualization, while precise instrumentation ensures accurate data collection for research and learning.
