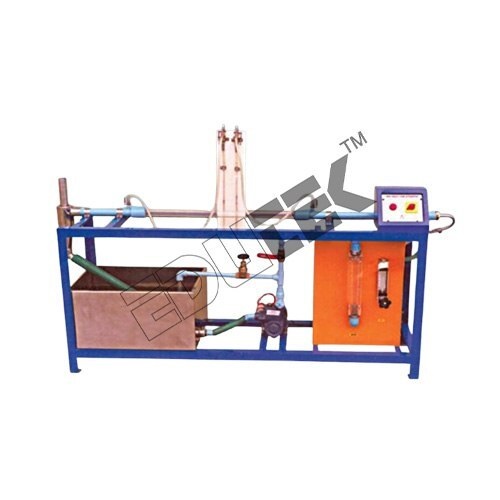

PRESSURE DROP IN TWO PHASE FLOW APPARATUS

Send Inquiry

Request To Call Back

PRESSURE DROP IN TWO PHASE FLOW APPARATUS

Get a Price/Quote

MOQ : 1 Piece

PRESSURE DROP IN TWO PHASE FLOW APPARATUS Specification

Display Type
Analog/Digital Manometer

Mounting Type
Table Top

Application
Engineering Testing Equipment

Frequency
50 Hz

Response Time
<3 seconds

Gas Pressure
0-2 bar (regulated)

Test Range
0-2 bar (fluid side)

Temperature
Ambient to 50°C

Product Type
PRESSURE DROP IN TWO PHASE FLOW APPARATUS

Features
Corrosion Resistant, Transparent Test Section, Easily Replaceable Specimens, Mobile Stand

Operating Voltage
230 V AC

Max Height
Approx. 1.2 m

Usage
Engineering Testing Equipment

Resolution
0.01 bar

Equipment Type
Laboratory Apparatus

Automation Grade
Semi-Automatic

Power Supply
230 V AC, 50 Hz

Number of Specimens
1 at a time

Accuracy
±1% F.S.

Specimen Size
Pipe ID: 14 mm, Length: 1.5 m

Port Size
Inlet/Outlet: 1/4 BSP

Humidity
Up to 90% RH (Non-condensing)

Measuring Range
0-2 bar (manometer)

Capacity
Up to 10 L/min flow rate

Machine Weight
Approx. 35 kg

Control Mode
Manual / Semi-Automatic

Mobility
Provided with Wheels for Easy Movement

Included Accessories
Flow Control Valve, Overflow Tank, Measuring Scale

Sample Connections
Standardized Quick Release Couplings

Data Logging
Optional PC Data Acquisition Interface

Safety
Pressure Relief Valve, Electrical Overload Protection

Manometer Type
U-tube and Digital, dual support

Test Section Material
Borosilicate Glass / PVC

Frame Material
Powder Coated Mild Steel

Test Fluid Types
Air-Water, Air-Oil (custom on request)

PRESSURE DROP IN TWO PHASE FLOW APPARATUS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About PRESSURE DROP IN TWO PHASE FLOW APPARATUS

Specification:

PRESSURE DROP-IN TWO-PHASE FLOW APPARATUS

Edutek are manufacturers, exportersand suppliers of Pressure Drop-in Two-Phase Flow that is manufactured fromhigh-grade raw materials.

Keeping an eye on current markettrends, our diligent workers put in sincere efforts to manufacture the offeredrange.

The provided product is uniquelydesigned in compliance with international quality standards, using optimumquality raw materials and latest technology.

Further, our valuable clients canavail this range in diverse specifications in compliance with details specifiedby clients.

Features:

Anti-corrosive

High strength

Fine finish

Test Section Material BorosilicateGlass

Water Circulation FHP Pump,Crompton/Sharp make

Flow Measurement Rotameters. 2 Nos.(one each for Water & Air).

Air Circulation by Compressed Air

Buffer Tank Material Stainless steel,Suitable Capacity with Safety valve and Pressure Gauge

Water Tank Material StainlessSteel/PVC, Capacity 60 Ltrs

Pr. Drop measurement DifferentialManometer

Separator Material Stainless steel,Compatible capacity

Piping GI and PVC

Control panel comprising of Standardmake on off switch, Mains Indicator fuse etc.

The whole set-up is well designed andarranged in a good quality painted structure.

High Accuracy and Versatility

This apparatus boasts an accurate measuring range from 0-2 bar, provided by dual manometer typesU-tube and digitalensuring reliable results. Compatible with both air-water and customizable air-oil test fluids, it adapts easily to varied research requirements. Its transparent borosilicate or PVC test sections allow unobstructed observation during experiments.

Enhanced Safety and Durability

With a corrosion-resistant, powder-coated mild steel frame and a pressure relief valve, the system is built for long-term laboratory use. Electrical overload protection further enhances operational safety, making this an ideal choice for educational and research institutions.

User-Friendly Design and Flexible Operation

Equipped with mobility wheels, standardized quick-release couplings, and a mobile, tabletop mounting system, the apparatus is designed for ease of movement and rapid setup. Optional data logging, manual/semi-automatic controls, and a comprehensive set of accessories enhance usability and cater to diverse testing scenarios.

FAQs of PRESSURE DROP IN TWO PHASE FLOW APPARATUS:

Q: How is the pressure drop measured in this two-phase flow apparatus?

A: The pressure drop is determined using high-precision U-tube and digital manometers with a measurement range of 0-2 bar and a resolution of 0.01 bar. The manometers monitor the pressure difference across the 1.5 m test section as the test fluids flow through.

Q: What test fluids can be used with this apparatus?

A: Standard options include air-water mixtures, but the apparatus can also accommodate air-oil systems upon request. This flexibility supports a wide variety of engineering research and educational applications.

Q: When should the pressure relief valve and overload protection be checked?

A: Before each operation, verify that the pressure relief valve and electrical overload protection are functioning. Regular inspection ensures safe operation and protects the equipment and users from overpressure or electrical faults.

Q: Where is this equipment typically used?

A: This apparatus is primarily used in engineering laboratories, research institutions, and educational settings across India and internationally. Its mobility and robust construction also make it suitable for both static and flexible laboratory environments.

Q: What is the process for setting up and operating the apparatus?

A: Connect the specimen using the quick release couplings, select the desired test fluid, and set up the manometer. Use the flow control valve to adjust the fluid rate up to 10 L/min. Data can optionally be recorded via the PC data acquisition system. Monitor pressure readings and observe through the transparent section.

Q: How does this apparatus benefit engineering testing?

A: The apparatus enables direct observation and accurate measurement of pressure losses in two-phase flows, supporting the validation of theoretical models and the development of new engineering solutions. Its adaptable features facilitate hands-on learning and advanced research.

Q: What makes the specimens in this apparatus easily replaceable?

A: The quick-release couplings and standardized connections allow for rapid installation and removal of pipe specimens, minimizing setup time and enabling sequential experiments with different test variables.
