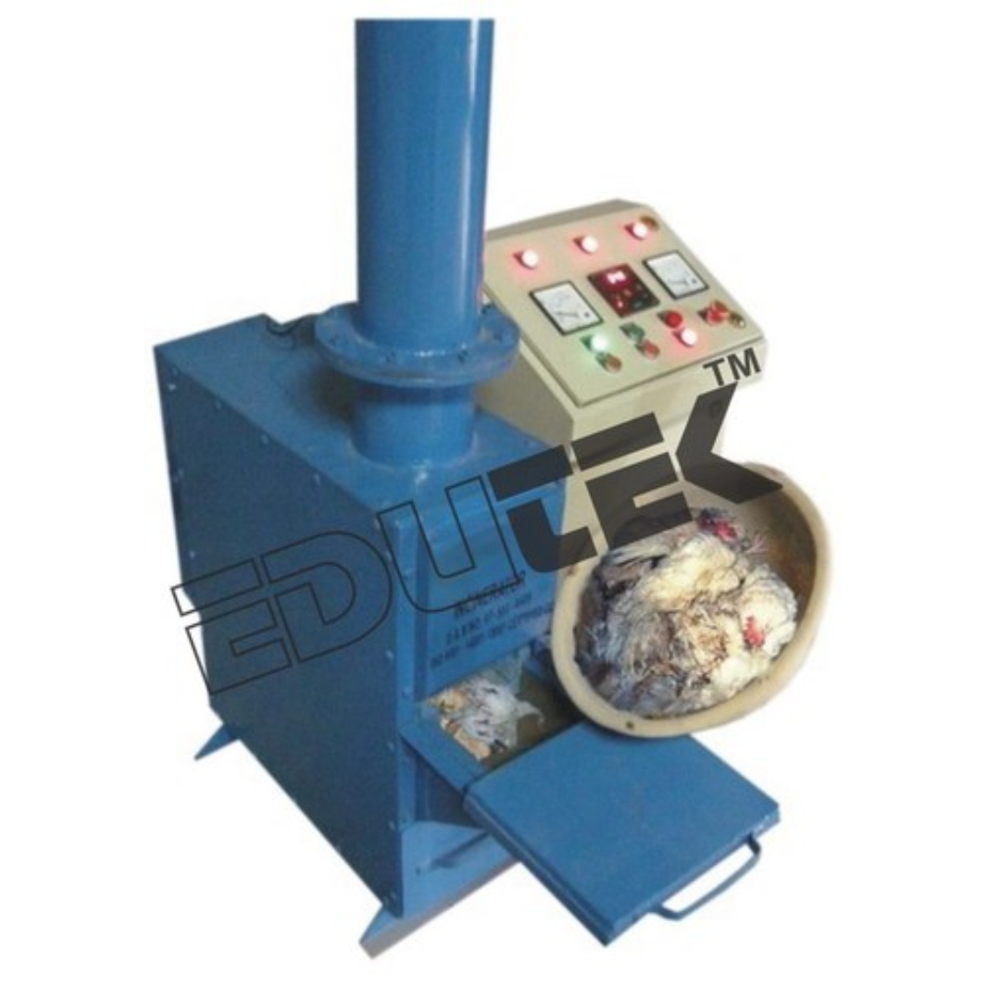

Poultry Incinerator

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Poultry Incinerator Specification

Automation Grade
Automatic

Model No

Frequency
50/60 Hz Hertz (HZ)

Feature
Highly Efficient

Core Components
Burner, Control Panel, Ceramic Insulation

Capacity
50-200 kg/batch Kg

Accuracy
100 % %

Power Source
Electric

Temperature Range
800 C to 1200 C Celsius (oC)

Measurement Range
Up to 200 kg per batch

Voltage
220/380 V Volt (v)

Equipment Materials
Mild Steel Body with Ceramic Lining

Type
Poultry Incinerator

Usage
Laboratory

Display Type
Digital Display

Dimension (L*W*H)
1500 mm x 1200 mm x 1600 mm Millimeter (mm)

Weight
350 kg Kilograms (kg)

About Poultry Incinerator

Poultry incinerators

Poultry incinerators to be used to incinerate dead birds like hen, unfertilized eggs, bird

dropping, egg shells etc.

It is commonly used in poultry farm, breeding, research centers etc.

It is widely used to destroy to birds (bird-flue) infection diseases, viruses and birds/egg waste

material, which will ensure zero infection and safety of birds from contracting any disease.

Our poultry incinerators manufactured using latest technology & machinery.

The chamber temperature is controlled by a digital temperature controller.

Incinerator with separate doors for waste burning chamber and for ash collecting tray and

chimney for emission of fumes. The incinerator reduces most combustible solid waste to nearly

2-3 percent by volume and upto 5% by weight.

Poultry incinerator are easy to install and extremely durable equipment. It is available in varied

capacity/sizes based on the requirement of Poultry farms.

Specification of Poultry incinerators

Fully Automatic
Temperature range: Min. 850 C (1562 F) Max. 1150 C (2102 F)
Power Requirement: Diesel, LPG/N-Gas, Electrical.
Loading Capacity: 5, 10, 20, 25, 50 Kg..
Duration to destroy: 20-30 minutes per batch.

Key Features:

Robust construction.
Virtually smoke and smell free with secondary burners.
High temperature refractory lining.
Quick heat up time and lesser operational time.
Easy installation
Trouble free operation and maintenance.
Designed to meet standards of Central Pollution Control Board (CPCB) with scrubber.
Ceramic insulation for external thermal protection.

Accessories:

Auto thermal cut off for safety of user.
Temperature and Timer display.
Tripper for emergency power shutdown.

AVAILABLE LOADING CAPACITY: 5, 10, 15, 20, 25, 50 Kg/Hr.

** Note:- Design and specification are subject to changed as an continuous improvement process with or without prior notice.

Advanced Emission Control Technology

The poultry incinerator is equipped with a multi-stage scrubber system that effectively minimizes air pollutants released during operation. This helps ensure compliance with environmental regulations, making it ideal for laboratory and industrial waste management. Robust ceramic lining and a mild steel body further enhance containment and safety, providing a responsible, environmentally friendly solution for poultry waste disposal.

Seamless Operation and Safety Assured

Designed for user convenience, the incinerator features digital display controls, automatic operation, and versatile chamber loading options. Safety is paramount, with integrated overheat protection and emergency shut-off functionalities. The floor-mounted structure ensures stability, and after-sales service is available to provide technical support as needed, maximizing uptime and operational reliability.

Flexible Power and Impressive Capacity

Operating on Diesel, LPG, or Electric power sources, the incinerator supports flexible installation requirements. It can efficiently handle up to 200 kg per batch, with an operating temperature range of 800C to 1200C, ensuring complete waste sterilization. Its continuous and batch operating modes cater to varying waste volumes, making it suitable for high-throughput laboratory or processing environments.

FAQs of Poultry Incinerator:

Q: How does the poultry incinerator ensure environmental and operator safety?

A: This incinerator incorporates a multi-stage scrubber system to effectively control emissions, reducing harmful gases released during operation. Operator safety is prioritized through integrated overheat protection, an emergency shut-off feature, and optional automatic loading, all contributing to a secure working environment.

Q: What is the process for loading and operating the incinerator?

A: Users can load the incinerator manually or opt for automatic loading to streamline operations. Once loaded, select your desired operation mode (continuous or batch) via the digital display. The integrated control panel allows for accurate temperature and process management throughout the incineration cycle.

Q: When is after-sales service available

A: After-sales service is available post-installation, covering technical support, maintenance, and any operational inquiries. Service can be requested at any time to ensure the unit functions optimally and safely.

Q: Where is the incinerator typically installed, and what are the space requirements?

A: The incinerator is designed for floor mounting and requires a stable, well-ventilated indoor or sheltered outdoor space. Its compact dimensions (1500 mm x 1200 mm x 1600 mm) suit laboratories and processing facilities. Proper room is needed to accommodate access for loading, maintenance, and exhaust flue placement (180 mm diameter).

Q: What are the primary benefits of using this poultry incinerator for laboratories?

A: This incinerator provides rapid, hygienic waste disposal with a high level of operational accuracy (100%). Its advanced emission control, multiple operation modes, and quick burn rate (up to 50 kg/hr) ensure efficiency while supporting strict laboratory safety and cleanliness standards.

Q: How is ash collected and managed during operation?

A: Ash generated from incineration is collected via an integrated bottom discharge system, which simplifies removal, minimizes downtime between cycles, and helps maintain a clean and efficient operation.
