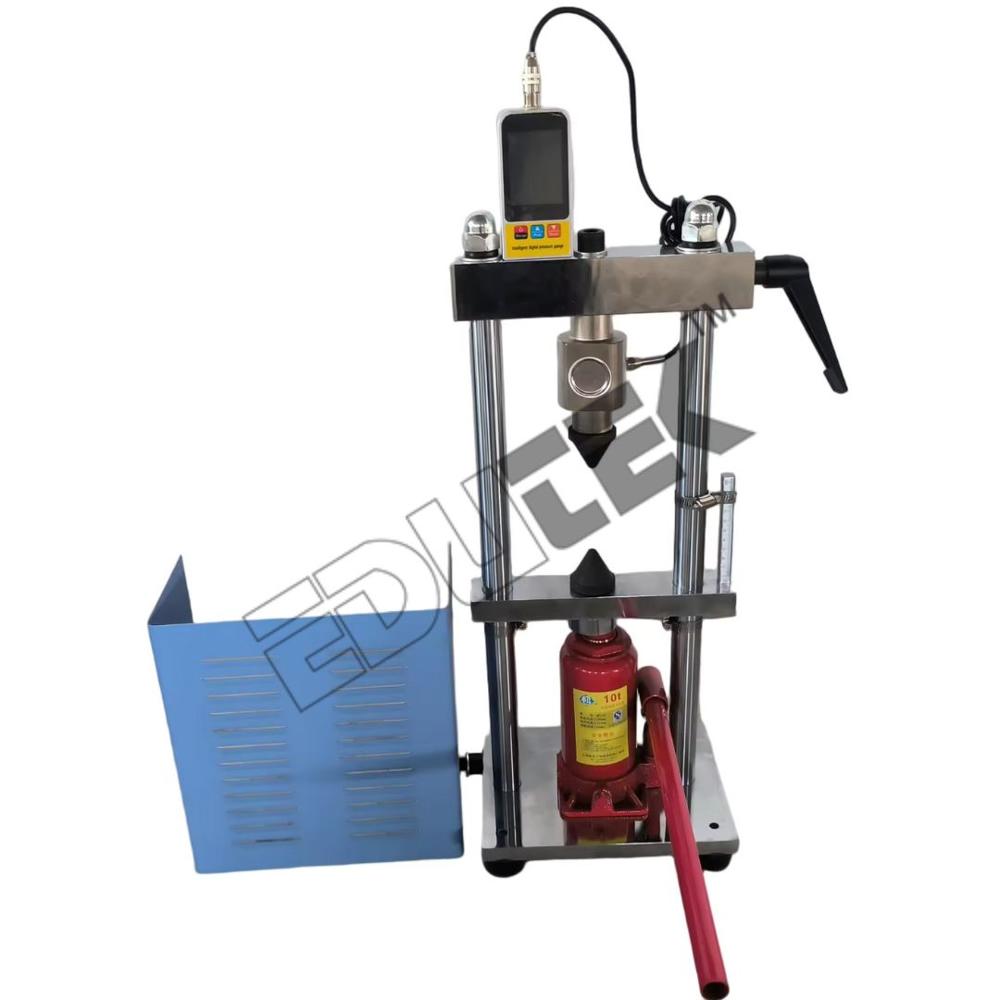

Send InquiryPoint Load Test Machine
Price 10000.0 INR/ Unit
MOQ : 1 Unit
Point Load Test Machine Specification
- Product Type
- Rock Testing Apparatus
- Voltage
- NA (Manual Equipment) Volt (v)
- Frequency
- 50 Hz Hertz (HZ)
- Accuracy
- 1% of Full Scale %
- Feature
- Portable Design, Quick Test Operation, Rugged Construction
- Color
- Blue/Red (Typical machine colors)
- Application
- Geotechnical Engineering / Mining / Quarrying
- Automation Grade
- Manual
- Material
- High Tensile Steel / Cast Iron
- Warranty
- 12 Months
- Measurement Range
- Upto 100 kN
- Capacity
- 100 kN (as typically supplied for standard geotechnical testing) Pcs/hr
- Operate Method
- Hydraulic Jack Screw Action
- Model No
- Usage
- Laboratory/Site Rock Classification
- Power Source
- Manual Operation
- Core Components
- Frame, Loading Handle, Dial Gauge, Sample Holders
- Classification
- Laboratory/Field Testing Equipment
- Equipment Materials
- Heavy Duty Mild Steel, Stainless Steel Fittings
- Type
- Point Load Apparatus
- Display Type
- Analog Dial Gauge
- Dimension (L*W*H)
- 550 mm x 300 mm x 400 mm Millimeter (mm)
- Weight
- 35 kg (Approx) Kilograms (kg)
- Jaw Opening
- Up to 150 mm
- Maintenance
- Minimal, Easy to Maintain
- Application
- Geotechnical Laboratories, Civil Engineering, Mining
- Test Sample Diameter
- Up to 100 mm
- Operation Time Per Test
- 2-3 Minutes
- Compliance Standards
- IS:8764 / ASTM D5731
- Hydraulic Jack Capacity
- 100 kN
- Included Accessories
- Carrying Case, Spacer Blocks, Calibration Certificate
- Loading Pad Material
- Hardened Steel
- Finishing
- Powder Coated
Point Load Test Machine Trade Information
- Minimum Order Quantity
- 1 Unit
- Payment Terms
- Cheque, Telegraphic Transfer (T/T)
- Sample Available
- Yes
- Main Export Market(s)
- Australia, Central America, North America, South America, Eastern Europe, Middle East, Africa, Asia, Western Europe
- Main Domestic Market
- All India
- Certifications
- AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.
About Point Load Test Machine
Point Load Test Machine
Description of Point Load Test Machine :
Point load Test Machine which can be used in both the laboratory or in situ to determine the rock strength index of rock samples or cores. The values required for the calculation of the rock strength index are failure load and distance between the conical points.
Technical Specification :
|
Maximum Work Pressure |
60 MPA |
|
Piston Diameter |
35 mm |
|
Piston Area |
9.60 cm Square |
|
Dimension |
380À”300À”620 mm |
|
Weight |
85 Kg |
Rugged and Portable Design
Engineered with heavy-duty mild steel and finished with a powder-coated layer, this apparatus is built for demanding environments. Its portable configuration and convenient carrying case enable straightforward transport and setup across sites, assisting geotechnical professionals in both laboratory and on-site applications.
Efficient Rock Strength Testing
Perform fast, reliable point load tests within just 23 minutes per sample. The hydraulic jack and hardened steel loading pads ensure consistent application of force up to 100 kN, while the included calibration certificate certifies test accuracy to international standards (IS:8764 / ASTM D5731).
Simple Manual Operation and Maintenance
With its manual operation and analog dial gauge, the Point Load Test Machine demands no electricity or complex setup. Maintenance is minimal, thanks to sturdy materials and straightforward design, enabling professionals to focus on sample analysis rather than equipment upkeep.
FAQs of Point Load Test Machine:
Q: How do I operate the Point Load Test Machine for a standard rock strength test?
A: Begin by securing your rock sample (up to 100 mm diameter) between the hardened steel loading pads. Adjust the jaw opening (up to 150 mm) as needed using the loading handle. Gradually apply force with the hydraulic jack until failure occurs, noting the peak load on the analog dial gauge. Each test typically takes 23 minutes.Q: What types of samples and testing applications is this device suitable for?
A: This machine is ideal for geotechnical laboratories, civil engineering, and mining applications. It accommodates cylindrical or irregular rock core samples up to 100 mm in diameter for quick determination of point load strength, commonly used in geological investigations and classification.Q: When and where should I use the Point Load Test Machine?
A: Use this device during field or laboratory testing phases of geotechnical investigations, site characterization, and mining explorations. Its portable design and carrying case make it practical for on-site evaluations as well as controlled laboratory environments.Q: What accessories are included with the machine?
A: The Point Load Test Machine comes supplied with spacer blocks, a durable carrying case for portability, and a calibration certificate ensuring measurement reliability and compliance with IS:8764 / ASTM D5731.Q: What are the benefits of this machines manual operation and construction materials?
A: Manual operation means no need for external power sources, ensuring portability and flexibility. The use of heavy-duty mild steel and stainless steel fittings, along with a powder-coated finish, delivers long-lasting durability and minimal maintenance requirements.Q: How accurate are the measurements, and how is calibration ensured?
A: The analog dial gauge ensures measurement accuracy within 1% of full scale. Each unit includes a calibration certificate verifying compliance with relevant standards, guaranteeing reliable and precise test results.
