Pocket Penetrometer

Price 600.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Pocket Penetrometer Specification

Automation Grade
Manual

Model No

Warranty
1 Year

Product Type
Geotechnical Field Tester / Strength Indicator

Core Components
Spring Scale Plunger

Feature
Portable and Compact Design

Measurement Range
0 to 4.5 kg/cm

Capacity
4.5 kg/cm Kg

Operate Method
Manual Push: The tip is pushed into the soil up to a reference mark; the calibrated spring measures the peak force, which is read directly as unconfined compressive strength

Accuracy
0.01 kg/cm %

Material
Metal, Plastic

Application
Civil Engineering, Geotechnical Labs, Construction Sites

Color
Select (Typically Silver/Black/Grey)

Temperature Range
Standard room temperature usage Celsius (oC)

Power Source
Manual operation (no external power required)

Usage
Quick consistency checks, estimating load-bearing capacity for shallow foundations, and logging borehole samples

Classification
Geotechnical Engineering / Site Investigation

Equipment Materials
Stainless Steel Plastic

Type
Pocket Penetrometer

Display Type
Analog

Dimension (L*W*H)
15 x 3 x 3 cm (approx.) Centimeter (cm)

Weight
200 grams Grams (g)

About Pocket Penetrometer

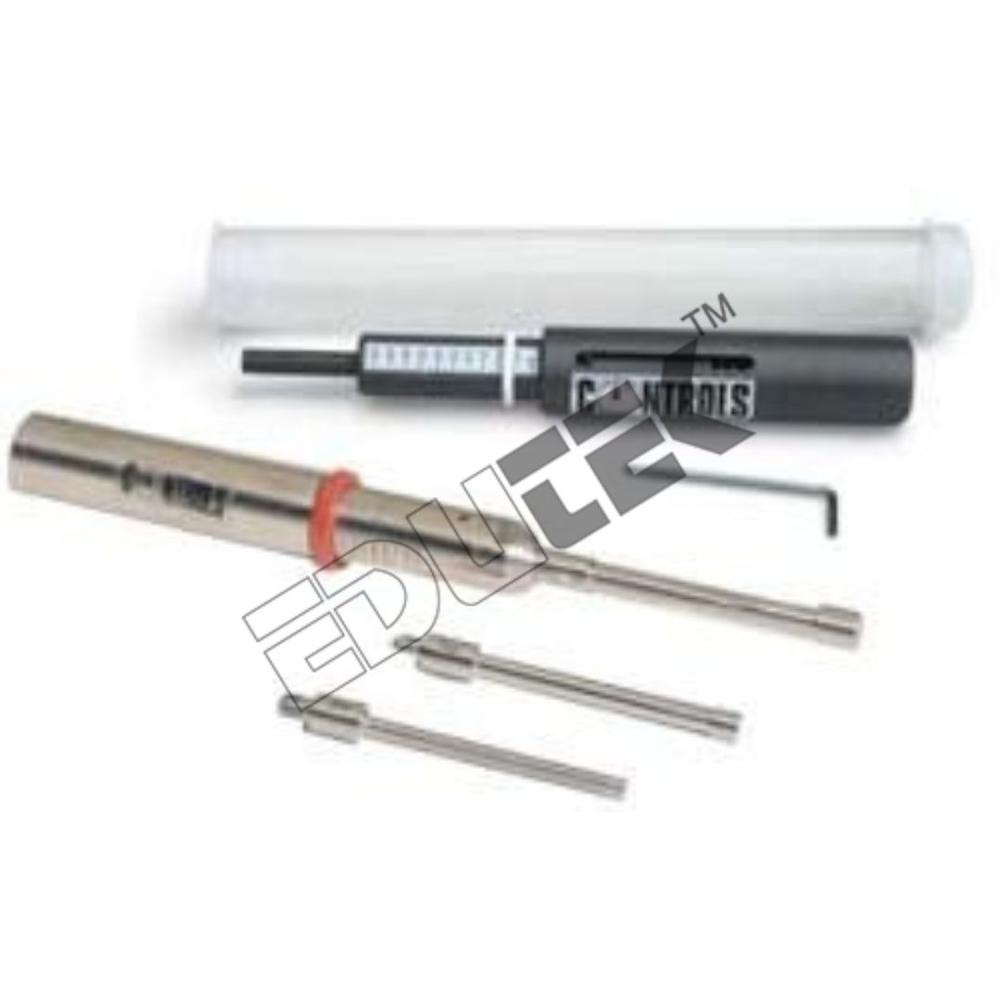

Pocket Penetrometer

This instrument is used to estimate approximate unconfined compressive strength and the estimation to shear strength of soil Cohesive soils can also be classified in terms of consistency using this Penetrometer.

This is a handy and convenient instrument.

Specification

It consists of a light weight barrel assembly with a polished and ground steel loading piston plunger.

A direct reading scale is engraved on the piston barrel and indicates load in kg./sq. cm.

A maximum load indicator ring is provided on the penetration plunger.

The calibrated spring is heat treated and plated for rust resistance.

The barrel diameter is 20mm and the length 150mm.

Supplied with carrying case.
