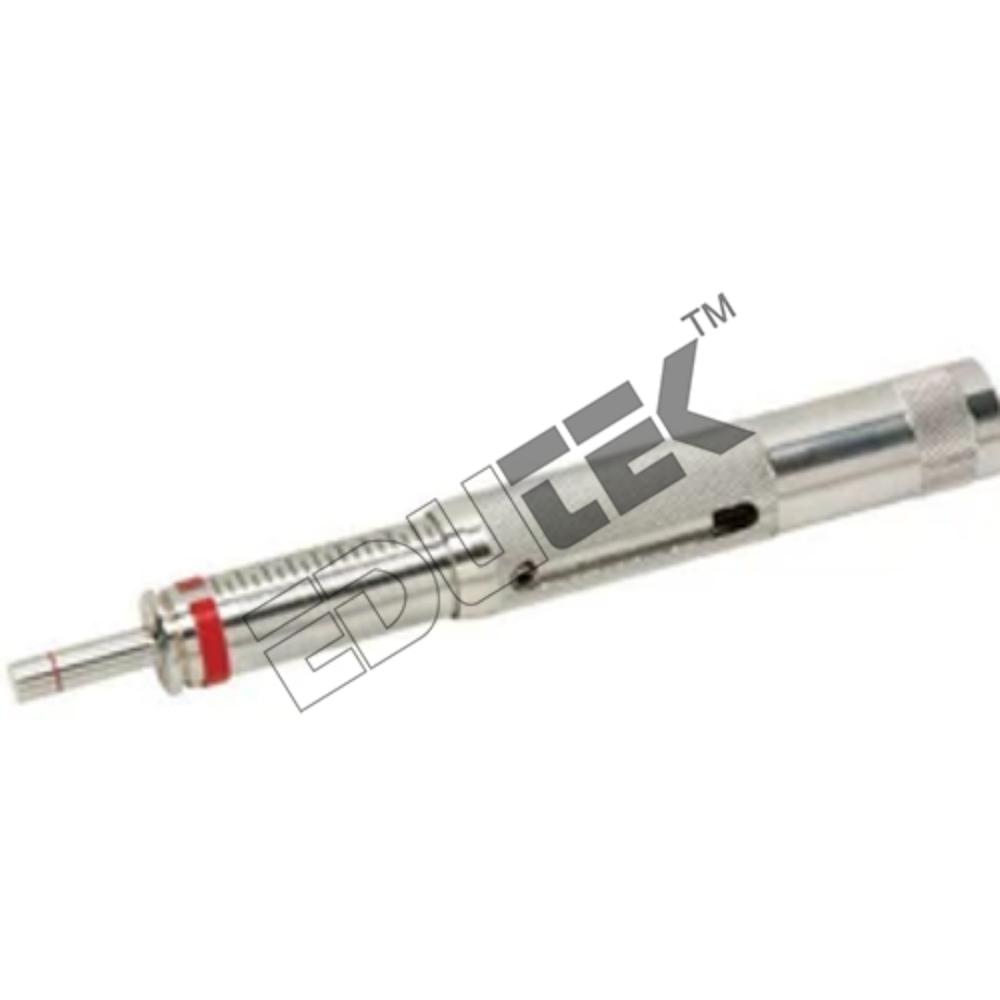

Pocket Concrete Penetrometer

Get a Price/Quote

MOQ : 1 Unit

Pocket Concrete Penetrometer Specification

Product Type
Concrete Fresh State Tester

Core Components
Penetration Plunger, Dial Gauge

Automation Grade
Manual

Usage
Used to determine the right time for finishing operations

Temperature Range
0 C to 60 C Celsius (oC)

Operate Method
Manual Pressure: The rod is pushed into the concrete mortar up to the calibration mark; the sliding ring indicates the resistance on the scale

Color
Chrome / Silver

Power Source
Manual (Non-Powered)

Model No

Classification
Civil Engineering / Concrete Quality Control

Capacity
100 kg/cm Kg

Material
High-grade Stainless Steel

Measurement Range
0 to 100 kg/cm

Feature
Portable, Pocket Sized, Direct Reading

Application
On-site verification of concrete setting behavior

Accuracy
1 kg/cm gm

Equipment Materials
Nickel Plated Steel and Aluminum

Type
Handheld Penetrometer

Display Type
Analog Dial

Dimension (L*W*H)
165 mm x 28 mm x 28 mm Millimeter (mm)

Weight
Approx. 400 grams Grams (g)

Ideal For
On-site concrete testing and quality control

Storage Conditions
Store in dry conditions, avoid direct sunlight

Operating Principle
Spring Compression

Dial Graduation
2.5 kg/cm2

Safety Feature
Mechanical Overload Protection

Plunger Diameter
8 mm

Compliance
IS: 2720 (Part 5)

Body Finish
Corrosion Resistant

Application
Quick estimation of concrete strength

Package Includes
Penetrometer, Carrying Case, Instruction Manual

Pocket Concrete Penetrometer Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Letter of Credit (L/C)

Delivery Time
2 Week

Sample Available
Yes

Sample Policy
If order is confirmed we will reimburse the sample cost

Main Export Market(s)
Asia, North America, Australia, Central America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India, South India, Central India, North India, East India

Certifications
AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.

About Pocket Concrete Penetrometer

Pocket Concrete Penetrometer
For fast evaluation of the initial setting of concrete. It can be used on light weight concrete, special roof deck mixes and concrete additives.

Specification :
Consists of a needle having face area 3/10 sq. cm. and graduated at a distance of 25cm. The needles point is an integral part of barrel which houses a calibrated spring. The spring is confined in a sleeve. The resistance offered by the concrete mortar is shown on the direct reading scale with a marker ring which holds its position when released. 2 Scale range is 0-50kg/cm2 when the penetration resistance reaches a 2 value of 35kg /cm2 the concrete is assumed initially set. Supplied complete in carrying case.

Precision On-Site Concrete Testing
Utilize the Pocket Concrete Penetrometer to quickly assess concrete strength directly at your construction site. Its spring-driven mechanism and clear analog dial enable straightforward, accurate readings, making it an essential tool for engineers, inspectors, and quality controllers focused on reliable, immediate results in varying field conditions.

Built for Durability and Ease
The PCP-100s nickel-plated steel and aluminum construction offers excellent resistance against corrosion, ensuring prolonged lifespan even with regular field use. Compact and lightweight at approximately 400 grams, the penetrometer fits conveniently in your pocket or included carrying case, providing both portability and protection during transportation.

FAQs of Pocket Concrete Penetrometer:

Q: How does the Pocket Concrete Penetrometer measure concrete strength on-site?

A: It operates on a spring compression principle, where the 8 mm diameter plunger is pressed into the concrete surface. The analog dial displays the peak force required to penetrate, allowing you to estimate the concretes strength directly and instantly.

Q: What are the main benefits of using this handheld penetrometer in the field?

A: Its primary benefits include quick, direct readings without external power, ease of use, portability, and compliance with IS: 2720 (Part 5). Additionally, the mechanical overload protection feature ensures instrument safety during testing.

Q: When should I use the Pocket Concrete Penetrometer during a construction project?

A: It is best used for quick strength assessments at various stages of concrete curing or when immediate quality control decisions are needed before proceeding with subsequent construction steps.

Q: Where should the penetrometer be stored when not in use?

A: Store the penetrometer in dry environments, away from direct sunlight, to prevent moisture damage and preserve the corrosion-resistant finish. Using the provided carrying case is highly recommended.

Q: What is included in the package with the Pocket Concrete Penetrometer?

A: The package includes the penetrometer itself, a sturdy carrying case, and a comprehensive instruction manual to guide you through set-up, usage, and maintenance procedures.

Q: How can I ensure accurate results during concrete strength testing?

A: For precise measurements, ensure the device is positioned perpendicular to the concrete surface, apply consistent pressure, and read the analog dial immediately after each penetration. Avoid testing on rough or fractured areas for best results.
