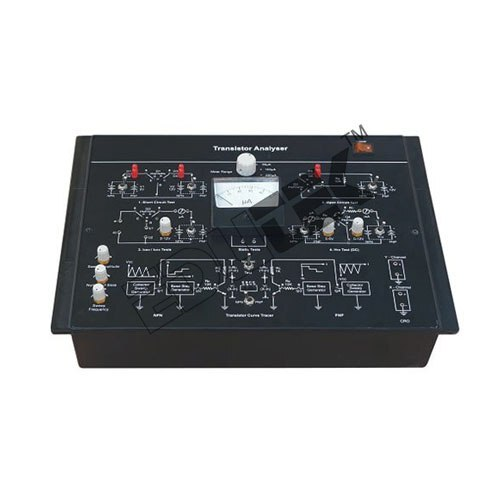

Send InquiryPNP & NPN TRANSISTOR TESTER
MOQ : 1 Piece
PNP & NPN TRANSISTOR TESTER Specification
- Usage
- Semiconductor testing
- Resolution
- Discrete ON/OFF
- Thermal Conductivity
- Standard PCB level
- Operating Temperature
- 0C to 50C
- Power Supply
- External DC supply
- Output
- Visual indication and measurement
- Input
- Transistors (PNP & NPN types)
- Power Source
- DC powered
- Display Type
- LED indicator
- Components
- Test socket, indicator LEDs, main PCB, enclosure
- Charging Voltage
- 12 V DC
- Interface
- Direct insertion socket
- Response Time
- Instant (< 1 sec)
- Features
- Easy operation, reliable testing, clear LED indication
- IP Rating
- IP21
- Product Type
- Electronic Tester
- Application
- Laboratory, Service Centers
- Rated Voltage
- 12 V DC
- Supply Voltage
- 12 V DC
- Size
- Handheld, compact
- Dimension (L*W*H)
- 14 cm x 8 cm x 3.5 cm
- Function
- Testing PNP & NPN transistors
- Color
- Blue and white
- Weight
- Approx. 180 grams
- Capacity
- Single transistor at a time
- Thickness
- 3.5 cm
- Current Rating
- Up to 2A test current
- Frequency
- DC Testing
- Testing Range
- Supports small signal to power transistors
- Ambient Humidity
- Max 80% RH
- Included Accessories
- Instruction manual
- Safety Protection
- Short-circuit protection
- LED Colors
- Red and green
- Body Material
- High-grade ABS plastic enclosure
- Storage Temperature
- -10°C to 70°C
- Compatibility
- Compatible with TO-92, TO-220, TO-126 packages
- Test Indication
- Separate LED for each terminal
- Mounting Type
- Desktop / Portable
PNP & NPN TRANSISTOR TESTER Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Packaging Details
- Carton Box, Export Quality also Available
- Main Export Market(s)
- Asia, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001, CE
About PNP & NPN TRANSISTOR TESTER
Specification:
PNP & NPN TRANSISTOR TESTER
Step Frequency: 500 Hz
4 KHz Sweep Frequency: 500 Hz
4 KHz Collector sweep amplitude: 0
20 V No. of steps: 0
16 steps (selectable) Transistor Types: Only small plastic packages having power ratings below 500 Mw.
On board micro-ammeter: 0
300 uA (moving coil type) Collector-base Supply: 12 V max
Emitter-base Supply: 5 V max
Test Points: 16 nos.
Advanced Visual Indication System
Equipped with distinct red and green LEDs for each terminal, this transistor tester ensures immediate and clear feedback during testing. The separate indicators reduce ambiguity and facilitate quick diagnostics, enhancing reliability for users in laboratories and service centers. The LED system is engineered for discrete ON/OFF resolution, guaranteeing precise identification of device status.
Robust Safety and Durability Features
Housed in a durable ABS plastic body, the tester offers short-circuit protection and is rated for ambient humidity up to 80% RH. With an IP21 rating, it is suited for professional environments where reliability and user safety are paramount. The standard PCB-level thermal conductivity and sturdy enclosure maximize longevity under regular use.
Versatile and Easy Operation
The device accommodates a broad testing range, supporting both small signal and power transistors compatible with TO-92, TO-220, and TO-126 types. Ergonomic design and direct insertion socket interface simplify the testing workflow, enabling quick setup and consistent results. The compact, lightweight architecture makes portability and desktop usage effortless.
FAQs of PNP & NPN TRANSISTOR TESTER:
Q: How do I use the PNP & NPN Transistor Tester to check transistors?
A: To test a transistor, insert the device into the test socket following the guide in the instruction manual. Power on the tester using a 12 V DC supply, and observe the corresponding LED indication for each terminal. The red and green LEDs will confirm the functionality and correct orientation of the transistor.Q: What types of transistors are compatible with this tester?
A: This tester is compatible with PNP and NPN transistors in TO-92, TO-220, and TO-126 packages. It supports both small signal and power transistors, making it versatile for various semiconductor testing applications.Q: When is the optimal environment to use this tester?
A: For best performance, operate the tester in environments with temperatures between 0C and 50C and humidity not exceeding 80% RH. The durable ABS enclosure and IP21 rating ensure reliable operation in laboratory, service center, and field settings.Q: Where can I use this transistor tester?
A: The device is designed for use in electronics laboratories, service centers, academic research facilities, and manufacturing settings. Its portable and compact nature also allows for convenient field testing and on-site diagnostics.Q: What safety features are included to protect the tester and user?
A: The tester includes built-in short-circuit protection and is housed within an ABS enclosure, which safeguards both the device and user. The IP21 protection rating also aids in maintaining safety against accidental exposure to moisture and particles.Q: What are the benefits of using this transistor tester for semiconductor analysis?
A: Key benefits include easy operation, reliable and instant (under one second) visual feedback, compatibility with multiple transistor packages, and robust protection features. These attributes make it an efficient solution for precise, hands-on electronic diagnostics.
