PNEUMATIC TRAINING EQUIPMENT SIZE

Name: PNEUMATIC TRAINING EQUIPMENT SIZE
Brand: EDUTEK INSTRUMENTATION
Price: 10000.0 INR
Availability: InStock

Price 10000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PNEUMATIC TRAINING EQUIPMENT SIZE Specification

Measuring Range
Adjustable

Gas Pressure
0.4 - 0.6 MPa

Accuracy
±0.5% FS

Display Type
Digital (LCD)

Automation Grade
Semi-automatic

Response Time
< 0.5 sec

Test Range
0-1000 N

Temperature
5°C to 40°C

Power Supply
220V AC, 50Hz

Max Height
1100 mm

Interface Type
Analog/Digital

Features
Compact design, Modular components, Easy assembly

Mounting Type
Bench Top

Port Size
1/4 inch

Equipment Type
Pneumatic Training Equipment

Application
Educational and Laboratory Training

Resolution
0.01 mm

Number of Specimens
Up to 2 simultaneously

Specimen Size
Up to 300 x 20 x 25 mm

Operating Voltage
220V

Humidity
Max 85% RH (non-condensing)

Frequency
50 Hz

Usage
Institutional Training, Skill Development

Capacity
Standard 10 liters/min

Machine Weight
Approx. 60 kg

Test Speed
5-100 mm/s (adjustable)

Test Width
Up to 300 mm

Test Stroke
Max. 500 mm

Control Mode
Manual and Programmable (PLC based)

Frame Material
Powder Coated Steel

Air Compressor Requirement
External (not included)

Quick Coupler
Provided for fast connection

System Pressure Indicator
Included

Noise Level
< 60 dB(A)

Filter-Regulator-Lubricator Unit
Yes, included

Color
Blue/Grey

Safety Enclosure
Acrylic transparent panel

Packaging Type
Wooden Box

Cylinder Type
Double Acting Pneumatic Cylinder

Pneumatic Valves
Directional control and flow control valves included

PNEUMATIC TRAINING EQUIPMENT SIZE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About PNEUMATIC TRAINING EQUIPMENT SIZE

PNEUMATIC TRAINING EQUIPMENT

SIZE

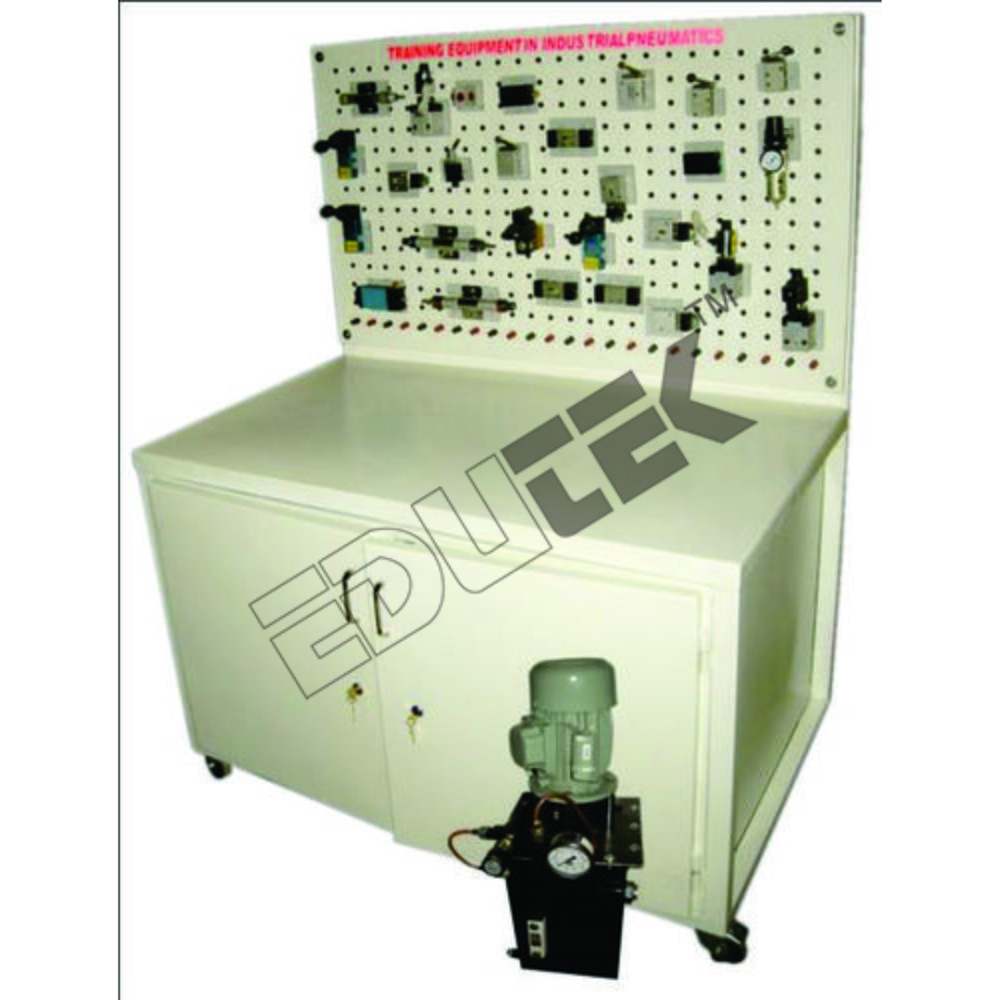

29in X 34 X 30 (730 X 860X760mm)
175glbs. (85kg)
Optional Base
Cabinet : ( 760 X 910 X 1620mm)
Locking storage compartment
Aluminum t-slotted horizontal mounting surface

Compact and Modular Design

This pneumatic training equipment features a compact footprint with modular components, enabling straightforward assembly and easy integration into existing educational or laboratory setups. Powder-coated steel ensures durability, while an acrylic safety enclosure guarantees safe observation and hands-on training.

Versatile and Adjustable Testing

Test speeds ranging from 5 to 100 mm/s, a maximum stroke of 500 mm, and an adjustable measuring range make this equipment suitable for an array of experiments related to pneumatics. It can test up to two specimens simultaneously, each with dimensions up to 300 x 20 x 25 mm.

Precision Monitoring and Control

The system includes a digital LCD for clear readouts, a resolution of 0.01 mm, response time under 0.5 seconds, and 0.5% FS accuracy. With both manual and programmable (PLC-based) operation, users can simulate various typical industrial scenarios for skill development.

FAQs of PNEUMATIC TRAINING EQUIPMENT SIZE:

Q: How do you operate the Pneumatic Training Equipment?

A: The equipment allows for both manual operation and programmable control via PLC. Users can set parameters such as test speed, width, and stroke, and monitor results using the digital LCD display. Quick couplers make air line connections straightforward, while the pressure and flow can be managed with integrated valves.

Q: What are the primary educational applications of this equipment?

A: Primarily, this pneumatic trainer is used for educational purposes and laboratory training. It helps students and trainees understand pneumatic principles, learn to assemble and troubleshoot pneumatic circuits, and gain practical skills relevant to industrial automation.

Q: When is an external air compressor required?

A: An external air compressor is necessary for operation, as the unit requires a compressed air supply of 0.4 to 0.6 MPa. The compressor is not included with the unit and should meet the specified airflow and pressure requirements for optimal performance.

Q: Where can the equipment be installed or used?

A: Ideal locations include educational institutions, technical labs, training centers, and workshops focused on skill development in automation. Its bench-top, compact construction allows for flexible installation in varied settings where pneumatic training is needed.

Q: What is the process for connecting and starting the training system?

A: First, securely place the equipment on a bench and connect it to the external air compressor via the quick coupler. Ensure proper wiring to the 220V AC power supply. Set up the desired test parameters using the control interface, insert the specimens, and initiate the test cycle either manually or via PLC.

Q: Which benefits does the modular design offer?

A: The modular build enables easy assembly, maintenance, and adaptability for a range of educational modules. It supports rapid reconfiguration and component replacement, making it convenient for repeated instructional use and varying training objectives.
