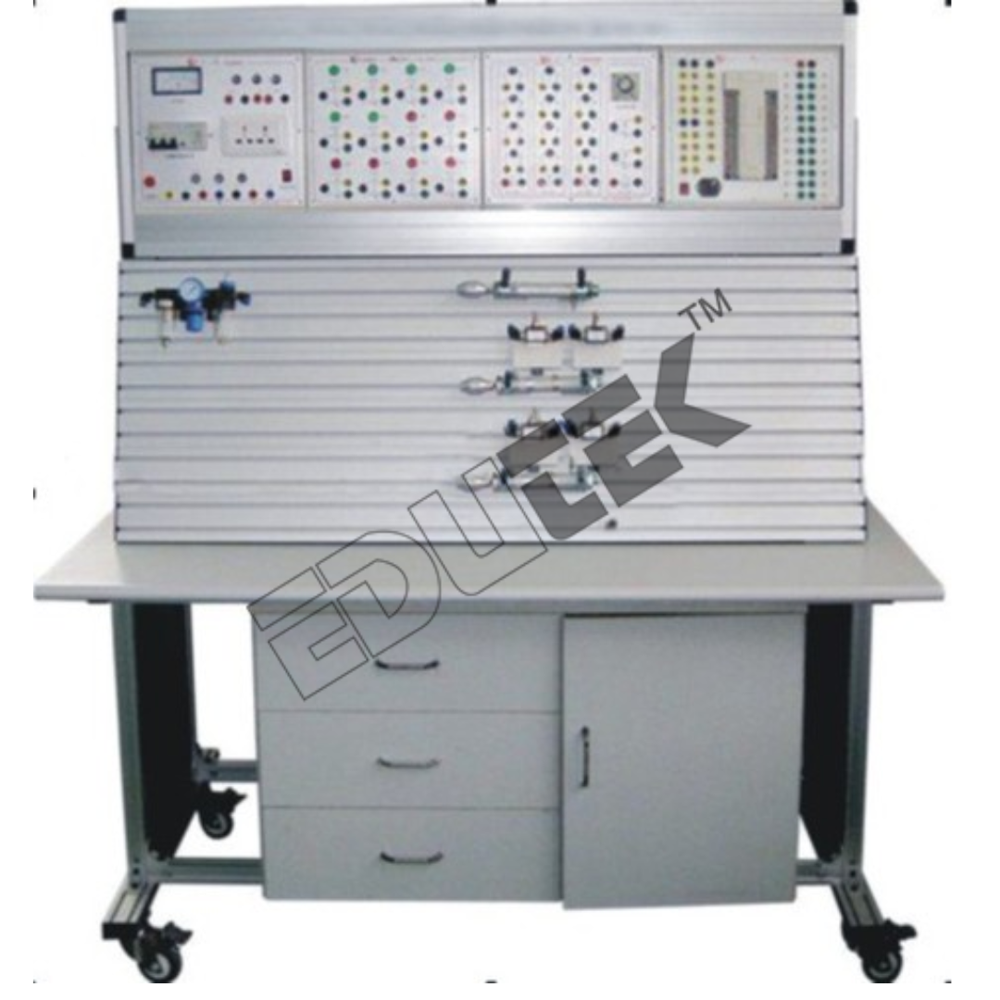

Pneumatic Technology Trainer

Get a Price/Quote

Pneumatic Technology Trainer Specification

Accuracy
100 %

Measurement Range
0 - 10 bar

Power Source
Electric

Model No
PTT-3053

Feature
Highly Efficient

Temperature Range
Ambient

Capacity
Single or multiple workstation

Frequency
50 Hz

Core Components
Compressor, Pressure Gauges, Pneumatic Actuators, Valves

Automation Grade
Manual/Semi-Automatic

Voltage
230 V AC

Equipment Materials
Aluminium Profile & Powder Coated Sheet

Type
Pneumatic Training System

Usage
Laboratory

Display Type
Analog / Digital

Dimension (L*W*H)
1200 mm x 800 mm x 600 mm

Weight
Approx. 40-50 kg

About Pneumatic Technology Trainer

PNEUMATIC TECHNOLOGY TRAINER DOUBLE FACE

This device is composed of control unit, high quality pneumatic components, pollution

dealing unit, filter unit, specific lubrication unit, pressure measurement unit, air

compressor unit, aluminium alloy mounting panel (double face), different type

pneumatic joints, tool kits, pneumatic simulation software and so on. It can be used for

various pneumatic transmission demonstrations, pneumatic transmission circuit

training, which covers the objects of pressure, speed control, direction control and so

on. By the operation of this device, students can understand the structure and function

of various pneumatic components and circuit, the working principle of air source part,

the assembly and disassembly of each component and so on.

EXPERIMENTS OF PNEUMATIC TECHNOLOGY TRAINER

Understanding of pneumatic components structure, symbols and functions
Reversing loop of push valve controlled single cylinder
Speed control loop of single cylinder
Manual controlled reversing loop of direction valve
Pneumatic controlled reversing loop of direction valve
Speed control loop of double cylinder
Speed control loop of throttle valve
Sequential loop of two cylinder
Reversing loop of gate valve controlled single cylinder
Remote controlled decompression loop
Push valve controlled double cylinder loop
Relief valve controlled relief loop
Two hands controlled single cylinder reversing loop
Disassembly and assembly of direction valve, Double valve, one way valve, roller valve, relief valve, push valve, gate valve

TECHNICAL PARAMETERS

Power: 220V, 50Hz, output DC24V
Operating ambient temperature: -5°C~40°C
Operating humidity: less than 90% (40°C)
Safety protection: It adopts insulated safety sockets, sheathed cables and wires, with the leakage protection function, when short
circuit happens, it will cut off the power automatically, safety in accordance with international standard.

Pollution dealing unit: It is designed with a specific structure in accordance with international environmental standard, all the
pneumatic valves could be connected with this to avoid and decrease the environmental pollution produced by the pneumatic
system.

Comprehensive Training Modules

The Pneumatic Technology Trainer includes a complete set of modules covering foundational, advanced, and application circuits. This structure enables students and professionals to progress from basic concepts to more complex pneumatic systems, reinforcing theoretical knowledge with real-world applications through over 20 guided experiments.

Robust Safety and High Efficiency

Equipped with critical safety features like an emergency stop and overload protection, this trainer prioritizes user well-being during operation. Constructed from aluminium profiles and powder-coated sheets, the system ensures durability and accuracy, providing reliable performance for all laboratory applications.

Versatile Laboratory Usage

With the capability for single or multiple workstations and compatibility with both analog and digital displays, the trainer adapts effortlessly to different instructional settings. The spacious working surface and inclusive tool kit allow for flexible setups and a hands-on approach to pneumatic system analysis and troubleshooting.

FAQs of Pneumatic Technology Trainer :

Q: How is the Pneumatic Technology Trainer PTT-3053 installed and set up in the laboratory?

A: Setting up the trainer is straightforward due to its tabletop mounting design. Secure the unit on a stable lab bench, connect it to a 230 V AC power source, and arrange the provided accessories, including pressure gates, tubes, fastening components, and tool kit, for immediate use.

Q: What types of training modules and experiments does this system offer?

A: The system provides fundamental, advanced, and application circuit modules. With over 20 experiments included, users can explore various pneumatic concepts, system assembly, troubleshooting, and process automation, simulating real-world industrial scenarios.

Q: When should the emergency stop or overload protection features be used?

A: The emergency stop should be activated immediately if any unsafe condition or malfunction occurs during an experiment or demonstration. Overload protection automatically safeguards equipment and users if system parameters exceed recommended limits.

Q: Where can this pneumatic trainer be utilized effectively?

A: It is ideally used in educational laboratories, vocational training centers, and research institutions. Its compact yet durable build allows for easy integration into most standard lab environments with ambient temperature operation.

Q: What is the measurement and operating range of this trainer?

A: The system operates at a supply pressure of up to 8 Bar and measures pressure from 0 to 10 Bar, making it suitable for a wide span of laboratory pneumatic applications. Both analog and digital displays are available for precise monitoring.

Q: How does using this trainer benefit laboratory users and students?

A: Learners gain practical, hands-on experience in pneumatic technology, boosting their understanding of both basic and advanced principles. The trainers accuracy and efficiency ensure that results are reliable, while safety features allow for secure experimentation.

Q: What standards does the Pneumatic Technology Trainer comply with?

A: This product meets ISI/IEC standards, provided with a detailed instruction manual for safe and reliable operation, making it suitable for regulated educational and industrial settings.
