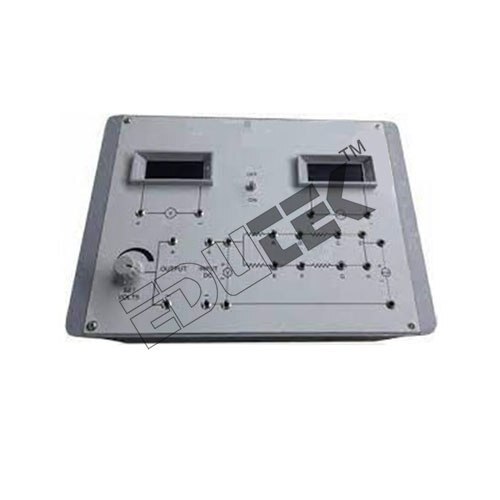

PN / ZENER DIODE / LED CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL

Name: PN / ZENER DIODE / LED CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL
Brand: EDUTEK INSTRUMENTATION
Price: 1700.0 INR
Availability: InStock

Price 1700.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PN / ZENER DIODE / LED CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL Specification

Output
Output voltage (Regulated): 0-3V/30V DC (Selectable)

Features
Housed in PVC cabinet, symbol diagram printed, connections of various components (PN Junction Diode 0A 79, Zener diode 5.1V, LED, all important outputs & test points brought at Bakelite front panel.

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Product Type
PN / ZENER DIODE / LED CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Function
PN / ZENER DIODE / LED CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL

Warranty
1 Year

Display Type
Meters (Digital): 65mm round 0-3V/30V DC (Dual Range), 0-100uA / 10mA DC (Dual Range)

PN / ZENER DIODE / LED CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Africa, Middle East

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About PN / ZENER DIODE / LED CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL

Specification:

PN / ZENER DIODE / LED CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL

Output voltage (Regulated): 0-3V/30V DC (Selectable)

Meters (Digital): 65mm round 0-3V/30V DC (Dual Range), 0-100uA / 10mA DC (Dual Range)

Housed in PVC cabinet, symbol diagram printed, connections of various components (PN Junction Diode 0A 79, Zener diode 5.1V, LED, all important outputs & test points brought at Bakelite front panel.

Reliable Analysis for Semiconductor Devices

This apparatus is designed to study and analyze the characteristics of PN junction diodes, Zener diodes, and LEDs. By providing selectable regulated DC outputs and dual-range digital displays, it streamlines experimental setup and eases the interpretation of results, making it an essential tool for electronics engineering students and professionals alike.

User-Friendly and Durable Construction

Built with an aluminum panel, a resilient PVC cabinet, and clearly labeled symbol diagrams, this instrument ensures durability and ease of use. The Bakelite front panel brings all outputs and test points to the front, enabling swift connection and accurate measurements during practical sessions.

FAQ's of PN / ZENER DIODE / LED CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL:

Q: How do I operate the PN / Zener Diode / LED Characteristics Apparatus?

A: To operate the apparatus, connect the component under test (PN junction diode, Zener diode, or LED) to the appropriate terminals. Select the desired output voltage range (0-3V or 0-30V DC) using the provided controls, and monitor real-time voltage and current readings on the dual-range digital meters.

Q: What measurements can be performed with this apparatus?

A: The device allows for precise measurement of voltage and current characteristics for PN junction diodes, Zener diodes, and LEDs. The digital meters display voltage in the ranges of 0-3V and 0-30V, and current in 0-100A and 10mA, suitable for detailed characteristic curve plotting.

Q: When is this apparatus typically used in an electronics lab?

A: It is commonly used during practical laboratory sessions in engineering courses to analyze semiconductor behavior, as well as in research or quality control environments where diode and LED performance needs detailed assessment.

Q: Where are all test points and component connections located?

A: All important output and test points, including those for the diodes and LEDs under test, are conveniently brought out to the Bakelite front panel. This design facilitates easy and safe connections during experiments.

Q: What benefits does the aluminum and PVC construction provide?

A: The combination of an aluminum panel and a PVC cabinet gives the apparatus a robust and durable build, ensuring longevity and protection against wear. Clearly printed symbol diagrams further enhance user experience and prevent connection mistakes.

Q: Can this apparatus be used for both teaching and research purposes?

A: Yes, it is well-suited for educational environments to demonstrate diode and LED characteristics, as well as for laboratory research by professionals in electronics.
