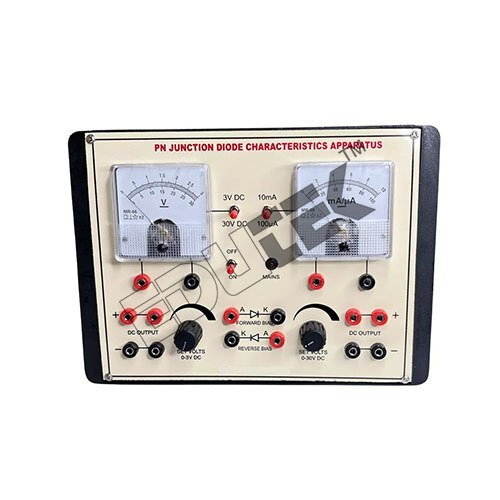

PN JUNCTION DIODE CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS

Send Inquiry

Request To Call Back

PN JUNCTION DIODE CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PN JUNCTION DIODE CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS Specification

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Product Type
PN JUNCTION DIODE CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS

Application
ENGINEERING ELECTRONICS INSTRUMENTS

PN JUNCTION DIODE CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About PN JUNCTION DIODE CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS

Specification:

PN JUNCTION DIODE CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS

Variable DC regulated power supply of 0-3V/10mA and 0-30V/100uA: This power supply can be used to provide the forward or reverse bias voltage to the diode, and the current flowing through the diode can be measured using the built-in ammeter.

Silicon and Germanium diodes: The apparatus is compatible with both types of diodes, which have slightly different IV characteristics.

DC voltmeter of 1V / 30V: This voltmeter can be used to measure the voltage across the diode.

DC ammeter of 10mA / 100uA: This ammeter can be used to measure the current flowing through the diode.
