Send InquiryPlate Loading Test Setup
MOQ : 1 Piece
Plate Loading Test Setup Specification
- Measurement Range
- 0 to 25 Ton
- Frequency
- Hertz (HZ)
- Automation Grade
- Manual
- Core Components
- Steel Rods Load Plate Precision Dial Gauge
- Accuracy
- 100 %
- Temperature Range
- Celsius (oC)
- Warranty
- 1 Year
- Feature
- Durable and precise measurement
- Capacity
- 25 Ton
- Equipment Materials
- High-grade steel
- Type
- Plate Loading Test Setup
- Usage
- Used for measuring soil bearing capacity
- Display Type
- Analog
- Dimension (L*W*H)
- 30x457x457 Millimeter (mm)
- Weight
- 15 Kilograms (kg)
About Plate Loading Test Setup

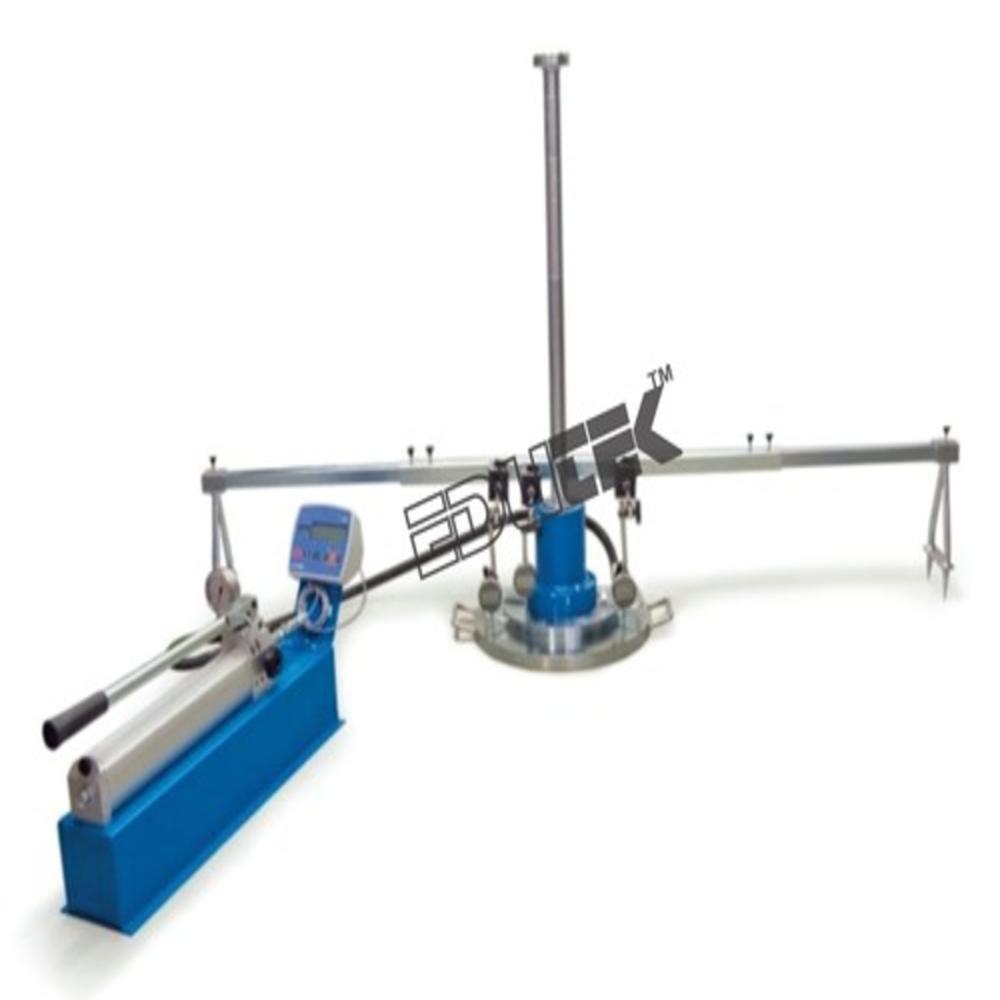

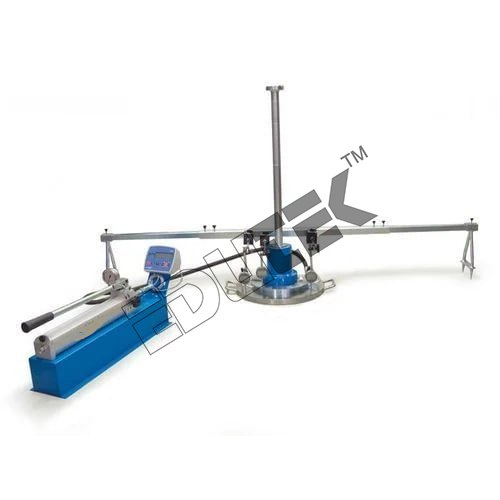

PLATE LOADING TEST SETUP
Bearing Plates:
- Circular (300mm dia and 1000mm dia), min thickness 25mm
- Square (300x300mm and 700x700mm), min thickness 25mm
Hydraulic jack assembly for loading,
- max load capacity 50t
- Callibrated electronic load cell to record the load (max error limit 2%)
- Settlement Recording Device, Strain Gauges with an accuracy of 0.25mm
- Precised Levelling Optical Survey (Accuracy 0.01mm) w.r.t fix datum to Measure settlement.
- Loading Columns.
- Metal Frame Beam for loading (to be fabricated according to pit size) .
- Steel Shims.
FAQs of Plate Loading Test setup:
Q: What is the measurement range of the Plate Loading Test Setup model PLT-2500?
A: The measurement range of the PLT-2500 is from 0 to 25 tons.Q: What is the warranty period for the Plate Loading Test Setup?
A: The Plate Loading Test Setup comes with a 1-year warranty.Q: What is the core component of the Plate Loading Test Setup?
A: The core components include steel rods, a load plate, and a precision dial gauge.Q: What is the maximum capacity of the Plate Loading Test Setup?
A: The Plate Loading Test Setup has a capacity of up to 25 tons.Q: What is the temperature range within which the Plate Loading Test Setup can operate?
A: The Plate Loading Test Setup can operate within a temperature range of 0C to 50C.
