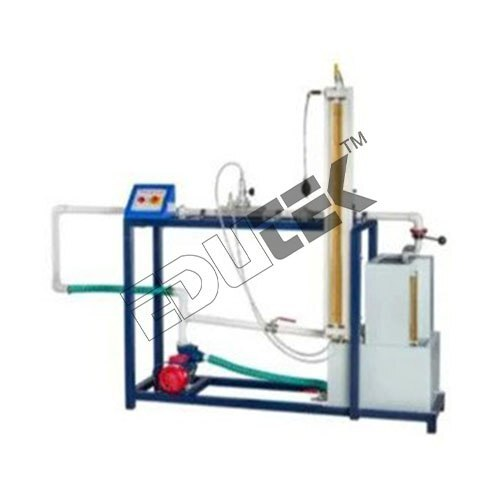

PITOT TUBE SET-UP APPARATUS

Price 46000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PITOT TUBE SET-UP APPARATUS Specification

Application
Fluid Mechanics Lab Equipment

Usage
Fluid Mechanics Lab Equipment

Product Type
PITOT TUBE SET-UP APPARATUS

PITOT TUBE SET-UP APPARATUS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About PITOT TUBE SET-UP APPARATUS

Specification:

PITOTTUBE SET-UP APPARATUS

A Pitot tube is used to measure thelocal velocity at a given point in the flow stress.

A pitot tube of standard design madeof copper/SS is supplied and is fixed below vernies scale.

The vernies scale is capable tomeasure the position of Pitot tube in transparent section.

The pipe has a flow control valve toregulate the flow.

A U-tube manometer is provided todetermine the velocity head. Present set-up is self-contained waterre-circulating unit, provided with a sump tank and a centrifugal pump etc.

Flow control valve and by-pass valveare fitted in water line to conduct the experiment on different flow rates.Flow rate of water is measured with the help of measuring tank and stop watch.

Product Specification

Phase: Single Phase

Material: Stainless Steel

Current: 5-15 amp

Frequency: 50Hz

Voltage: 220V AC

Floor Area Required: 1.5 x 0.75 m
