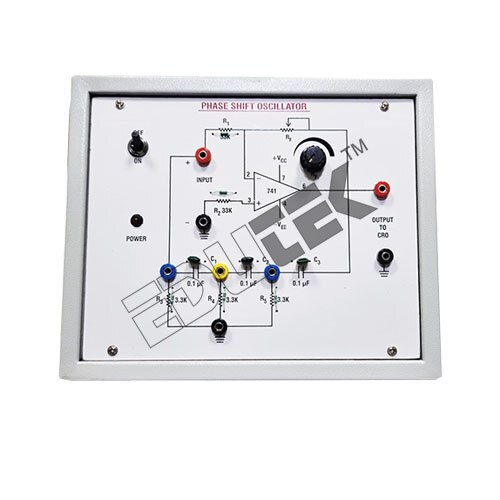

PHASE SHIFT OSCILLATOR USING OP AMP

Name: PHASE SHIFT OSCILLATOR USING OP AMP
Brand: EDUTEK INSTRUMENTATION
Price: 1200.0 INR
Availability: InStock

Price 1200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PHASE SHIFT OSCILLATOR USING OP AMP Specification

Operating Temperature
0C to 50C

Display Type
N/A (no display)

Charging Voltage
N/A (Not battery-operated)

Interface
Banana/binding post terminals for signal output

Components
Op-amp IC (e.g. IC741), resistors, capacitors, connectors, PCB

Output
Sine waveform (Analog Signal)

Response Time
Instantaneous oscillation on powering

Features
Sine wave oscillator, stable frequency, compact, easy for experiment

Input
Not required (self-oscillating)

Power Supply
External DC supply

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Resolution
Depends on external measurement device

Power Source
External DC adapter

Product Type
PHASE SHIFT OSCILLATOR USING OP AMP

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Rated Voltage
12V DC

Supply Voltage
12V DC

Size
Standard PCB trainer size

Dimension (L*W*H)
Approx. 135mm x 90mm x 25mm

Function
Generates sine waveform using phase shift oscillator circuit

Color
Green PCB with assorted component colors

Weight
Approx. 100g

Capacity
Single channel output

Thickness
PCB thickness 1.6mm

Current Rating
~30-50mA consumption

Frequency
1 kHz (typical, adjustable via RC values)

Test Points
Provided for waveform observation on CRO

Waveform Type
Sine wave

Op-Amp IC Type
IC741 (General purpose operational amplifier)

Output Load Capacity
Drives standard oscilloscope (high input impedance)

Mounting Type
Table-top/benchtop

Typical Applications
Oscillator fundamentals, learning phase shift concepts, basic analog circuit experiments

Output Amplitude
Approx. 2Vpp to 5Vpp (depends on supply and load)

Number of RC Stages
Three stage RC phase shift network

PCB Material
Glass epoxy, FR-4 grade

Compliance
Designed for academic and laboratory use

Starter Kit Included
Yes, includes instruction manual and sample experiment sheet

Protection
Short circuit and reverse polarity protected input

Adjustment
Variable potentiometer for frequency adjustment

PCB Finish
Tinned solder pads

PHASE SHIFT OSCILLATOR USING OP AMP Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About PHASE SHIFT OSCILLATOR USING OP AMP

Utilise this grand offer to get the ultimate PHASE SHIFT OSCILLATOR USING OP AMP, designed with the dominant IC741. Shop now for a three-stage RC network oscillator that ensures stable sine wave output (2Vpp-5Vpp), perfect for academic and laboratory experiments. The compact table-top design boasts a high-quality FR-4 PCB, robust short-circuit and reverse polarity protections, and convenient test points for waveform observation. With included starter kit and manual, mastering oscillator fundamentals has never been easier. Secure your unit-ideal for ENGINEERING ELECTRONICS INSTRUMENTS applications across India!

Superior Performance & Versatility for Engineering Applications

Experience a dominant edge with our phase shift oscillator, built to facilitate comprehensive learning and experimentation. The adjustable frequency, stable output, and simple benchtop configuration make it the ultimate choice for students, educators, and lab professionals. The surface of application is wide-perfect for exploring oscillator basics, phase shift dynamics, and analog experiments. Its robust construction and compatibility with standard oscilloscopes ensure seamless integration in engineering setups.

Certified Quality, Nationwide Supply & Sample Availability

Our products follow strict compliance with academic and laboratory standards. Shipped goods are guaranteed to reach you in excellent condition, with reliable order processing ensuring prompt delivery across the main domestic market in India. Samples are available at the lowest price, supporting bulk or educational purchases. With attentive customer service and export capabilities, we prioritise satisfaction from order to delivery, making procurement convenient and affordable.

FAQ's of PHASE SHIFT OSCILLATOR USING OP AMP:

Q: How does the phase shift oscillator using op-amp function?

A: This device utilises an IC741 operational amplifier and a three-stage RC network to generate a stable sine waveform, ideal for demonstrating oscillator fundamentals and phase shift concepts.

Q: What are the primary applications for this oscillator?

A: It is perfect for academic experiments, laboratory demonstrations, and practical learning modules in engineering electronics. It serves as an effective tool for understanding analog circuits and phase shift oscillator principles.

Q: When should I use the variable potentiometer provided?

A: The variable potentiometer allows you to adjust the oscillator's frequency, making it suitable for experiments that require frequency variation or resonance demonstrations.

Q: Where can I observe the output waveform?

A: Dedicated test points are provided specifically for easy waveform observation using a cathode ray oscilloscope (CRO) or standard oscilloscope with high input impedance.

Q: What process is involved in setting up the phase shift oscillator?

A: Simply connect the external 12V DC supply, adjust the potentiometer if desired, and attach your measuring instrument through the banana/binding post terminals to immediately begin generating and observing sine waves.

Q: What are the benefits of choosing this oscillator for educational setups?

A: This phase shift oscillator offers robust protection features, high-quality PCB, clear output, and comprehensive support materials (manual and sample experiments), ensuring a reliable, safe, and educational experience.
