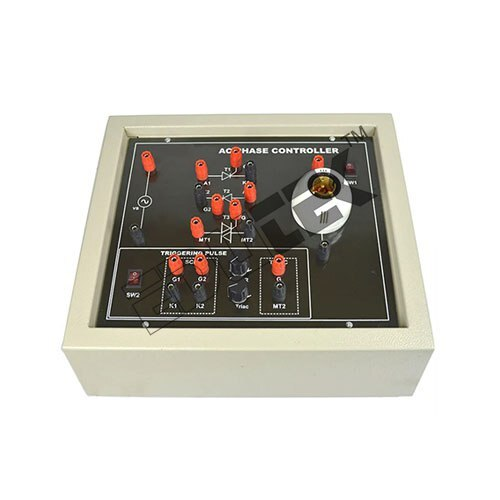

Send InquiryPHASE ANGLE CONTROL WITH THYRISTOR
Price 1600.0 INR/ Piece
MOQ : 1 Piece
PHASE ANGLE CONTROL WITH THYRISTOR Specification
- Features
- Demonstrates sinusoidal phase angle control, safe for academic use, overcurrent protection, modular design
- Display Type
- LED indication for operation
- Power Source
- AC mains
- Interface
- Banana socket terminals
- Power Supply
- 230 V AC, 50 Hz
- Response Time
- Immediate, dependent on input control
- Output
- Phase-controlled AC voltage
- Components
- Thyristor, diac/triac, potentiometer, step-down transformer, fuse, control circuit
- Operating Temperature
- 0C to 50C
- Usage
- ENGINEERING ELECTRONICS INSTRUMENTS
- Resolution
- Analog control (stepless)
- Input
- Analog signal or potentiometer for phase control
- Product Type
- PHASE ANGLE CONTROL WITH THYRISTOR
- Application
- ENGINEERING ELECTRONICS INSTRUMENTS
- Rated Voltage
- 230 V AC
- Supply Voltage
- 230 V AC
- Size
- Standard benchtop module
- Dimension (L*W*H)
- Approx. 300 mm x 175 mm x 90 mm
- Function
- Phase angle control for AC power modulation using thyristor circuits
- Color
- Blue, White (as per shown unit)
- Weight
- Approx. 1.2 kg
- Capacity
- Up to 1 A load current
- Thickness
- Panel thickness approx. 4 mm
- Current Rating
- 1 Ampere max
- Frequency
- 50 Hz
- Manual
- Comprehensive user and experiment manual provided
- Assembly
- Factory assembled and tested before dispatch
- Load Compatibility
- Resistive load (lamp, heater, etc.)
- Indication
- LED ON indicator
- Mounting
- Benchtop, anti-slip rubber pads
- Fuse Rating
- 1 A, quick blow type
- Compliance
- Meets essential educational electronic module safety standards
- Testing Points
- Test sockets provided for waveform monitoring on oscilloscope
- Circuit Protection
- Fused input for user and circuit safety
- Enclosure Material
- ABS front panel with metal chassis
- Control Method
- Variable knob (potentiometer) for phase adjustment
PHASE ANGLE CONTROL WITH THYRISTOR Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Packaging Details
- Carton Box, Export Quality also Available
- Main Export Market(s)
- Asia, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001, CE
About PHASE ANGLE CONTROL WITH THYRISTOR
Specification:
PHASE ANGLE CONTROL WITH THYRISTOR
1Phase AC: 230V/2A/50Hz
Input: 100V AC
Current: 2A
Frequency: 50 Hz input.
Firing Angle Variation: (5-180) degree
