PARALLEL FLOW/ COUNTER FLOW HEAT EXCHANGER APPARATUS Specification

Feature

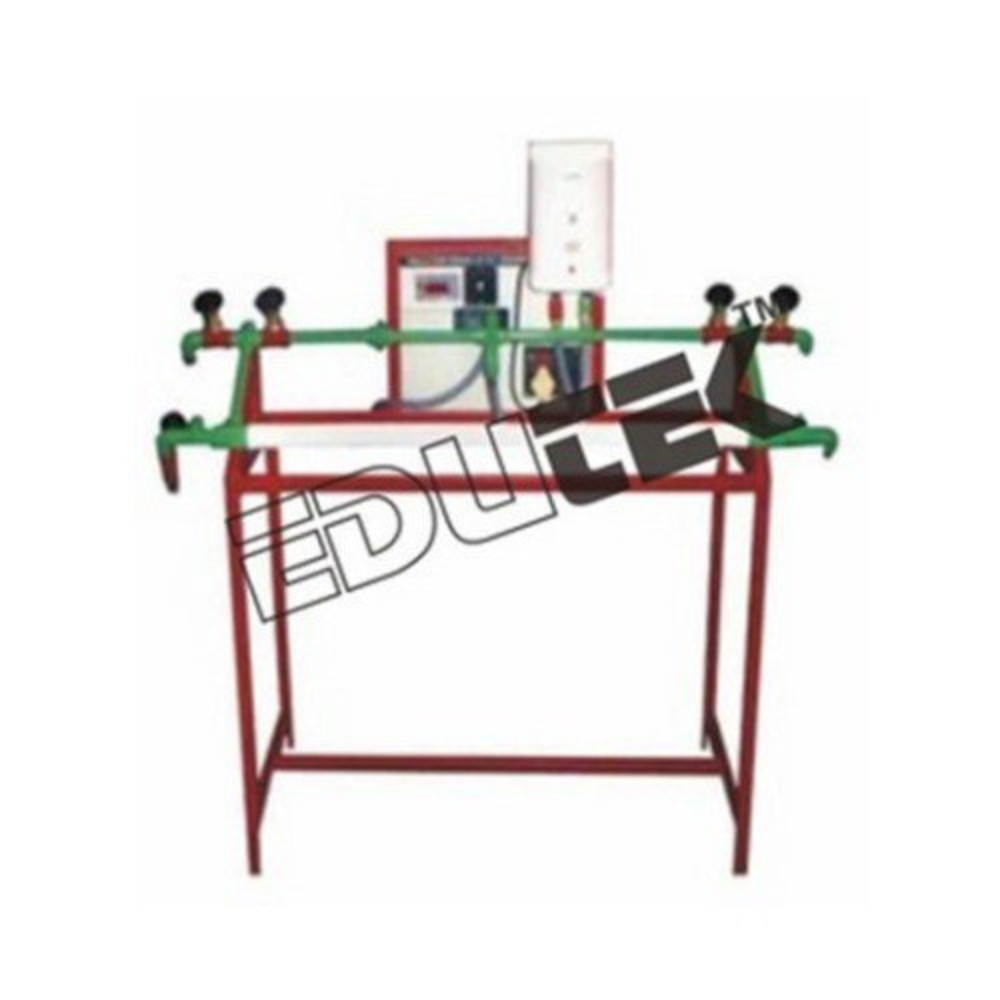

Heat exchanger is devices in whichheat is transferred from one fluid to another. The apparatus consists of aconcentric tube heat exchanger. Hot water flows through inner tube in onedirection only and cold water flows over the inner tube in outer tube. Direction of cold fluid flow can bechanged from parallel or counter to hot water so that unit can be operated asparallel or counter flow heat exchanger. Flow rates of hot and cold water aremeasured using Rotameters. A magnetic drive pump is used to circulate the hotwater from a re-cycled type water tank, which is fitted with heaters andDigital Temperature Controller.

Product Type
PARALLEL FLOW/ COUNTER FLOW HEAT EXCHANGER APPARATUS

Voltage
220 Volt (v)

Usage
Heat Transfer Laboratory Equipment

Power Source
Electricity Supply: 1Phase, 220 V AC,3 kW

Accuracy
100 %

Application
Heat Transfer Laboratory Equipment

Warranty
1 Year

Type
PARALLEL FLOW/ COUNTER FLOW HEAT EXCHANGER APPARATUS

Dimension (L*W*H)
Floor area 2 m x 0.6m Meter (m)

PARALLEL FLOW/ COUNTER FLOW HEAT EXCHANGER APPARATUS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Middle East, Africa, Asia

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About PARALLEL FLOW/ COUNTER FLOW HEAT EXCHANGER APPARATUS

Specification:

PARALLEL FLOW/ COUNTER FLOW HEAT EXCHANGER APPARATUS

Heat exchanger is devices in whichheat is transferred from one fluid to another. The apparatus consists of aconcentric tube heat exchanger. Hot water flows through inner tube in onedirection only and cold water flows over the inner tube in outer tube.

Direction of cold fluid flow can bechanged from parallel or counter to hot water so that unit can be operated asparallel or counter flow heat exchanger. Flow rates of hot and cold water aremeasured using Rotameters. A magnetic drive pump is used to circulate the hotwater from a re-cycled type water tank, which is fitted with heaters andDigital Temperature Controller.

Experiment:

To calculate the following parametersboth for parallel and counter flow arrangement.

To find the rate of heat transfer

To calculate the LMTD Overall heattransfer co-efficient.

To compare the performance ofParallel and Counter flow heat exchanger

Utilities Required:

Water supply 10 lit/min (approx.) anddrain

Electricity Supply: 1Phase, 220 V AC,3 kW

Floor area 2 m x 0.6m

Versatile Dual-Flow Experimental Setup

This apparatus easily switches between parallel and counter flow arrangements, enabling thorough investigations into each method. Accurate measurements of hot and cold water flow rates are possible thanks to integrated rotameters. Fitted with a recycled water tank and digital controller, it simplifies experimental processes and guarantees repeatability for academic or industrial training.

Advanced Measurement and Control Features

Equipped with a digital temperature controller and a magnetic drive pump, this heat exchanger offers precision heating and controllability. It supports accurate parameter logging for heat transfer rates and LMTD calculations, enhancing learning outcomes for heat transfer laboratory exercises or research. The apparatus is robustly constructed for long-lasting performance.

FAQ's of PARALLEL FLOW/ COUNTER FLOW HEAT EXCHANGER APPARATUS:

Q: How do I switch between parallel and counter flow arrangements on this heat exchanger apparatus?

A: The direction of cold fluid flow can be easily adjusted using the apparatus's built-in controls, allowing you to operate it in either parallel or counter flow mode as needed for your experiments.

Q: What parameters can I measure and calculate using this apparatus?

A: You can measure the flow rates of both hot and cold water with rotameters and calculate the rate of heat transfer, the log mean temperature difference (LMTD), and the overall heat transfer coefficient for each arrangement.

Q: When is this apparatus most beneficial for laboratory use?

A: This equipment is best utilized in heat transfer laboratories for academic or research purposes, particularly when comparative analysis of parallel and counter flow heat exchanger performance is required.

Q: Where is this apparatus typically installed or used?

A: The heat exchanger is designed for indoor use in laboratory environments, occupying a floor area of approximately 2 meters by 0.6 meters, making it suitable for university labs, research institutions, and industrial training centers.

Q: What is the process for running an experiment on this apparatus?

A: First, set up the flow configuration (parallel or counter). Fill the recycled water tank, then use the magnetic drive pump to circulate hot water, adjust flow rates with rotameters, and monitor temperatures with digital controls. Data collected allows you to analyze and compare the heat exchange characteristics of both flow modes.

Q: What are the main benefits of using this heat exchanger apparatus?

A: It offers flexible operation modes, accurate measurements, robust durability, and straightforward control, making it ideal for understanding complex heat transfer principles and verifying experimental data in a controlled environment.
