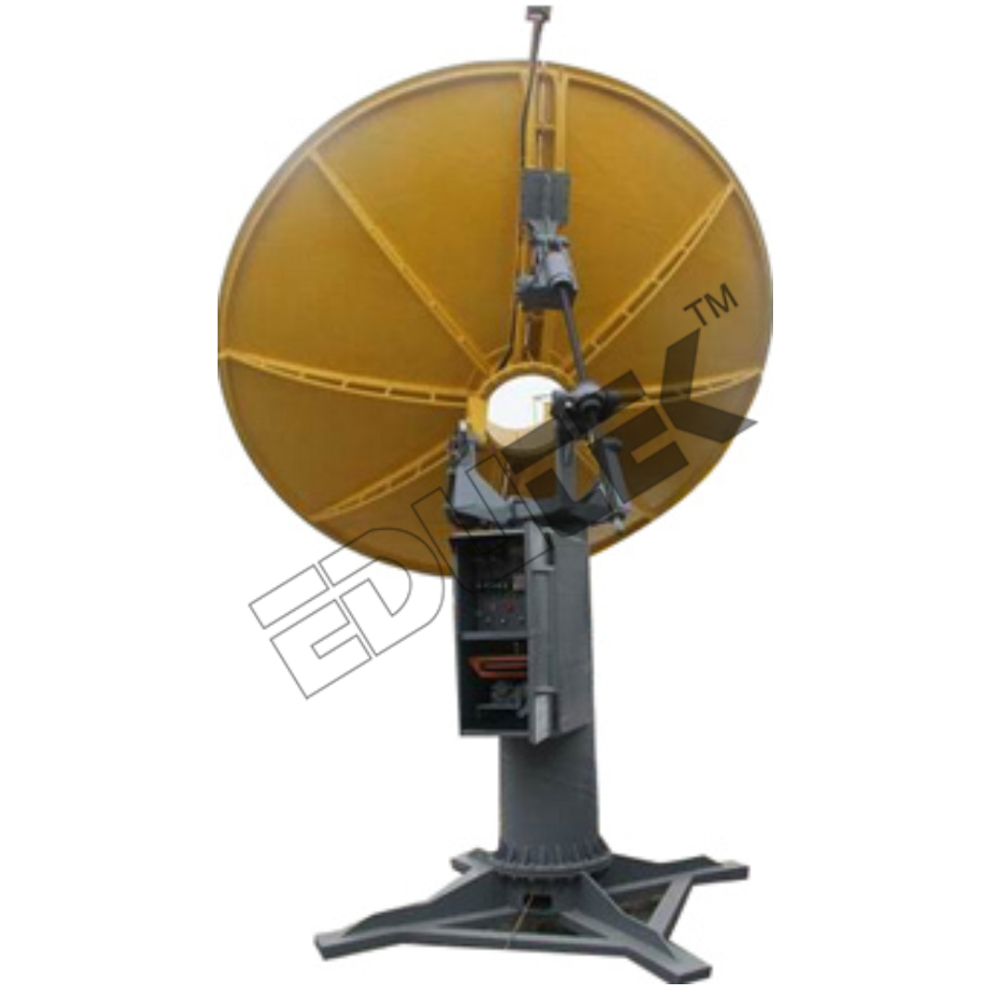

Parabolic Dish Concentrator With Gps Tracking System

Get a Price/Quote

Parabolic Dish Concentrator With Gps Tracking System Specification

Capacity
10-12 kW (Thermal Output)

Voltage
230 V AC

Core Components
Parabolic dish, GPS tracking system, mounting structure, receiver, control unit

Accuracy
Tracking accuracy 0.1

Model No
PDC-GPS24

Frequency
50 Hz

Temperature Range
Up to 400C

Power Source
Solar, Auxiliary Power 230 VAC

Measurement Range
Solar irradiation up to 1000 W/m

Feature
Automatic dual-axis sun tracking with GPS synchronization, high reflectivity mirrors

Automation Grade
Fully Automatic with GPS based Tracking

Equipment Materials
Reflective high-grade aluminum, mild steel frame, stainless steel components

Type
Parabolic Dish Concentrator

Usage
Industrial & institutional solar thermal applications, research and demonstration

Display Type
Digital LCD (for tracking and monitoring)

Dimension (L*W*H)
Dish Diameter: 2.5-3 meters, Structure Height: ~3.2 meters

Weight
Approx. 120-140 kg

Parabolic Dish Concentrator With Gps Tracking System Trade Information

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Parabolic Dish Concentrator With Gps Tracking System

PARABOLIC DISH CONCENTRATOR WITH GPS TRACKING SYSTEM

Aperture width 2.2 m
Focal distance 76 cm
Mirror Reflectivity 0.97
Conversion Thermal efficiency 0.41
Operation range Temperature 1200 deg. C
Transmission Media water Tracking Technology Global Positioning System
Tracking accuracy 0.1 deg. C

Advanced GPS Sun Tracking Technology

This parabolic dish concentrator utilizes real-time GPS synchronization and microprocessor-based controls for automatic dual-axis sun tracking. This ensures optimal solar alignment all day, maximizing energy capture with high tracking accuracy (0.1). Digital LCD displays provide intuitive, real-time monitoring of system operations, making adjustments and performance tracking more accessible.

Superior Reflector and Receiver Design

Equipped with segmented, high-reflectivity mirrors (98%), the dish optimizes light concentration onto its efficient cavity or tubular receiver. The modular reflector design allows for hassle-free segment replacement and maintenance. The receivers advanced thermal efficiency supports versatile heating processes, including steam generation, hot air, or thermal oil, with output temperatures up to 400C.

Robust Construction and Fast Installation

Built to withstand challenging environments, the structure is fabricated with high-grade materials and rated for outdoor use (IP54). The fixed, adjustable foundation ensures reliable performance and stability under high winds (up to 120 km/h). Installation is straightforward, requiring just 46 hours by a skilled team. This simplicity, coupled with straightforward maintenance, enhances overall user experience.

FAQs of Parabolic Dish Concentrator With Gps Tracking System:

Q: How does the GPS tracking system in the parabolic dish concentrator work?

A: The integrated GPS tracking system automatically synchronizes with real-time sun positions, using microprocessor-based controls for precise dual-axis movement. This ensures the reflector consistently points toward the sun throughout the day for optimal solar energy capture and improved thermal efficiency.

Q: What are the main benefits of using a segmented reflector surface with 98% reflectivity?

A: The segmented high-reflectivity mirror design provides superior sunlight concentration, resulting in higher energy output. Segmentation also allows for easy and cost-effective replacement of individual panels, reducing downtime and maintenance costs.

Q: When and where can this parabolic dish concentrator be installed?

A: Installation is suitable for various outdoor locationsindustrial facilities, institutional campuses, or research centersthanks to robust weather resistance (wind speeds up to 120 km/h) and IP54-rated parts. A skilled team can complete installation within 46 hours, ensuring minimal disruption to operations.

Q: What heating options are compatible with this system?

A: The system is highly versatile and can generate steam, hot air, or heating oil. Its advanced receiver design supports efficient thermal transfer, making it ideal for diverse industrial heating and process applications, as well as laboratory demonstrations and research projects.

Q: How is safety ensured during operation?

A: Safety measures include emergency shutdown, manual override functionality, and robust construction with high wind resistance. Microprocessor controls continuously monitor system parameters, while remote connectivity enables rapid interventions if needed.

Q: What advantages does the digital LCD display offer?

A: The digital LCD provides real-time tracking and monitoring, displaying key performance parameters, sun position, and system status. This allows operators to easily supervise and adjust the system as required, enhancing usability and operational confidence.

Q: What is the process for replacing a reflector segment if damaged?

A: Reflector segments are designed for straightforward removal and replacement. A maintenance technician can quickly detach the affected panel and install a new one, minimizing downtime and ensuring the system returns to full performance with minimal effort.
