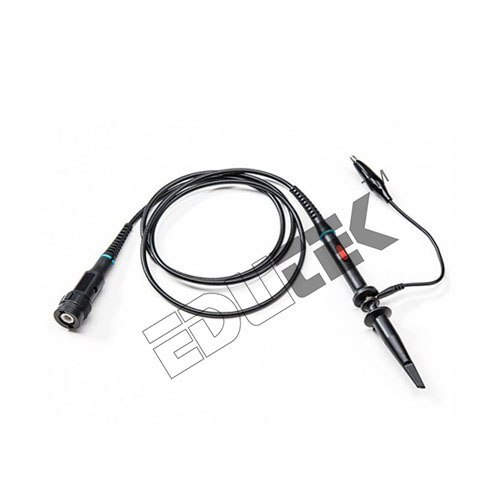

OSCILLOSCOPE PROBE 20/30MHZ LENGTH 38 INCHES

Send Inquiry

Request To Call Back

OSCILLOSCOPE PROBE 20/30MHZ LENGTH 38 INCHES

Get a Price/Quote

MOQ : 1 Piece

OSCILLOSCOPE PROBE 20/30MHZ LENGTH 38 INCHES Specification

Power Source
Passive

Input
Oscilloscope Channel (BNC Connector)

Output
Test Point Probe

Power Supply
Not Required (Passive Device)

Features
Detachable Tip, Hook-Type, Shielded Cable

Response Time
Fast (Optimized for 20/30 MHz)

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Components
Probe, Ground Lead, Hook Tip

Interface
BNC Connector

Operating Temperature
0C to 50C

Product Type
OSCILLOSCOPE PROBE 20/30MHZ LENGTH 38 INCHES

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Rated Voltage
600 Vpk Max

Size
Probe Length 38 Inches

Dimension (L*W*H)
38 inch (Length), Standard Width

Function
Signal Measurement and Probing

Color
Black and Gray

Weight
Approx. 40 grams

Thickness
Probe Tip: 0.5 mm

Frequency
20/30 MHz Bandwidth

Cable Type
Coaxial, Low Noise

Ground Lead Length
6 to 8 Inches

Cable Diameter
Approx. 3.5 mm

Probe Tip Type
Replaceable, Gold Plated

Insulation Material
High Quality PVC

Compliance
RoHS Compliant

Probe Body Material
ABS Plastic, Shock Resistant

Connector Type
Standard BNC to Probe

Matching Resistance
10 M (10:1), 1 M (1:1)

Maximum Input Voltage
600 V

Attenuation Ratio
10:1 and 1:1 Switchable

Compensation Range
15 pF to 40 pF

Storage Temperature
-20C to 70C

OSCILLOSCOPE PROBE 20/30MHZ LENGTH 38 INCHES Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About OSCILLOSCOPE PROBE 20/30MHZ LENGTH 38 INCHES

Promotion Alert! Discover the inestimable value of our OSCILLOSCOPE PROBE 20/30MHz, measuring a glorious 38 inches in length. Featuring switchable attenuation ratios (10:1/1:1), this sale-ready instrument boasts low noise and premium coaxial cable for sharp signal measurement. Its replaceable, gold-plated tip enhances both durability and performance, while high-quality PVC insulation ensures safety up to 600 V. With a shock-resistant ABS plastic body, standard BNC connectivity, and RoHS compliance, this valuable probe is a top choice for engineering electronics instruments. Pick yours today!

Versatile Signal Probing for Engineering Applications

Designed for use with engineering electronics instruments, the OSCILLOSCOPE PROBE 20/30MHz shines in both laboratory and field environments. Its precise signal measurement and probing capabilities make it essential for circuit analysis, diagnostics, and prototyping tasks. With compatibility for standard BNC connectors, it integrates seamlessly into most oscilloscopes, supporting multiple usage types and facilitating detailed electronic analysis at development and testing sites.

Flexible Supply & Sample Policy for Domestic Buyers

For buyers interested in this valuable probe, we offer a straightforward sample policy and competitive asking price. Our outlay includes safe packaging and swift delivery via FOB port. Serving the main domestic market across India, we prioritize reliable supply chains to ensure timely availability. Exporters, manufacturers, and suppliers benefit from our transparent process, making it easy to evaluate product quality before committing to bulk orders.

FAQs of OSCILLOSCOPE PROBE 20/30MHZ LENGTH 38 INCHES:

Q: How does the switchable attenuation ratio of 10:1 and 1:1 function on this oscilloscope probe?

A: You can easily toggle between 10:1 and 1:1 attenuation ratios to match your measurement requirements. The 10:1 setting is ideal for high voltage signals, while 1:1 is used for lower voltage testing, ensuring optimal sensitivity and signal integrity.

Q: What is the maximum input voltage the probe can safely handle?

A: The oscilloscope probe is rated for a maximum input voltage of 600 Vpk, making it suitable for a wide range of electronic testing and measurement applications.

Q: Where can this probe be applied effectively?

A: It is specifically engineered for engineering electronics instruments, including circuit analysis, diagnostics, troubleshooting, and other laboratory or industrial testing tasks requiring precise signal measurement.

Q: What are the benefit of the gold-plated and replaceable probe tip?

A: The gold-plated, replaceable tip provides superior electrical conductivity, corrosion resistance, and ease of maintenance, ensuring long-term reliable operation and accurate measurement results.

Q: How do I connect the probe to my oscilloscope?

A: The probe features a standard BNC to probe connector, allowing effortless attachment to any compatible oscilloscope channel for immediate signal measurement at your test point.

Q: What are the supply options and sample policy for domestic buyers in India?

A: We offer sample units for evaluation at a competitive asking price, with reliable supply and shipment from our main domestic market, accessible through FOB port arrangements.
