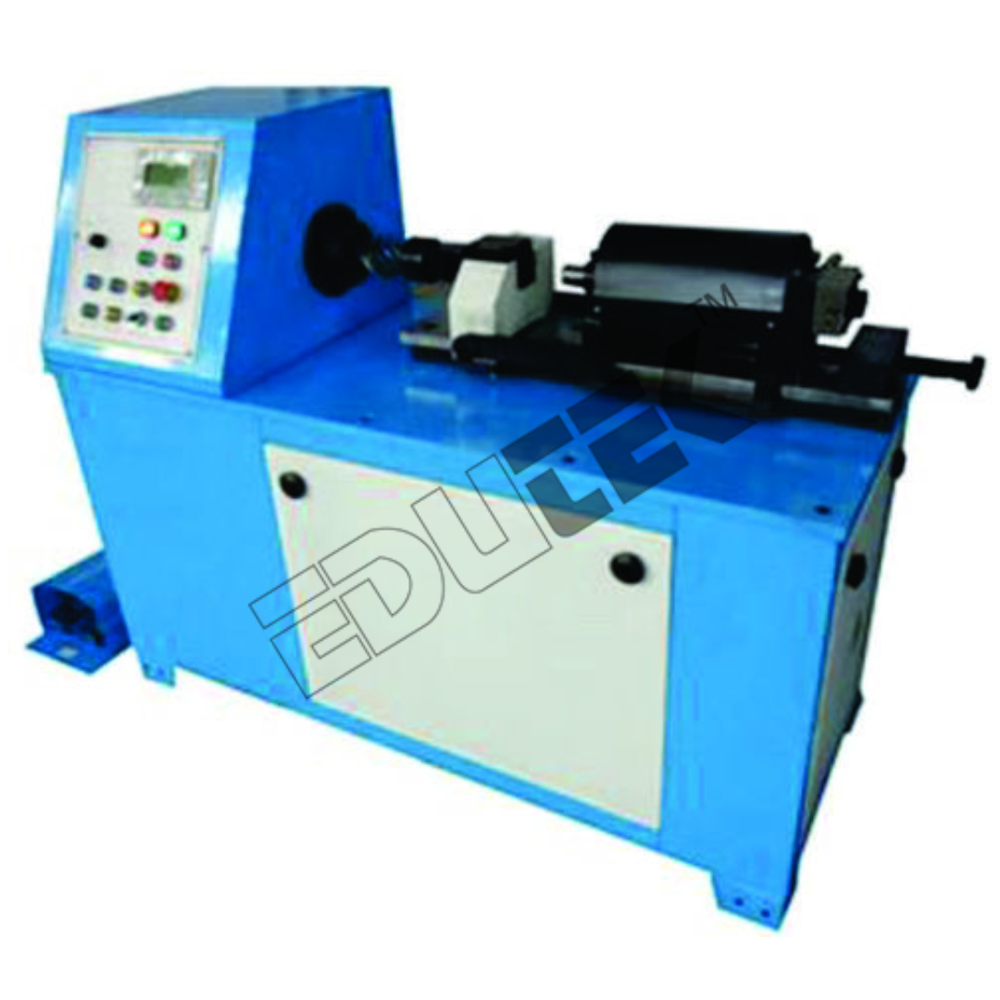

ORNAMENTAL IRON MAKING MACHINE

Get a Price/Quote

ORNAMENTAL IRON MAKING MACHINE Specification

Max Height
120 mm scroll size

Equipment Type
Ornamental Iron Making Machine

Temperature
5C to 45C

Response Time
Instant

Display Type
Analog scale

Mounting Type
Floor mounted

Frequency
50 Hz

Port Size
Standard 1 inch

Power Supply
3 Phase, 380V, 50 Hz

Gas Pressure
0.6-0.8 MPa

Features
Robust construction, easy die change, efficient operation

Operating Voltage
380V AC

Test Range
Mild Steel, Stainless Steel, Wrought Iron

Automation Grade
Semi-Automatic

Interface Type
Manual lever, mechanical wheel

Measuring Range
10 mm to 60 mm

Specimen Size
10 mm to 60 mm width

Resolution
0.1 mm

Hardness
Handles up to 180 HB material

Accuracy
0.5 mm

Humidity
40-85%

Number of Specimens
1 piece per operation

Application
Making decorative iron bars, scrolls, bends, and baskets

Usage
Ornamental iron fabrication

Capacity
Daily production up to 100 pieces

Machine Weight
Approx. 950 kg

Test Speed
2-5 m/min

Test Width
Up to 60 mm

Test Stroke
Up to 120 mm

Control Mode
Manual & Semi-Automatic

ORNAMENTAL IRON MAKING MACHINE Trade Information

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About ORNAMENTAL IRON MAKING MACHINE

ORNAMENTAL IRON MAKING MACHINE

Input Voltage (V) : AC 220
Motor Performance : 4KW
Frequency (Hz) : 50/60
Max Work Capacity : 200-800 mm, 25x25 mm.
Twist basket material -square steel : 6x6 mm, 7x7 mm, 8x8 mm.
Round steel diameter : 6 mm,8 mm.

Strength and Versatility in Iron Crafting

Built from heavy-duty cast iron and weighing approximately 950 kg, this machine promises exceptional durability and stability during operation. The versatile design supports both custom and standard dies, facilitating the creation of diverse ornamental patterns in iron, stainless steel, and wrought iron. Its adaptability makes it invaluable for small workshops and high-production environments alike.

Precision Manufacturing for Ornamental Applications

Achieve instant and accurate results with a measuring resolution of 0.1 mm and 0.5 mm accuracy. The analog scale display ensures easy monitoring, while the manual and semi-automatic controls allow precise, consistent fabrication of scrolls, bends, and baskets for gates, railings, and decorative projects. Each operation handles single pieces, streamlining workflow and minimizing waste.

Safety and Efficiency Combined

Safety is paramount, featuring an emergency stop and hand guard. With convenient manual greasing points, the machine ensures smooth performance and extended component life. Finished with powder coating for corrosion resistance and shipped in a sturdy wooden crate, it is ready for export and industrial use. After-sales service guarantees continued operational support.

FAQs of ORNAMENTAL IRON MAKING MACHINE:

Q: How do I operate the Ornamental Iron Making Machine?

A: The machine can be operated manually using a lever or mechanical rotary handle, or in semi-automatic mode depending on your requirements. Follow the provided guidelines for die installation, material placement, and safety controls. Ensure manual greasing points are maintained for smooth operation.

Q: What materials and specimen sizes can this machine handle?

A: The machine is suitable for processing mild steel, stainless steel, and wrought iron with specimen widths ranging from 10 mm to 60 mm and hardness up to 180 HB. Each cycle processes one piece, ensuring precision for ornamental applications.

Q: When should I perform maintenance on the machine?

A: Routine maintenance should include regular lubrication at the manual greasing points and periodic inspection of dies, mechanical parts, and safety features. Refer to the user manual for a detailed maintenance schedule to ensure longevity and optimal performance.

Q: Where can this Ornamental Iron Making Machine be used?

A: Ideal for metal fabrication workshops, factories, and industries specializing in decorative iron products, the machine is designed for floor mounting and can be accommodated in spaces able to handle its dimensions and weight. It is suitable for facilities with available 380V, 3-phase, 50 Hz power supply.

Q: What is the production capacity and accuracy of the machine?

A: The machine can produce up to 100 pieces daily, with a measurement accuracy of 0.5 mm and resolution of 0.1 mm. The test speed ranges from 2 to 5 meters per minute, ensuring efficient and reliable output for repetitive and custom tasks.

Q: How does the machine ensure user safety during operation?

A: Safety features include an emergency stop button and a hand guard. Operators should always engage these safety systems during use and utilize personal protective equipment for added security.

Q: What are the benefits of using this machine for ornamental iron fabrication?

A: Benefits include robust construction, efficient operation, easy die changes, high production capacity, and precise results. The machines versatility and reliability support both small-scale and bulk production, making decorative ironwork easier and more consistent.
