Orifice Discharge Apparatus

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Orifice Discharge Apparatus Specification

Capacity
20 Liters

Warranty
1 year

Measurement Range
0.1 LPS - 2 LPS

Temperature Range
0C to 50C

Model No
ODA-01

Automation Grade
Manual

Voltage
220V AC

Core Components
Collecting Tank, Sump Tank, Orifice Plate, Measuring Scale, Piping, Valves

Accuracy
1% of full scale

Power Source
Electric

Frequency
50 Hz

Feature
Used for the purpose of measuring fluid flowing through an open channel.

Equipment Materials
Stainless Steel and Acrylic

Type
Orifice Discharge Apparatus

Usage
Educational Laboratory, Fluid Mechanics Experiment

Display Type
Analog

Dimension (L*W*H)
900 mm x 400 mm x 1100 mm

Weight
Approx. 30 kg

Scale Type
Direct Reading Graduated Scale

Pump Capacity
0.5 HP

Pipe Material
PVC and Brass

Orifice Sizes Provided
8 mm, 10 mm, 12 mm (Interchangeable)

Test Medium
Water

Sump Tank Capacity
35 Liters

Mounting
Floor Standing

Maintenance
Low

Surface Finish
Powder coated mild steel frame and panels

Flow Control
Via Regulating Valve

Reservoir Type
Integrated sump tank

End Connections
Leak-proof, easy coupling

Water Supply System
Self-contained with Recirculating Pump

Orifice Discharge Apparatus Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cheque, Telegraphic Transfer (T/T)

Sample Available
Yes

Main Export Market(s)
Africa, Asia, Australia, North America, Central America, South America, Eastern Europe, Western Europe, Middle East

Main Domestic Market
All India

Certifications
AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.

About Orifice Discharge Apparatus

Orifice Discharge Apparatus

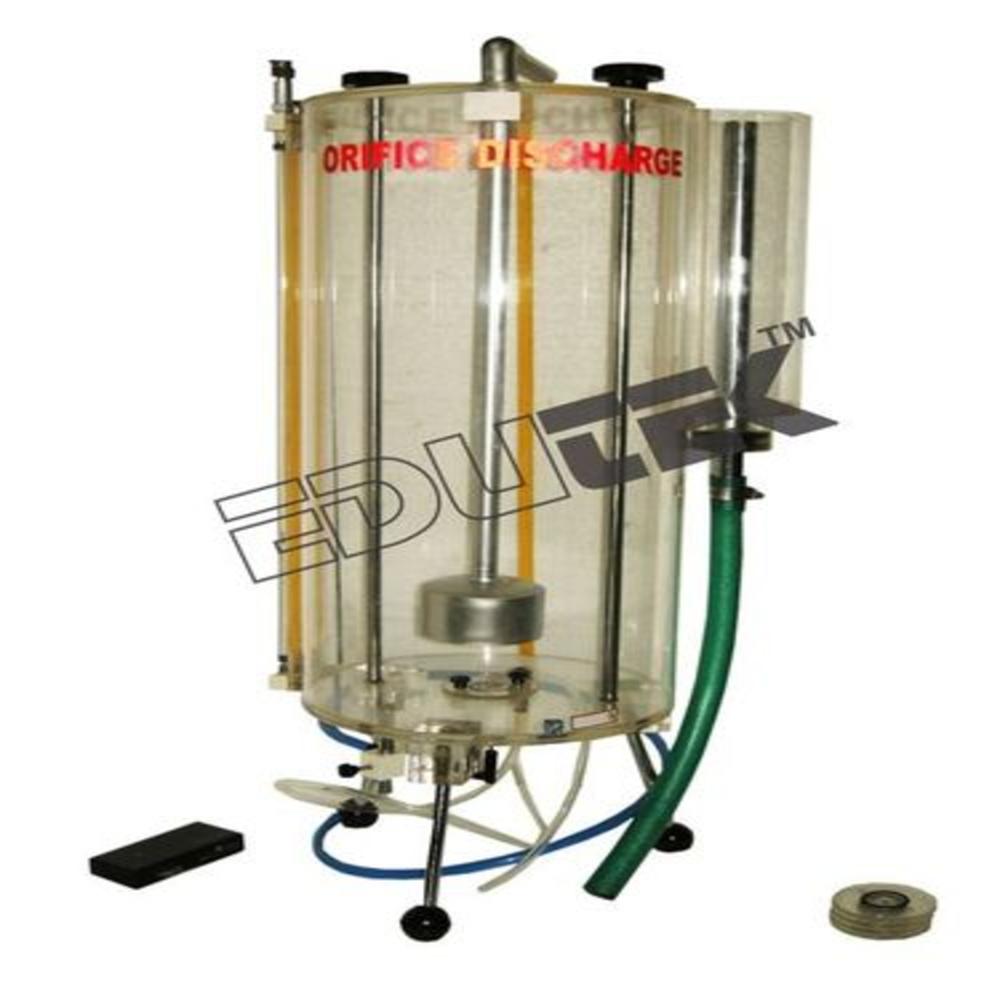

We are offering a wide range of Fluid Mechanic lab equipment for engineering colleges. Our company offers optimum quality Orifice Discharge Apparatus at the most reasonable market price. This apparatus is manufactured under the supervision of expert professionals, using best quality raw materials. The apparatus manufactured by us is used for the purpose of measuring fluid flowing through an open channel. Offered apparatus is exclusively demanded in various hydraulic industries for accurate performance and hassle-free installation. In addition to the sharp edged orifice, four additional orifices with different profiled are supplied. The Orifice Discharge accessory consists of a cylindrical Clear acrylic tank which has an orifice fitted in the base. A traverse assembly is provided which enables a pitot tube to be positioned anywhere in the jet. Attached to this pitot tube is a fine wire which can be traversed across the jet to accurately measure the jet diameter and the vena contracta diameter and so determine the contraction coefficient.

Specifications of Orifice Discharge Apparatus :

Determining the contraction and velocity coefficients.
Calculating the discharge coefficient.
Cylindrical glass tank with orifice fitted in base.
Four interchangeable orifices.
Pitot tube and knife edge to measure jet velocity and diameter.
Establishing the coefficient of velocity for a small orifice.

Comprehensive Fluid Flow Analysis

The apparatus is specifically engineered for analyzing fluid discharge through various orifice sizes. Its manual operation and precise scale enable students to observe and record flow rates with 1% accuracy, supporting thorough learning and research in fluid mechanics.

Easy Setup and Reliable Operation

Featuring a floor-standing, powder-coated frame and integrated sump tank, the apparatus allows for hassle-free installation and smooth operation. Leak-proof couplings and brass piping guarantee durability, while self-contained water circulation keeps maintenance minimal.

Educational Value for Laboratory Use

Ideal for educational settings, this apparatus enables practical understanding of real-world fluid dynamics. The analog display, direct reading scale, and manual flow control make it perfect for coursework, demonstrations, and student research.

FAQs of Orifice Discharge Apparatus:

Q: How does the Orifice Discharge Apparatus measure fluid flow through an orifice?

A: The device measures fluid flow by regulating water passage through interchangeable orifice plates and collecting discharge in a graduated tank. Measurements are read directly on the analog scale, providing real-time data for analysis.

Q: What are the benefits of using interchangeable orifice sizes in experiments?

A: Interchangeable orifice plates (8 mm, 10 mm, 12 mm) allow experimentation with different flow conditions, enhancing understanding of discharge variations and hydraulic behavior in open channel settings.

Q: When is the Orifice Discharge Apparatus most commonly used in a laboratory setting?

A: It is used during fluid mechanics courses and laboratory experiments to demonstrate and quantify flow rates, discharge coefficients, and pressure relationships for engineering and science students.

Q: Where should the apparatus be installed for optimal performance?

A: The apparatus is best installed on a flat, stable laboratory floor with access to a 220V AC power source. Its dimensions (900 mm x 400 mm x 1100 mm) accommodate most lab spaces, ensuring reliable and safe operation.

Q: What is the process for setting up and starting an experiment with the apparatus?

A: To begin, connect the apparatus to power, fill the sump tank with water, select the desired orifice plate, and adjust the regulating valve. The recirculating pump maintains water flow while measurements are recorded using the scale.

Q: How does the self-contained water supply system benefit laboratory operations?

A: The integrated 35-liter sump tank with recirculating pump eliminates the need for external water connections, conserving water and simplifying operation. This also makes the system portable and easy to maintain.

Q: What maintenance is required for the Orifice Discharge Apparatus?

A: Regular checks of the pump, valves, and end connections are recommended. The apparatus is designed with low maintenance in mind due to its durable construction and quality materials, ensuring longevity.
