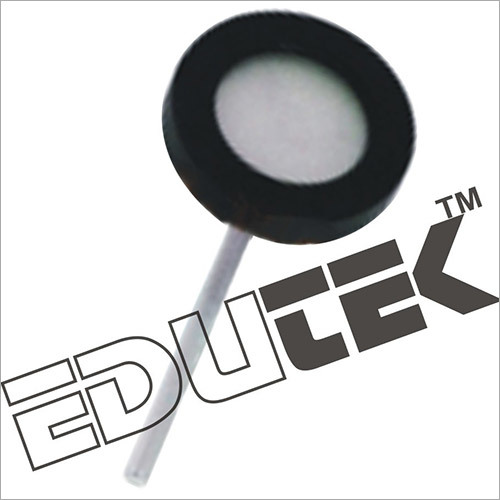

Optical Bench Accessories Ground Glass Screen

Get a Price/Quote

MOQ : 10 Pieces

Optical Bench Accessories Ground Glass Screen Specification

Power Source
None (Passive Device)

Core Components
Ground Glass Screen, Mounting Frame

Feature
Frosted Surface for Diffuse-Light Projection

Model No
OGGS-01

Automation Grade
Manual

Equipment Materials
Ground Glass Metal

Type
Optical Bench Accessory

Usage
Scientific Experiments Optical Systems

Temperature Range
Room Temperature (Not Applicable)

Display Type
Opaque Ground Glass

Dimension (L*W*H)
100 mm x 100 mm x 3 mm

Weight
Approx. 120 g

Transparency
Opaque/Frosted

Application
Screen for Image Formation and Light Projection

Mounting Compatibility
Fits Standard Optical Bench Holders

Shape
Square

Edge Type
Smooth Polished

Resistance
Scratch and Heat Resistant

Thickness
3 mm

Surface Finish
Ground Glass

About Optical Bench Accessories Ground Glass Screen

Optical Bench Accessories Ground Glass Screen for Physics Lab

Edutek are offering a wide range of Optical Bench Accessories Ground Glass Screen for Physics Lab.

Specification of Optical Bench Accessories Ground Glass Screen for Physics Lab

In metal frame 100 x 75 mm with a central aperture 63 mm diameter. Mounted on a 6 mm brass rod giving an optical centre height of 80 mm approx. Overall 130 mm height.

Precision-Engineered for Laboratory Use

The OGGS-01 ground glass screen is expertly crafted for scientific accuracy and consistency. Its frosted surface enables optimal diffuse-light projection, making it essential for image formation on optical benches in educational or research environments. Heat and scratch resistance enhance its durability during repeated experimental setups.

Seamless Integration with Standard Optical Benches

Equipped with a mounting frame that fits standard optical bench holders, the OGGS-01 is practical and easy to install. The square, polished-edge design ensures stability and safety during use. Its compatibility streamlines experimental setup and supports a wide array of optical studies.

FAQs of Optical Bench Accessories Ground Glass Screen :

Q: How is the OGGS-01 ground glass screen used in optical experiments?

A: The OGGS-01 is typically placed in an optical bench holder, serving as a projection or image formation screen. Its frosted, opaque surface diffuses incident light for clear visualization of light patterns during experiments.

Q: What are the benefits of using a ground glass screen with a frosted surface?

A: A frosted ground glass screen provides enhanced diffusion of light, creating uniform illumination essential for analyzing optical patterns or forming images without hotspots or glare.

Q: When should I use this accessory in my experimental setup?

A: This screen is ideal for use in experiments that require diffuse light projection, such as observing focal points, conducting imaging studies, or demonstrating optical phenomena in physics labs.

Q: Where can this ground glass screen be mounted?

A: The screen is designed to fit standard optical bench holders commonly found in laboratory and research settings, ensuring broad compatibility and secure positioning during experiments.

Q: What materials and features make this accessory durable?

A: Constructed from scratch and heat-resistant ground glass with a sturdy metal mounting frame, the OGGS-01 withstands frequent handling and the physical demands of scientific environments.

Q: How does the smooth polished edge benefit users?

A: Smooth, polished edges reduce the risk of chipping and enhance safety during handling, making the screen more durable and easier to position within optical systems.
