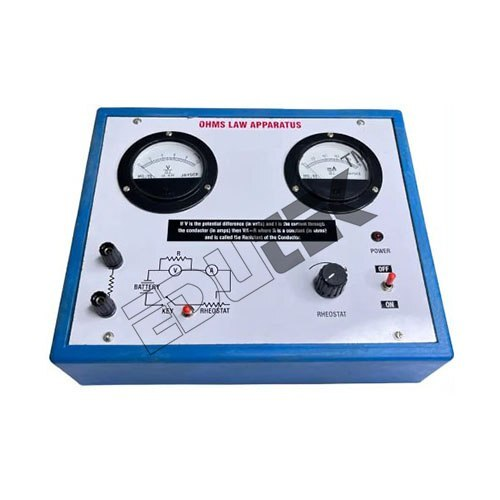

OHMS LAW APPARATUS WITH BAKELITE PANEL 2 ROUND METERS & POWER SUPPLY

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

OHMS LAW APPARATUS WITH BAKELITE PANEL 2 ROUND METERS & POWER SUPPLY Specification

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Power Source
ELECTRICAL

Product Type
OHMS LAW APPARATUS WITH BAKELITE PANEL 2 ROUND METERS & POWER SUPPLY

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Warranty
1 YEAR

Frequency
50 Hertz (HZ)

OHMS LAW APPARATUS WITH BAKELITE PANEL 2 ROUND METERS & POWER SUPPLY Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash on Delivery (COD), Cash Advance (CA), Cheque

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About OHMS LAW APPARATUS WITH BAKELITE PANEL 2 ROUND METERS & POWER SUPPLY

Specification:

OHMS LAW APPARATUS WITH BAKELITE PANEL 2 ROUND METERS & POWER SUPPLY

Consisting of a sheet metal enclosure with milli ammeter, voltmeter, rheostat, push key and terminal posts.

Simply connect an external battery and a suitable resistance to the terminal posts, then press the push key.

Readings are taken from the milli ammeter and voltmeter and the resistance is calculated using Ohms Law.

Reliable Instrument for Electronics Education

This Ohm's Law Apparatus is designed to help engineering students and professionals accurately understand and verify Ohm's Law. Its durable Bakelite panel ensures longevity even under constant laboratory use, making it an indispensable piece of equipment for educational institutions and training centers.

Comprehensive Features for Practical Application

With two round meters for precise measurement and an integrated electrical power supply, this apparatus streamlines experiments. Its safety-rated materials and user-friendly setup allow for efficient, repetitive, and accurate training in electronics engineering.

FAQ's of OHMS LAW APPARATUS WITH BAKELITE PANEL 2 ROUND METERS & POWER SUPPLY:

Q: How does the Ohm's Law Apparatus with Bakelite Panel benefit engineering electronics students?

A: This apparatus provides hands-on experience to students, allowing them to practically verify and understand Ohm's Law by measuring current and voltage, thus strengthening their theoretical knowledge through experimentation.

Q: What are the main components included in this Ohm's Law Apparatus?

A: The setup features a durable Bakelite panel, two round meters for voltage and current readings, and a built-in power supply. All components are designed for ease of use and precise measurement in laboratory settings.

Q: When should I use this apparatus in an engineering electronics course?

A: It is ideal for use during laboratory sessions that cover fundamental electrical laws, specifically when demonstrating and investigating the relationship between voltage, current, and resistance.

Q: Where can the Ohm's Law Apparatus be installed?

A: This apparatus is suitable for educational institutions such as engineering colleges, technical universities, and vocational training centers. It should be used in a well-ventilated and dry indoor laboratory environment.

Q: What is the process for operating the Ohm's Law Apparatus?

A: Simply connect the electrical power source (50 Hz), ensure the setup is secure, then use the attached meters to measure voltage and current across the test component. Adjust the supplied voltage as needed to observe Ohm's Law in action.

Q: What kind of warranty does the apparatus have?

A: The product is backed by a one-year warranty from the manufacturer, ensuring support and protection against manufacturing defects during this period.
