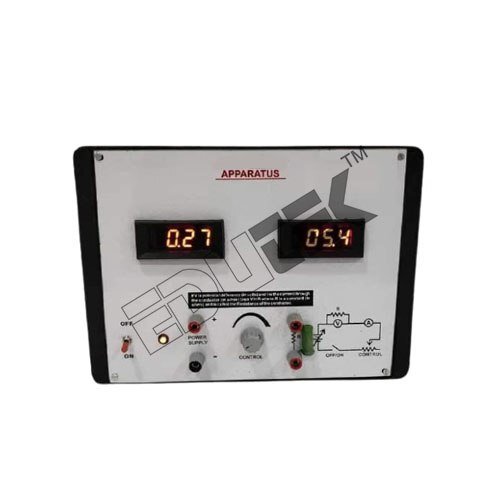

Send InquiryOHM'S LAW APPARATUS WITH ALUMINUM PANEL, 2 DIGITAL PANEL METERS & POWER SUPPLY
MOQ : 1 Piece
OHM'S LAW APPARATUS WITH ALUMINUM PANEL, 2 DIGITAL PANEL METERS & POWER SUPPLY Specification
- Usage
- ENGINEERING ELECTRONICS INSTRUMENTS
- Features
- Consisting of a sheet metal enclosure with milli ammeter, voltmeter, rheostat, push key and terminal posts.
- Product Type
- OHMS LAW APPARATUS WITH ALUMINUM PANEL, 2 DIGITAL PANEL METERS & POWER SUPPLY
- Application
- ENGINEERING ELECTRONICS INSTRUMENTS
- Function
- OHMS LAW APPARATUS WITH ALUMINUM PANEL, 2 DIGITAL PANEL METERS & POWER SUPPLY
- Warranty
- 1 Year
- Material
- metal
OHM'S LAW APPARATUS WITH ALUMINUM PANEL, 2 DIGITAL PANEL METERS & POWER SUPPLY Trade Information
- Minimum Order Quantity
- 1 Piece
- Packaging Details
- Carton Box, Export Quality also Available
- Main Export Market(s)
- Middle East, Africa, Asia
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001, CE
About OHM'S LAW APPARATUS WITH ALUMINUM PANEL, 2 DIGITAL PANEL METERS & POWER SUPPLY
Specification:
OHMS LAW APPARATUS WITH ALUMINUM PANEL, 2 DIGITAL PANEL METERS & POWER SUPPLY
Consisting of a sheet metal enclosure with milli ammeter, voltmeter, rheostat, push key and terminal posts.
Simply connect an external battery and a suitable resistance to the terminal posts, then press the push key.
Readings are taken from the milli ammeter and voltmeter and the resistance is calculated using Ohms Law.
Precise Ohms Law Demonstration
This apparatus is meticulously engineered to provide reliable and accurate verification of Ohms Law in practical electrical circuits. The inclusion of digital panel meters simplifies readings for both current and voltage, enabling students and researchers to observe real-time data during experimentation.
Sturdy and User-Friendly Design
Designed with an aluminum panel and sheet metal enclosure, the instrument ensures both durability and safety. The intuitive control interface, with a push key and clearly marked terminal posts, allows users to easily set up circuits and adjust resistances as needed for their experiments.
FAQs of OHMS LAW APPARATUS WITH ALUMINUM PANEL, 2 DIGITAL PANEL METERS & POWER SUPPLY:
Q: How is the OHMS LAW APPARATUS used in engineering electronics experiments?
A: This apparatus is primarily used to experimentally verify Ohms Law by assembling electrical circuits and accurately measuring current and voltage with its integrated digital meters. Students and researchers adjust the rheostat to vary resistance and observe changes in readings.Q: What features make this Ohms Law apparatus suitable for laboratory environments?
A: It features a sturdy sheet metal enclosure, two built-in digital panel meters, a reliable power supply, and user-friendly controls, making it an ideal choice for repeated use in educational laboratories and research settings.Q: Where is the OHMS LAW APPARATUS manufactured and supplied from?
A: The apparatus is manufactured, exported, and supplied by reputable companies based in India, ensuring quality and adherence to engineering standards.Q: What is the benefit of using digital panel meters in this instrument?
A: Digital panel meters provide precise and clear readings of current and voltage, reducing observer errors and facilitating accurate documentation of experimental results.Q: When is regular maintenance recommended for the OHMS LAW APPARATUS?
A: Routine inspection is recommended before each laboratory session to ensure all components, especially the meters and power supply, are functioning optimally and to prolong the devices lifespan.Q: What process should be followed to carry out a typical experiment with this apparatus?
A: Users set up a basic circuit using the terminal posts, apply a voltage using the power supply, adjust resistance through the rheostat, and observe the milliammeter and voltmeter readings as variables are changed to analyze Ohms Law.
