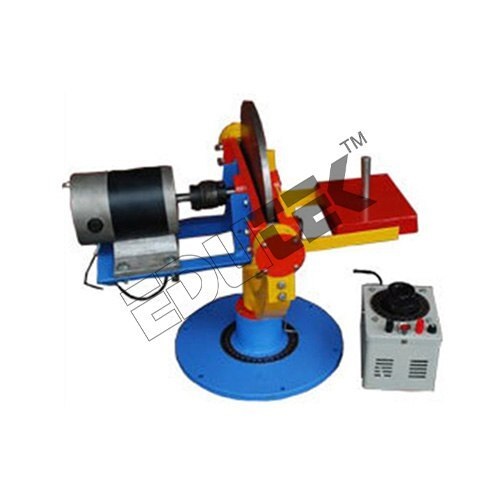

MOTORIZED GYROSCOPE APPARATUS

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MOTORIZED GYROSCOPE APPARATUS Specification

Accuracy
1%

Specimen Size
Gyroscope disc dia. 300mm approx.

Temperature
0C to 50C operating range

Interface Type
Manual & digital display

Max Height
Approx. 450 mm

Application
Engineering Testing Equipment

Display Type
Digital RPM/Angular scale

Operating Voltage
220V AC

Product Type
MOTORIZED GYROSCOPE APPARATUS

Mounting Type
Table-top/Bench-top mount

Measuring Range
Measures angular velocity and gyroscopic couple

Response Time
Immediate (digital display)

Power Supply
220V AC, 50Hz

Usage
Engineering Testing Equipment

Equipment Type
MOTORIZED GYROSCOPE APPARATUS

Automation Grade
Semi-Automatic

Features
Variable speed motor, digital RPM indicator, adjustable weights

Test Range
Full angular range of precession

Frequency
50 Hz

Humidity
Up to 90% RH (non-condensing)

Number of Specimens
Single specimen

Resolution
0.01 RPM

Machine Weight
Approx. 25 kg

Test Speed
0 - 5000 RPM (variable)

Control Mode
Digital/Manual switch

Included Accessories
Weights set, instruction manual, power cord

Disc Thickness
Approx. 10 mm

Motor Type
Universal AC Motor (continuous variable speed)

Gyroscope Disc Material
Machined Steel

Base Construction
Rigid, heavy base for stability

Disc Diameter
Approx. 300 mm

Speed Indication
Digital Tachometer

Precession Control
Manual weight with lever arm

Finish
Powder-coated anti-corrosive finish

Safety Feature
Overload protection in motor

MOTORIZED GYROSCOPE APPARATUS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About MOTORIZED GYROSCOPE APPARATUS

Specification:

MOTORIZEDGYROSCOPE APPARATUS

Manufacturing done in compliance withthe set industry norms and guidelines, the offered Motorised GyroscopeApparatus has its quality highly standardized.

The finest raw materials and modernmachines applied in its making, give the product superior performance and alonger service life. In addition, the offered range is marked at the mostreasonable rate possible.

We are a prominent firm engaged inoffering Motorized Gyroscope Apparatus.

The product is provided with astainless steel disc mounted on a horizontal shaft.

The variable speed motor of theproduct is mounted on a trunnion frame having bearings in a yoke frame whichfreely rotates about its vertical axis.

To maintain a proper balance, theapparatus is installed with a weight pan on the other side of the rotor discwhich can be moved about three axis.

Scope of Experimentation

Observation of gyroscopic effect ofrotating disc

To study the gyroscopic effect of arotating disc

Experimental justification of theequation T = l w. wp for calculating the gyroscopic couple by observation andmeasurement of results for independent vibrations in applied couple T andprecession wp

Utilities Required

1m x 1m, 230 V AC, single phase

Bench area

Tachometer to find out RPM of disc

Electric supply

Technical Details

Stop Watch, Electronic

Variable speed of standard make

Supplied with Speed Control Unit

Weights: 2 kg, 1 kg, kg

Stainless Steel

Diameter: 300 mm x 12 mm thickprecisely balanced which can be rotated in 3 mutually perpendicular axis

Motor

Accurately marked scale & pointerto measure precession rate

Features:

Easy to operate

Accurate

Longer service life

Precision in Gyroscopic Analysis

With its meticulously machined steel disc and digital tachometer, the apparatus ensures highly accurate measurement of angular velocity and gyroscopic couple. Whether used for advanced engineering research or instructional purposes, users benefit from reliable data with immediate digital feedback and 0.01 RPM resolution.

Stable and Safe Testing Experience

Designed with a heavy, rigid base and powder-coated anti-corrosive finish, the apparatus offers both stability and longevity in demanding laboratory environments. Safety is prioritized through overload protection in the motor, safeguarding both the operator and equipment during continuous variable speed operations.

Versatility for Educational and Experimental Use

Suitable for a wide range of applications, this semi-automatic motorized gyroscope can be mounted on a table or bench top, accommodating full angular range testing for a single specimen. The included accessory set and easy-to-follow manual enhance usability for both educators and students.

FAQs of MOTORIZED GYROSCOPE APPARATUS:

Q: How does the Motorized Gyroscope Apparatus allow speed adjustments during experiments?

A: The apparatus features a universal AC motor with continuous variable speed control, enabling users to adjust the disc rotation from 0 to 5000 RPM using a digital/manual switch. The digital tachometer provides real-time RPM readings, allowing for precise operational adjustments.

Q: What advantages does the digital tachometer offer in this apparatus?

A: The built-in digital tachometer ensures immediate and accurate RPM measurement with a high resolution of 0.01 RPM. This facilitates precise tracking of angular velocity and enhances the reliability of experimental results.

Q: When would overload protection be activated during use?

A: Overload protection activates if the motor experiences higher-than-normal loads or operational stress, preventing damage to both the motor and the apparatus. This feature ensures safe and long-lasting operation, even during intensive testing.

Q: Where should the gyroscope apparatus be installed for optimal performance?

A: For best stability and accuracy, the apparatus should be mounted on a rigid table or bench in a well-ventilated laboratory space. Its robust base and anti-corrosive finish support safe usage in environments with up to 90% relative humidity and temperatures between 0C and 50C.

Q: What process is involved in measuring gyroscopic couple with this equipment?

A: The procedure involves rotating the machined steel disc at a calibrated speed and manually adjusting the precession using the lever arm and weight set. The force required for precession, alongside digital angular velocity data, lets users calculate the gyroscopic couple with 1% accuracy.

Q: How is the apparatus beneficial for engineering education and research?

A: This gyroscope apparatus enables students and researchers to visually and quantitatively study core gyroscopic principles. Its ease of use, accurate digital displays, and safety features make it an invaluable tool for understanding angular momentum, precession, and related phenomena.
