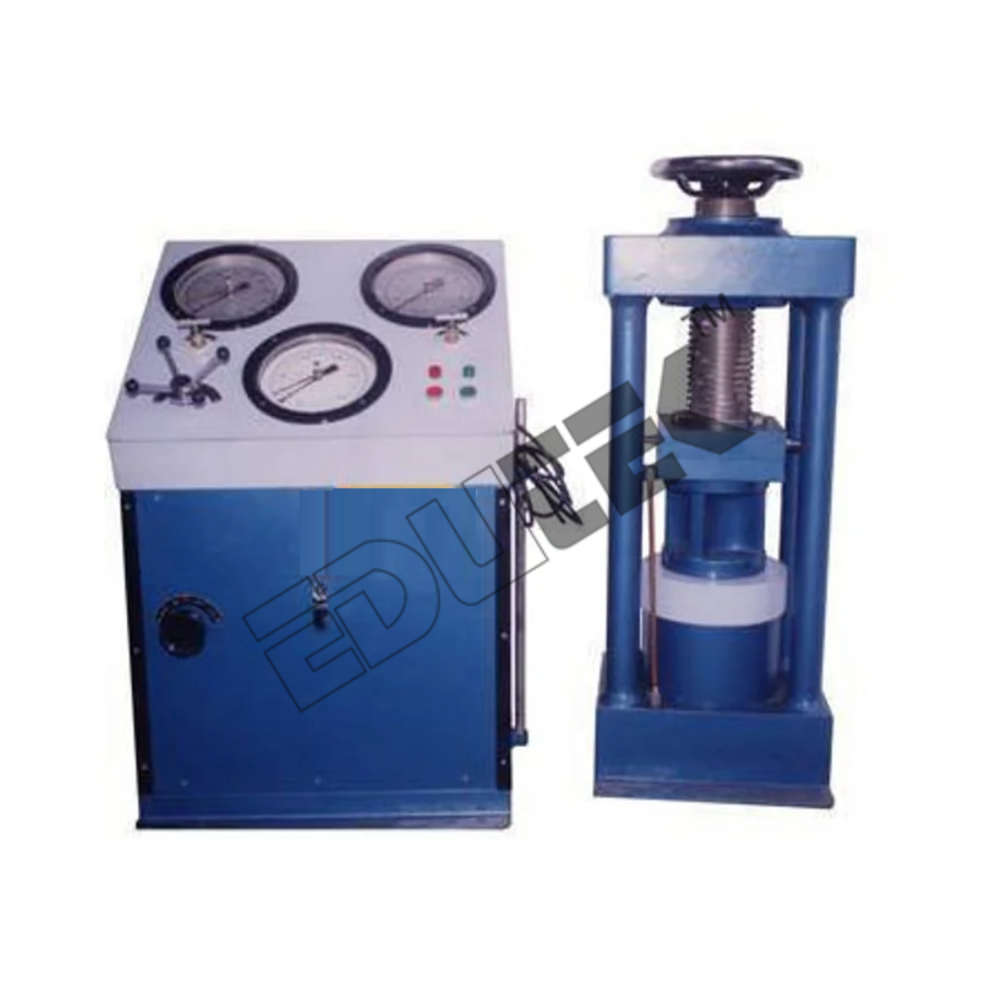

MOTORIZED COMPRESSION TENSION MACHINE

Get a Price/Quote

MOTORIZED COMPRESSION TENSION MACHINE Specification

Power Source
230 V AC supply

Core Components
Ball screw, load cell, AC motor, digital control unit

Accuracy
1% of indicated load

Capacity
100 kN (10,000 kgf)

Measurement Range
Up to 100 kN

Frequency
50 Hz

Feature
Dual operation for compression and tension, digital force indication, over-travel safety cut-off

Model No
MCTM-100

Voltage
230 V

Temperature Range
Ambient

Automation Grade
Semi-automatic

Equipment Materials
Heavy-duty mild steel frame

Type
Motorized Compression Tension Machine

Usage
Testing of compression and tension in materials

Display Type
Digital display with peak hold and reset function

Dimension (L*W*H)
1250 x 600 x 1700 mm

Weight
Approx. 200 kg

MOTORIZED COMPRESSION TENSION MACHINE Trade Information

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About MOTORIZED COMPRESSION TENSION MACHINE

Motorized Compression/Tension Machine

Use: For Compression & Tension Tests Machine For Tensile Test (500Kn) And Compression Test (2000 Kn)

Max. Tensile Test Load: 500 Kn (0.01 Kn Divisions)
Max. Compression Test Load: 2000 Kn (0.1 Kn Divisions)
Piston Stroke: 100 Mm
Span Between The Columns: 280 Mm
Manual Regulation Of The Load/Tensile Rate With Pacer

Accessories:

Compression Load Cell 2000 Kn Capacity (En 2) With Factory Calibration Certificate.
Two Channel Universal Digital Indicator For Dynamometers And Load Cells.
Remote Button Switch For Readout Units.

Precise Dual-Mode Testing Utility

Engineered for both compression and tension applications, this machine streamlines material strength evaluations with its semi-automatic, microprocessor-based controls. Equipped with both compression platens and tension clamps, it allows quick transitions between test types, ensuring robust and accurate performance. Its peak hold, reset, and digital force display features cater to diverse testing protocols in laboratory settings.

Advanced Safety and Durability Features

Ensuring user safety, the machine integrates mechanical and electronic limit switches, an emergency stop function, and over-travel cut-off to prevent misuse or accidents during operation. Its powder-coated mild steel frame resists corrosion and wear, providing long-lasting durability even with frequent laboratory use. Sound output remains low, supporting quiet working conditions.

FAQs of MOTORIZED COMPRESSION TENSION MACHINE:

Q: How does the Motorized Compression Tension Machine ensure measurement accuracy?

A: The machine uses a high-precision load cell combined with a digital display, providing force readings in both kilograms-force (kgf) and Newtons with an accuracy of 1% of the indicated load. Each unit is supplied with a standard calibration certificate for traceable and reliable testing performance.

Q: What safety mechanisms are incorporated in the equipment?

A: The machine includes mechanical and electronic limit switches, an emergency stop button, and an over-travel safety cut-off feature to minimize operational risks. These safeguards protect both users and the equipment during testing procedures.

Q: When should the machine be recalibrated?

A: It is recommended to recalibrate the machine annually or after any major maintenance, relocation, or intensive usage cycles to maintain testing accuracy. Calibration certificates are provided, ensuring compliance with IS, ASTM, and other relevant standards.

Q: Where is this machine best utilized?

A: This equipment is specifically designed for indoor laboratory environments where precision testing of materials is requiredsuch as research centers, quality control labs, educational institutions, and manufacturing facilities.

Q: What is the testing process for samples using this machine?

A: To test a sample, users install the appropriate grips (compression platens or tension clamps), set the desired test parametersincluding speed and load rangeon the microprocessor-based control panel, and initiate the test. The digital display provides real-time results and features peak hold and reset functions for data management.

Q: What are the main benefits of using the MCTM-100 model for material testing?

A: The MCTM-100 delivers reliable, repeatable results for both compression and tensile strength tests. Its wide speed and measuring range, digital controls, user-friendly interface, and built-in safety features offer efficiency, ease of use, and operational safety, all while minimizing maintenance demands.
