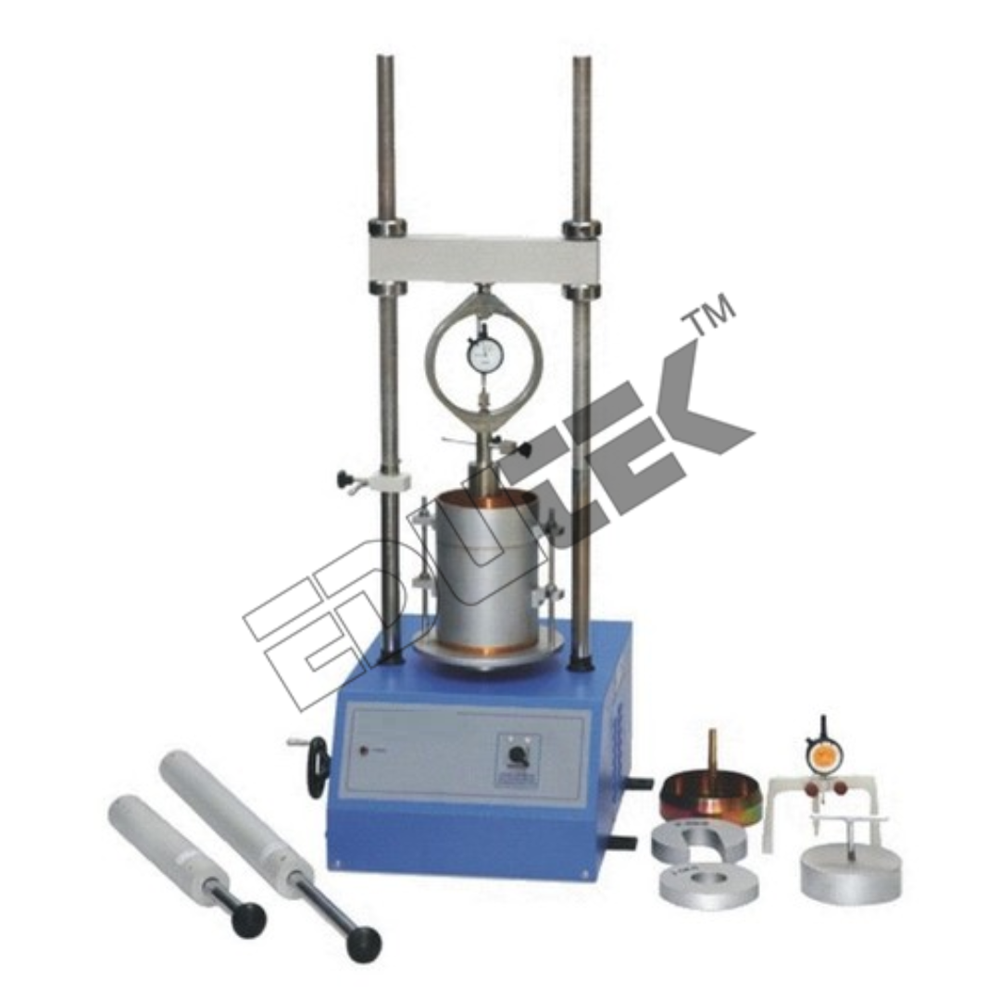

MOTORISED CBR MACHINE

Price 5000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MOTORISED CBR MACHINE Specification

Model No

Frequency
50 Hz Hertz (HZ)

Automation Grade
Automatic

Feature
Automatic motorised loading, two-speed operation, high accuracy

Capacity
50 kN Pcs/hr

Core Components
Loading frame, penetration piston, dial/digital gauge, electric motor, gear system

Accuracy
1% %

Voltage
220-240 V AC Volt (v)

Temperature Range
Up to 60 C (Dependent on test method) Celsius (oC)

Power Source
Electric

Measurement Range
0-50 kN

Equipment Materials
Heavy-duty Mild Steel frame, corrosion-resistant finish

Type
Automatic, Motorised Bench Type

Usage
Determination of CBR (California Bearing Ratio) for soils in laboratories

Display Type
Digital or Dial Gauge

Dimension (L*W*H)
Approx. 730 mm x 470 mm x 940 mm Millimeter (mm)

Weight
Approx. 100 - 150 kg Kilograms (kg)

Accessories Included
Moulds, collar, base plate, annular weights, surcharge weights

Sample Compatibility
Test cylindrical soil specimens in moulds of 150 mm diameter

Motor Power
1/2 HP single phase

Platen Size
150 mm diameter

Penetration Rate
1.25 mm/min and 1.5 mm/min, selectable

Loading Speed Selection
Dual Speed, for soaking and unsoaked test conditions

Control System
Forward, Reverse, and Stop Switches

Maximum Penetration Travel
100 mm

MOTORISED CBR MACHINE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About MOTORISED CBR MACHINE

MOTORISED CBR MACHINE

Use: CBR test for determining bearing capacity of soils

Specifications:

Consisting twin column frame and a motorized drive system.
Capacity: 50 kN.
Load Speeds: Selectable; 1.27 mm (0.5") or 1.0 mm.
Horizontal Clearance: 255 mm (10").
Vertical Clearance: 800 mm (31.5") maximum.
Platen size: 133 mm (5.24") diam.
Platen Travel: 105 mm (4.13").

Automatic Dual-Speed Performance

With selectable penetration rates of 1.25 mm/min and 1.5 mm/min, this motorised CBR machine offers reliable testing for both soaked and unsoaked soil samples. Operators can easily adjust test speeds for cemented road base evaluations, ensuring flexibility in laboratory applications.

Robust, High-Capacity Construction

Built with heavy-duty mild steel and a corrosion-resistant finish, the device endures regular laboratory use. Its 50 kN loading capacity and precision control allow for efficient testing of large cylindrical soil specimens, with intuitive forward, reverse, and stop switches enhancing safety and usability.

Comprehensive Accessories and Accurate Measurement

Supplied with essential moulds, collar, base plate, surcharge weights, and annular weights, the machine supports complete soil CBR testing. The inclusion of a digital or dial gauge display facilitates highly accurate readings, suitable for quality control and research environments in civil engineering.

FAQs of MOTORISED CBR MACHINE:

Q: How is the dual-speed feature beneficial in CBR testing?

A: The machine offers selectable penetration rates of 1.25 mm/min and 1.5 mm/min, allowing users to conduct both standard CBR tests (such as soaked and unsoaked conditions) as per different project specifications or standards, ensuring versatile application in soil mechanics laboratories.

Q: What types of soil specimens can be tested using this motorised CBR machine?

A: This equipment is designed for testing cylindrical soil samples contained in moulds of 150 mm diameter, commonly used for evaluating subgrade strength in road and pavement design.

Q: When should I use the soaking feature during CBR testing?

A: The soaking feature is employed for CBR tests that simulate worst-case moisture conditions. Typically, soaked CBR tests are required when assessing materials that will be exposed to water or high moisture in the field, such as in sub-base layers during monsoon seasons.

Q: Where is this CBR testing machine most commonly used?

A: It is primarily employed in geotechnical, civil engineering, and construction laboratories across India and internationally, especially by manufacturers, suppliers, exporters, and research institutions requiring accurate soil bearing analyses.

Q: What is the process for conducting a CBR test with this automatic machine?

A: The sample is prepared and placed in the mould, the platen and required weights are installed, and the desired penetration rate is selected. The automatic loading frame drives the penetration piston at the set speed while the digital or dial gauge records resistance readings until the desired penetration (up to 100 mm) is achieved.

Q: How does the machine ensure high accuracy during tests?

A: The robust electric motor, precise gear system, and high-quality digital or dial gauge provide measurement accuracy within 1%, ensuring reliable and repeatable results for quality control or research purposes.

Q: What are the main benefits of using an automatic motorised CBR machine?

A: Key benefits include increased testing efficiency, enhanced operational safety due to automatic loading and dual-speed control, robust construction for long-term durability, and adherence to IS:2720 (Part XVI), making it suited for both routine testing and advanced research projects.
