MINERAL JIG APPARATUS

500.0 INR/Piece

Get a Price/Quote

Product Details:

Usage Mechanical Engineering Lab Equipment
Application Mechanical Engineering Lab Equipment
Product Type MINERAL JIG APPARATUS
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

MINERAL JIG APPARATUS Price And Quantity

Minimum Order Quantity 1 Piece
Price 500.0 INR/Piece

MINERAL JIG APPARATUS Product Specifications

Usage Mechanical Engineering Lab Equipment
Product Type MINERAL JIG APPARATUS
Application Mechanical Engineering Lab Equipment

MINERAL JIG APPARATUS Trade Information

Payment Terms Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
Packaging Details Carton Box, Export Quality also Available
Main Export Market(s) Asia, Middle East, Africa
Main Domestic Market All India
Certifications ISO 9001, 14001, CE

Product Description

Specification:

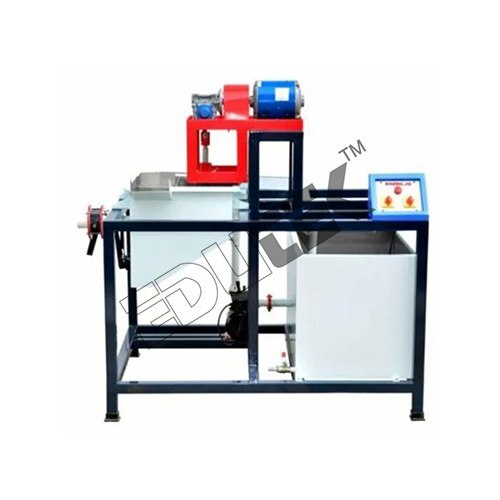

MINERAL JIG APPARATUS

A jig is a mechanical device used for separating materials of different specific gravity by the pulsation of a stream of liquid flowing through a bed of material.

The setup consists of plunger operated by crank mechanism connected to motor coupled with reduction gear box.Sump tank with pump is provided for water circulation.

Experimentation/learning objectives:

To calculate percentage recovery of small particle.

Utilities required:

Electric Supply: Single phase, 220 V AC, 50 Hz, 5-15 amp combined socket with earth connection. Earth voltage should be less than 5 volts.

Floor Area: 1.5 m x 1 m.

Water Supply
Floor Drain.
Material for Feed.

Technical details:

Mineral Jig Tank: Material Stainless Steel.

Jigging arrangement: Plunger (made of Stainless steel)connected to FHP motor Coupled with reduction gear box

Product Tank: Material Stainless Steel, capacity 10ltrs (approx.),02Nos.

Control Panel comprises of: Standard make on off switch, Mains Indicator etc.

Sump Tank: Material Stainless Steel, Compatible Capacity.

Water Circulation: 1/2 HP Pump.
