Methods Of Flow Measurement

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Methods Of Flow Measurement Specification

Accuracy
100 %

Weight
32 Kilograms (kg)

Dimension (L*W*H)
1145x712x980 Millimeter (mm)

Feature
Highly Efficient

Type
Training equipment

Usage
Laboratory

About Methods Of Flow Measurement

METHODS OF FLOW MEASUREMENT

Measuring the flow rate is an important aspect in measurement technology. There are several ways to measure the flow of fluids in pipes.

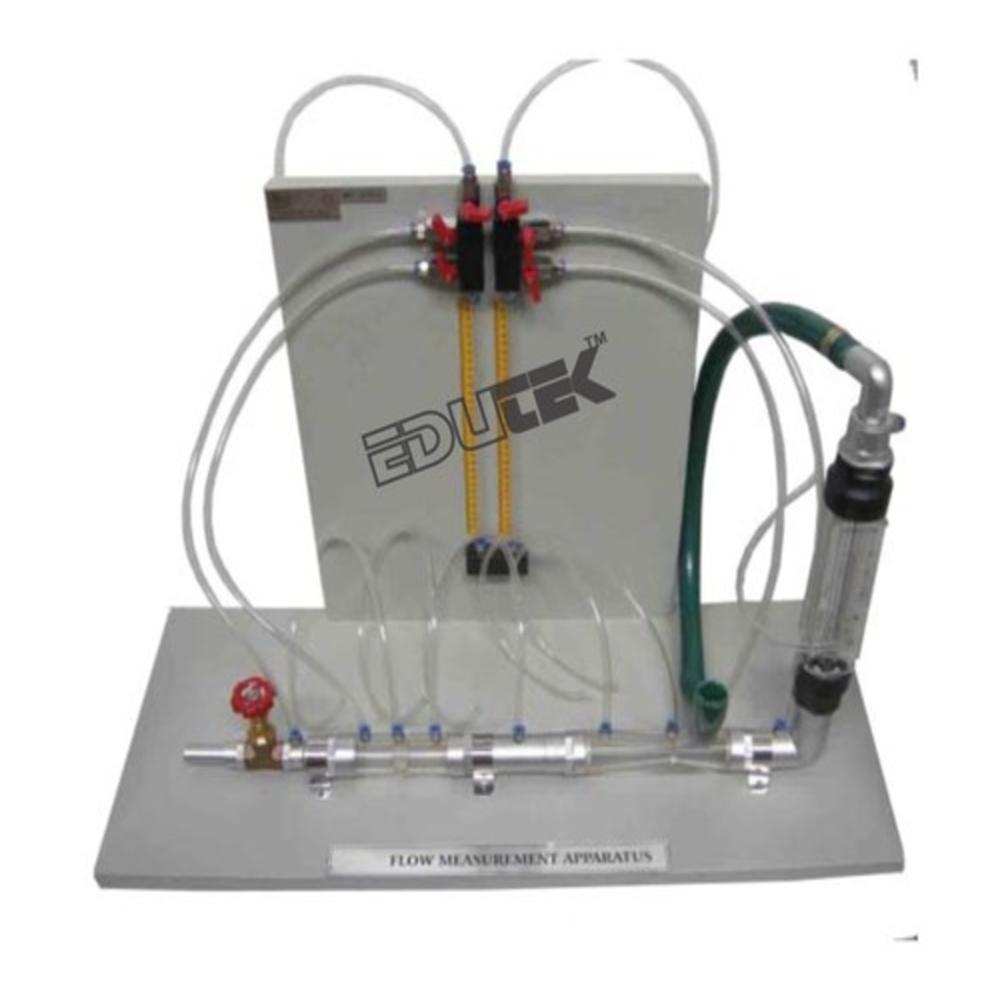

The experimental unit contains different measuring instruments to determine the flow rate. These instruments are designed with transparent cases in order to visualise how they operate and function. The methods include, for example, rotameters, a Venturi nozzle or orifice plate flow meter and measuring nozzle.

6 tube manometers is used in order to determine the pressure distribution in the Venturi nozzle or the orifice plate flow meter and measuring nozzle. The total pressure is measured by a Pitot tube. The experimental unit is positioned easily and securely on the work surface of the base module. The water is supplied and the flow rate measured by Alternatively, the experimental unit can be operated by the laboratory supply.

The well-structured instructional material sets out the fundamentals and provides a stepby- step guide through the experiments.

Learning Objectives / Experiments

Flow measurement with
Orifice plate flow meter and measuring nozzle
Venturi nozzle
Rotameter
Pressure measurement with Pitot tube
Comparison of different instruments for flow measurement
Determining the corresponding flow coefficients
Calibrating measuring instruments

Specification:

Different methods of flow rate measurement
Measuring instruments: orifice plate flow meter/measuring nozzle, Venturi nozzle and rotameter
6 tube manometers to determine the pressure distribution in Venturi nozzle, orifice plate flow meter and measuring nozzle
Measurement of the total pressure with Pitot tube
Flow rate determined by base module
Water supply Base Unit or via laboratory supply

Technical Data:

Venturi nozzle: A=84...338mm²
Angle at the inlet: 10,5°
Angle at the outlet: 4°
Orifice plate flow meter: diameter=14mm
Measuring nozzle: diameter=18,5mm
Rotameter: max. 1700L/h
6 tube manometers: 390mmWC

Dimensions and Weight:

LxWxH: 1145x712x980mm
Weight: approx. 32kg

Precision in Laboratory Flow Measurement

This equipment stands out with its 100% accuracy, ensuring reliable results in laboratory experiments. Its high efficiency optimizes measurement processes, making it particularly suitable for educational and training setups. The robust build and quality design from Indian manufacturers ensure lasting performance and operational stability.

Perfect for Training and Academic Use

Purposefully created as a training tool, the equipment is tailored to teach methods of flow measurement effectively. Its standardized dimensions allow seamless integration into laboratory workstations, while its moderate weight of 32 kilograms facilitates manageable placement without compromising stability.

FAQs of Methods Of Flow Measurement:

Q: How is the Methods Of Flow Measurement equipment used in laboratories?

A: The equipment is primarily utilized for conducting and demonstrating various flow measurement techniques in laboratory settings. With its 100% accuracy, it ensures that students and researchers can precisely study the flow dynamics of different fluids during experiments.

Q: What are the benefits of using this training equipment for flow measurement?

A: This apparatus offers highly efficient and accurate results, making it invaluable for learning and research. Its robust design and standardized dimensions facilitate ease of use and maintenance, while the high precision helps in understanding fundamental principles comprehensively.

Q: When is this equipment most beneficial for laboratory training?

A: It is especially beneficial during instructional sessions where mastering flow measurement techniques is essential. Its accuracy and efficiency make it ideal for laboratory courses, research studies, and hands-on technical training modules.

Q: Where is this Methods Of Flow Measurement equipment typically installed?

A: This instrument is designed for laboratory use and is commonly found in academic institutions, research organizations, and technical training centers. Its dimensions enable easy integration into standard laboratory benches in such environments.

Q: What process does this equipment use to achieve 100% accuracy in measurements?

A: The device employs precise calibration techniques and high-quality sensors to ensure exact flow readings. Its design minimizes external interference, allowing practitioners to obtain repeatable and highly reliable measurements during demonstrations or experiments.

Q: How does its efficient design benefit laboratories?

A: The highly efficient design reduces setup time and energy consumption while maximizing data output. This saves valuable time for trainers and researchers and leads to streamlined laboratory routines.

Q: Who manufactures and exports this flow measurement equipment?

A: Leading manufacturers and exporters based in India design, produce, and supply this equipment to academic and industrial institutions worldwide, ensuring high standards of quality and reliability are met.
