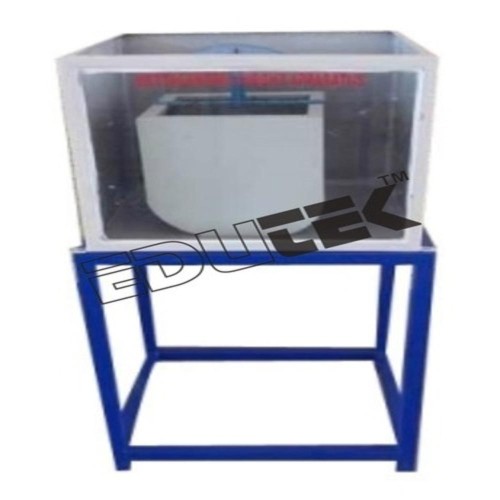

Metacentric Height Apparatus

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Metacentric Height Apparatus Specification

Feature
Instruction manual provided, Detachable components, Easy assembly

Model No
Labcare/LCS-MH-01

Capacity
1 Tank (approx. 20L) for floating body

Automation Grade
Manual

Accuracy
1 mm

Measurement Range
Up to 500mm metacentric height

Temperature Range
Ambient

Core Components
Floating Body, Plumb Line, Adjustable Weights, Scale, Support Frame

Power Source
Not required (Manual)

Equipment Materials
Transparent Acrylic Tank, Stainless Steel Scale, Brass/Aluminium Float

Type
Metacentric Height Apparatus

Usage
Measurement of metacentric height and study of stability of floating bodies

Dimension (L*W*H)
Approx. 600mm x 400mm x 500mm

Weight
About 8-10 kg

Metacentric Height Apparatus Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Days after Acceptance (DA), Delivery Point (DP), Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Cash Against Delivery (CAD), Cash in Advance (CID), Cheque

Delivery Time
2 Week

Sample Available
Yes

Sample Policy
If order is confirmed we will reimburse the sample cost

Main Export Market(s)
Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia

Main Domestic Market
South India, East India, Andaman and Nicobar Islands, Assam, Arunachal Pradesh, Bihar, Chandigarh, Goa, Jammu and Kashmir, Jharkhand, Madhya Pradesh, Maharashtra, Mizoram, Punjab, Rajasthan, Sikkim, Telangana, Tripura, West Bengal, Himachal Pradesh, Manipur, Meghalaya, Pondicherry, Nagaland, Daman and Diu, Uttarakhand, Dadra and Nagar Haveli, Lakshadweep, Uttar Pradesh, Haryana, Delhi, Gujarat, Karnataka, Tamil Nadu, North India, Andhra Pradesh, Kerala, Central India, Odisha, West India, Chhattisgarh, All India

Certifications
AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.

About Metacentric Height Apparatus

Metacentric Height Apparatus:-

Metacentric Height Apparatus Complete with Collecting For the purpose of providing the best Metacentric Height Apparatus to our clients, we use raw materials of the finest quality and strictly as per the set industrial standards, the quality standard never deteriorates. Made available in the market at a very competitive price, the offered product of impeccable functionality and efficiency, is one of the best available in the market.

Technical Specifications:

Pontoon: Size 300 x 300 mm (approx.) with a Horizontal Guide Bar for aliding weight and Removable Strips, Graduated arc with Pointer with moveable hanger And set of weightsWater Tank: Size 550 x 500x 400 mm (approx.)Front Window of Tank: Made of Glass/Perspex .A set of weights is supplied with the apparatus Instruction Manual: An ENGLISH instruction manual will be provided along with the Apparatus Tanks will be made of Stainless Steel Pendulum and graduated are for accurate measurement of Tilt angle

Comprehensive Fluid Stability Studies

This apparatus enables direct experimentation on the stability of floating bodies, which is a fundamental aspect of fluid mechanics. Featuring a transparent acrylic tank, users can easily observe and record data in real-time. The system supports various floating body shapes, making it versatile for multiple academic and research scenarios. Its sturdy, pre-calibrated construction ensures precision and repeatability in results.

Easy-to-Use & Maintain

Designed for effortless assembly and disassembly, the Metacentric Height Apparatus is straightforward to set up, clean, and service. The accessible instruction manual and detachable components simplify laboratory routines, while manual operation means theres no need for external power sources. This reliability and simplicity make it ideal for regular student practicals and research experiments.

FAQs of Metacentric Height Apparatus:

Q: How does the Metacentric Height Apparatus measure the stability of floating bodies?

A: The apparatus measures stability by allowing users to place a floating body in the tank, adjust weights, and use the plumb line and pointer to record tilt angles as the body responds. The graduated scale provides precise measurement of the metacentric height, indicating the stability of the floating body under test.

Q: What materials are used in the construction of the Metacentric Height Apparatus?

A: The tank is made from clear, durable acrylic for easy observation. The scale is stainless steel for rust resistance, while the float is either brass or aluminium depending on the experiment. These quality materials ensure longevity and accurate results.

Q: When should I use a rectangular versus a circular float with this apparatus?

A: The choice between rectangular and circular floats depends on the specific experiment and educational objective. Rectangular floats are ideal for demonstrating stability in flat-sided vessels, while circular floats help study the dynamics of symmetry in floating bodies. Both types are provided for comprehensive learning.

Q: Where is the Metacentric Height Apparatus best utilized?

A: This apparatus is ideally suited for fluid mechanics laboratories, engineering institutes, and research centers. Its clarity, precision, and ease of use make it a valuable addition for both teaching and experimental analysis in academic and industrial environments.

Q: What is the process for assembling and maintaining the Metacentric Height Apparatus?

A: Assembly is straightforward due to the pre-calibrated, detachable parts and guidance from the included instruction manual. Maintenance simply involves regular cleaning of the acrylic tank and components using non-abrasive materials to ensure clarity and accuracy are preserved.

Q: How is the measurement of metacentric height performed using this apparatus?

A: Users place the floating body in the filled tank, apply weights, and observe the plumb lines deflection from a vertical reference, measured using the mm-graduated scale. This process helps calculate the metacentric height precisely, providing insight into the bodys equilibrium and stability.

Q: What are the key benefits of using this apparatus in fluid mechanics?

A: The apparatus offers accurate, visual, and interactive demonstrations of floating body stability, enhancing conceptual understanding. Its robust design, ease of use, and manual operation make it suitable for repeated experimental work and institutional training without the need for electrical power.
