MEASUREMENT OF PEAK, AVERAGE & RMS VALUE OF A AC SIGNAL WITH BAKELITE PANEL & ROUND METERS

Price 1200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MEASUREMENT OF PEAK, AVERAGE & RMS VALUE OF A AC SIGNAL WITH BAKELITE PANEL & ROUND METERS Specification

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Features

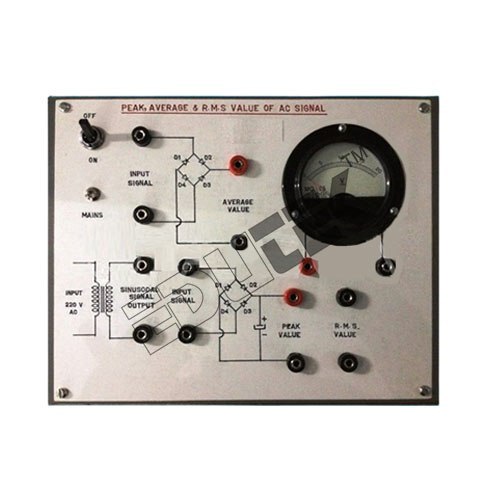

Instrument comprises of Step down Transformer, Circuit Diagram for Peak & Average Value measurement Printed and connections of important points brought out at Sockets/Terminals.

Product Type
MEASUREMENT OF PEAK, AVERAGE & RMS VALUE OF A AC SIGNAL WITH BAKELITE PANEL & ROUND METERS

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Function
MEASUREMENT OF PEAK, AVERAGE & RMS VALUE OF A AC SIGNAL WITH BAKELITE PANEL & ROUND METERS

Warranty
1 Year

MEASUREMENT OF PEAK, AVERAGE & RMS VALUE OF A AC SIGNAL WITH BAKELITE PANEL & ROUND METERS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About MEASUREMENT OF PEAK, AVERAGE & RMS VALUE OF A AC SIGNAL WITH BAKELITE PANEL & ROUND METERS

Specification:

MEASUREMENT OF PEAK, AVERAGE & RMS VALUE OF A AC SIGNAL WITH BAKELITE PANEL & ROUND METERS

Instrument comprises of Step down Transformer, Circuit Diagram for Peak & Average Value measurement Printed and connections of important points brought out at Sockets/Terminals.

Comprehensive Signal Measurement

This instrument streamlines the process of measuring peak, average, and RMS values of AC signals, catering to the diverse requirements of engineering electronics. Its robust Bakelite panel and clear round meters provide durability and ease of reading, making it a dependable choice for both academic and industrial applications.

User-Friendly Design & Features

With essential circuit diagrams printed directly on the panel and all significant test points made available at sockets or terminals, users enjoy an efficient setup. The inclusion of a step-down transformer ensures safe voltage handling, improving both functionality and user safety during experiments or demonstrations.

FAQ's of MEASUREMENT OF PEAK, AVERAGE & RMS VALUE OF A AC SIGNAL WITH BAKELITE PANEL & ROUND METERS:

Q: How do I use this instrument to measure the peak, average, and RMS values of an AC signal?

A: To measure these values, connect your AC source to the instrument as indicated in the printed circuit diagram on the Bakelite panel. Use the corresponding terminals or sockets for peak and average value measurements. The round meters provide clear readouts for each measurement type.

Q: What are the main benefits of using a Bakelite panel and round meters in this instrument?

A: Bakelite panels offer high durability and effective insulation, ensuring user safety during operation. Round meters allow for easy and accurate readings of the measured values.

Q: When is this measurement instrument typically used in engineering?

A: This instrument is extensively used in educational settings, electronics laboratories, and quality control departments to precisely measure AC signals' peak, average, and RMS values during theoretical studies or practical experiments.

Q: Where are the main connection points located for easy access?

A: All essential connection points are routed to clearly labeled sockets or terminals on the Bakelite panel, facilitating quick setup and convenient connections.

Q: What is the process involved in measuring AC signal values with this equipment?

A: Begin by consulting the printed circuit diagram for configuration. Connect the AC input to the step-down transformer, then follow the diagram to connect relevant measurement terminals. Read the results from the round meters for peak, average, or RMS values.
