MAGNETIC FIELD

Product Description

Specification:

MAGNETIC FIELD

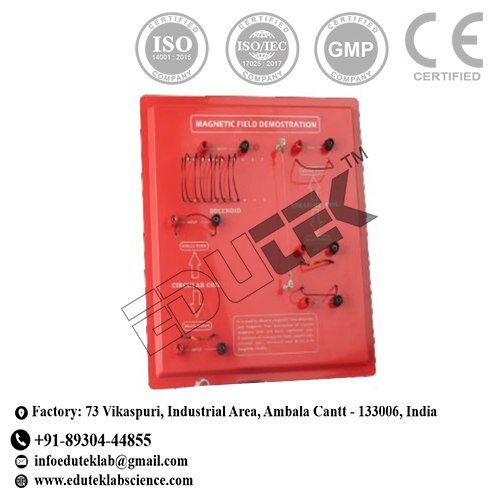

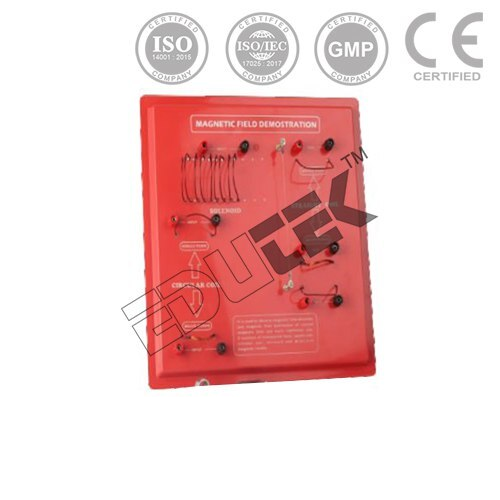

Visibly demonstrates the magnetic field patterns associated with the different shapes of current carrying conductors.

Comprises three conductors, each of different shape / configuration “ straight rectangular, circular loop and solenoid “ all mounted on a clear,

transparent acrylic base.

Each configuration has conductor wire consisting of 6 turns of 0.6mm

diameter copper wire and is provided with a pair of 4mm sockets to connect them to a low voltage

DC power source, with output current not exceeding 5A (maximum equivalent current through conductor being 30A).

Using the included iron filings and 8 magnetic compasses (13mm diameter) lets you investigate the associated field and flux patterns.
