Losses In A Pipe System

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Losses In A Pipe System Specification

Warranty
1 year

Dimension (L*W*H)
1640x720x1380 Millimeter (mm)

Feature
Highly Efficient

Accuracy
100 %

Weight
66 Kilograms (kg)

Type
LOSSES IN A PIPE SYSTEM

Usage
Laboratory

About Losses In A Pipe System

LOSSES IN A PIPE SYSTEM

Pressure losses occur during the flow of real fluids due to friction and turbulence (vortices). Pressure losses in pipes, piping elements, fittings and measuring instruments (e.g. flow meter, velocity meter) cause pressure losses and must therefore be taken into account when designing piping systems. Allows to study the pressure losses in pipes, piping elements and shut-off devices. In addition, the differential pressure method is presented for measuring the flow rate.

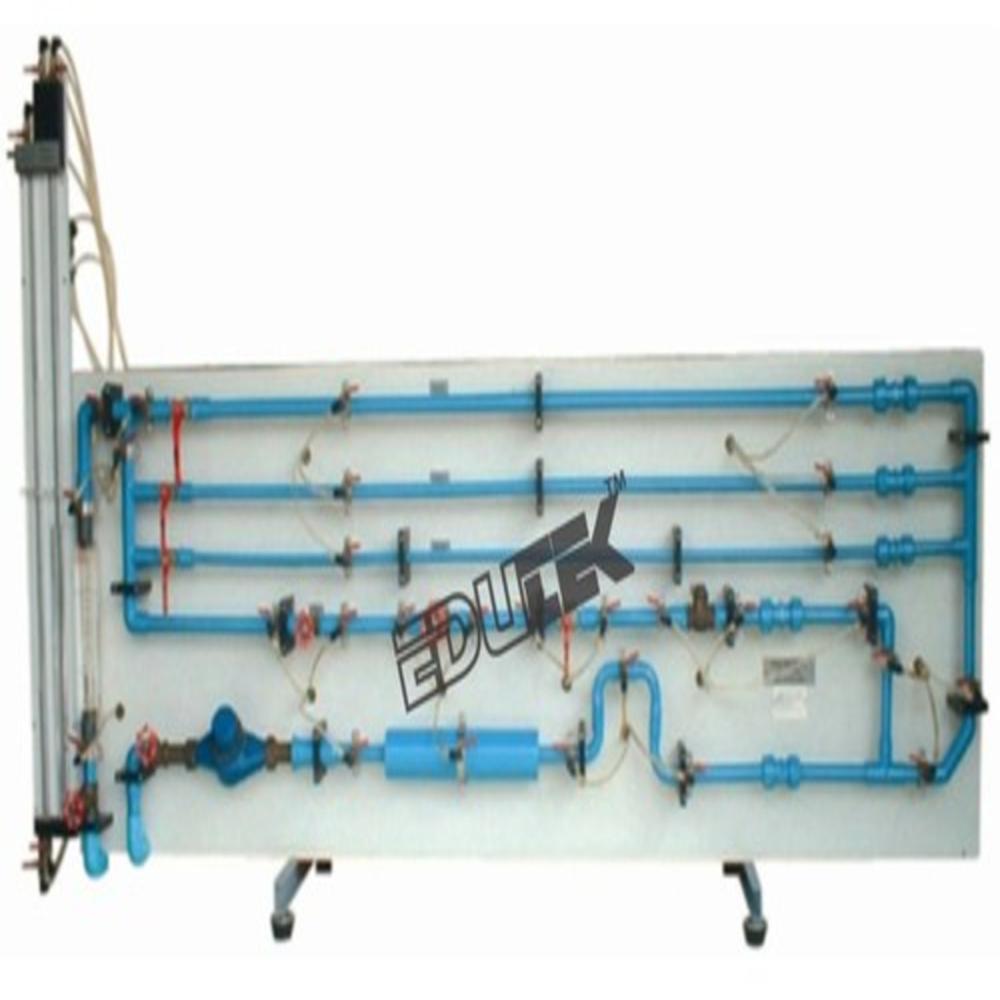

The experimental unit contains six different pipe sections capable of being shut off individually. The pipe sections are equipped with piping elements such as bends, elbows and branches. In one pipe section, different shut-off devices and measuring objects are installed to determine the flow rate. The measuring objects are made of transparent material and provide excellent insight into the inner structure. The pressure measuring points in the piping system are designed as annular chambers. This creates a largely interference-free pressure measurement.

The experiments measure the pressure losses in pipes and piping elements, such as branches and bends. The opening characteristic of the shut-off devices are also recorded.The pressures are measured with tube manometers.

The experimental unit is positioned easily and securely on the work surface of the base module. The water is supplied and the flow.

rate measured. Alternatively, the experimental unit can be operated by the laboratory supply.

The well-structured instructional material sets out the fundamentals and provides a step -by- step guide through the experiments.

Learning Objectives / Experiments

Pressure losses in pipes, piping elements and fittings
How the flow velocity affects the pressure loss
Determining resistance coefficients
Opening characteristics of angle seat valve and gate valve
Familiarisation with various measuring objects for determining flow rate:
Venturi nozzle
Orifice plate flow meter and measuring nozzle

Specification:

Investigation of pressure losses in piping elements and shut-off devices
Different measuring objects for determining flow rate according to the differential pressure method
Six pipe sections capable of being individually shut off, with different piping elements: sudden contraction, sudden enlargement, Y-pieces, T-pieces, corners and bends
One pipe section to hold interchangeable shut-off/measuring objects
Measuring objects made of transparent material: Venturi nozzle, orifice plate flow meter and measuring nozzle
Shut-off devices: angle seat valve, gate valve
Annular chambers allow measurement of pressure without interaction
2 twin tube manometers for measuring the pressure difference
Flow rate determined by base module
Water supply using base module or via laboratory supply

Technical Data:

Pipe section to hold fittings or measuring objects

20x1,5mm, PVC

Pipe sections:

Inside diameter: d
Straight: d=20x1,5mm, length: 800mm, PVC
Sudden contraction: d=32x1,8-20x1,5mm, PVC
Sudden enlargement: d=20x1,5-32x1,8mm, PVC
With 2x Y-piece 45° and 2x T-piece
With 2x 90° elbow/bend: d=20x1,5mm, PVC and 2x 45° elbow: d=20x1,5mm, PVC
2x twin tube manometers: 0...1000mmWC

Measuring range:

Pressure: 0...0,1bar

Dimensions and Weight:

LxWxH: 1640x720x1380mm
Weight: approx. 66kg

Precision in Loss Measurement

Designed with 100% accuracy, our Losses In A Pipe System unit enables exact determination of pressure losses within pipe networks. This ensures precise data collection, vital for laboratory studies and performance analysis in civil, mechanical, and fluid engineering disciplines.

Optimized Laboratory Features

With a weight of 66 kg and compact dimensions of 1640x720x1380 mm, the device is easy to install and use in laboratory settings. Its highly efficient design streamlines the testing process, saving valuable time and delivering reliable results for instructors and researchers.

Assured Quality and Support

Sourced from a reputable exporter, manufacturer, and supplier in India, this system is backed by a one-year warranty. Comprehensive support and service guarantee smooth operation and peace of mind for users during experimentation and research.

FAQs of Losses In A Pipe System:

Q: How does the Losses In A Pipe System apparatus achieve 100% accuracy in measurements?

A: The apparatus uses precision-engineered components and advanced sensors to accurately monitor and record pressure losses within pipe systems, making it suitable for rigorous laboratory analyses.

Q: What is the primary benefit of using this system in a laboratory setting?

A: It provides highly efficient and reliable data collection, contributing to improved learning outcomes and innovative research in fluid mechanics and related fields.

Q: When should this system be used during laboratory experiments?

A: The unit is suited for use when conducting fluid flow analysis, pipe friction studies, or any experiment requiring precise measurement of losses in pipe networks.

Q: Where is the Losses In A Pipe System manufactured and supplied from?

A: This apparatus is manufactured, exported, and supplied from India, ensuring compliance with quality standards for educational and research laboratories.

Q: What is the process for setting up and operating the Losses In A Pipe System in the lab?

A: Installation involves positioning the unit according to its dimensions, connecting to the required fluid supply, and following operating guidelines to measure system losses with its accurate sensors.

Q: How does the warranty benefit laboratory users?

A: With a one-year warranty, users are assured of prompt support and service, minimizing downtime and ensuring consistent performance during research activities.
