LOSSES DUE TO PIPE FITTING, SUDDEN ENLARGEMENT & CONTRACTION APPARATUS

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

LOSSES DUE TO PIPE FITTING, SUDDEN ENLARGEMENT & CONTRACTION APPARATUS Specification

Application
Fluid Mechanics Lab Equipment

Product Type
LOSSES DUE TO PIPE FITTING, SUDDEN ENLARGEMENT & CONTRACTION APPARATUS

Usage
Fluid Mechanics Lab Equipment

LOSSES DUE TO PIPE FITTING, SUDDEN ENLARGEMENT & CONTRACTION APPARATUS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About LOSSES DUE TO PIPE FITTING, SUDDEN ENLARGEMENT & CONTRACTION APPARATUS

Specification:

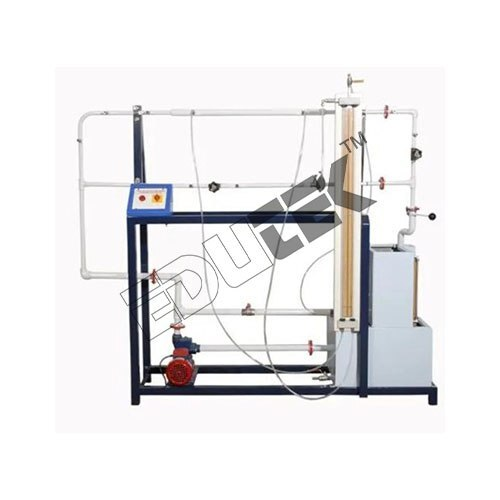

LOSSES DUE TO PIPE FITTING, SUDDEN ENLARGEMENT &CONTRACTION APPARATUS

The set up consists of a 1/2 Inchbend and elbow, a sudden expansion & sudden contraction fitting from 15mmto 25mm, ball valve and gate valve.

Pressure tapings are provided atinlet and outlet of these fittings under test.

A differential manometer fitted inthe line gives pressure loss of individual fittings. Present setup isself-contained water re-circulating unit, provided with a sump tank and acentrifugal pump etc.

Flow control valve and by-pass valveare fitted in water line to conduct the experiment on different flow rates.Flow rate of water is measured with the help of measuring tank and stop watch.

Sump Tank Capacity: 50 Ltrs

Flow Measurement: Using Measuring Tank with Pedometer,

Control Panel Comprises Of: Standard Make On/off Switch, MainsIndicator, Etc.

Capacity: 25 Ltrs

Manometer Fluid: Mercury (Hg) - 250 Gm

Sudden Enlargement: From 15 mm to 25 mm

Sudden Contraction: From 25 mm to 15 mm

Bend: 1/2

Elbow: 1/2

Ball Valve: 1/2

Gate Valve: 1/2

Water Circulation: FHP Pump, Crompton Makes
