Send InquiryLoad Frame
MOQ : 1 Unit
Load Frame Specification
- Temperature Range
- 0 C to 50 C Celsius (oC)
- Classification
- Geotechnical Engineering / Materials Testing
- Power Source
- Electrical
- Automation Grade
- Manual
- Usage
- Conducting strength tests like Triaxial, CBR, and Unconfined Compression
- Measurement Range
- 0 - 100 kN
- Voltage
- 220V Volt (v)
- Capacity
- 100 kN Kg
- Application
- Civil Engineering Labs, Research Facilities
- Product Type
- Geotechnical Testing Machine / Universal Tester
- Feature
- Durable construction easy operation
- Material
- Steel, Electric Motor
- Warranty
- 1 Year
- Frequency
- 50 Hz Hertz (HZ)
- Color
- Select (Typically Blue/Grey Steel)
- Operate Method
- Strain Control: The motor drives the lower platen upwards at a pre-set speed, causing the specimen to compress at a controlled strain rate against a fixed load sensor (Proving Ring/Load Cell)
- Accuracy
- 1% %
- Core Components
- Frame Load Cell Motor
- Equipment Materials
- High-Grade steel
- Type
- Universal Load Frame
- Display Type
- Analog
- Dimension (L*W*H)
- 800 x 600 x 1500 mm Millimeter (mm)
- Weight
- Approx. 120 kg Kilograms (kg)
About Load Frame

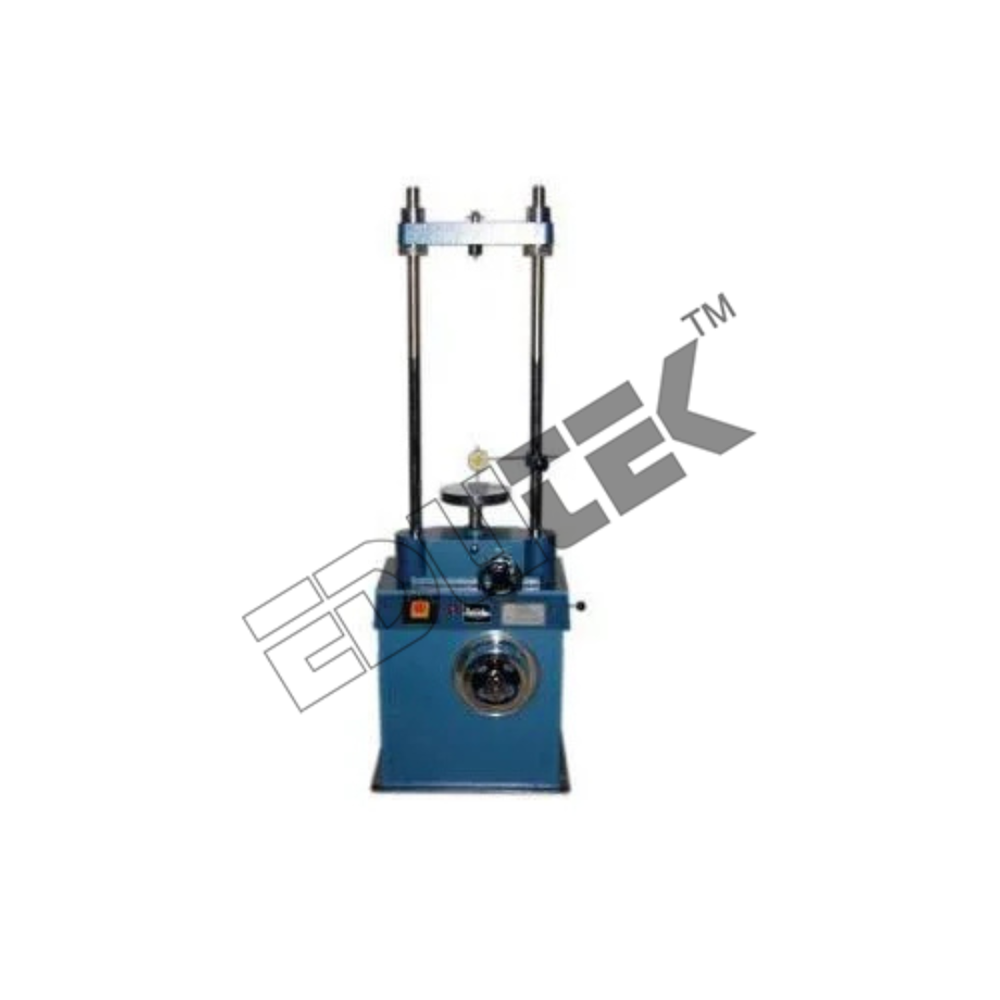

Load Frame
Load frames are used to apply load on the test specimen. The capacity and speed depends on the requirement of a particular test. Load frames are used in C.B.R. triaxial, unconfined compression test etc.
FAQs of Load Frame:
Q: What is the measurement range of the Load Frame (LF-100)?
A: The Load Frame (LF-100) has a measurement range of 0 - 100 kN.Q: What is the warranty period for the Load Frame (LF-100)?
A: The Load Frame (LF-100) comes with a 1-year warranty.Q: What are the core components of the Load Frame (LF-100)?
A: The core components of the Load Frame (LF-100) include Frame, Load Cell, and Motor.Q: What type of material is used for the construction of the Load Frame (LF-100)?
A: The Load Frame (LF-100) is constructed using high-grade steel material for durability.Q: What is the accuracy of the Load Frame (LF-100)?
A: The Load Frame (LF-100) offers an accuracy of 1%.
