LIQUID PHASE CHEMICAL REACTOR APPARATUS

About LIQUID PHASE CHEMICAL REACTOR APPARATUS

Specification:

LIQUID PHASE CHEMICAL REACTOR APPARATUS

Description

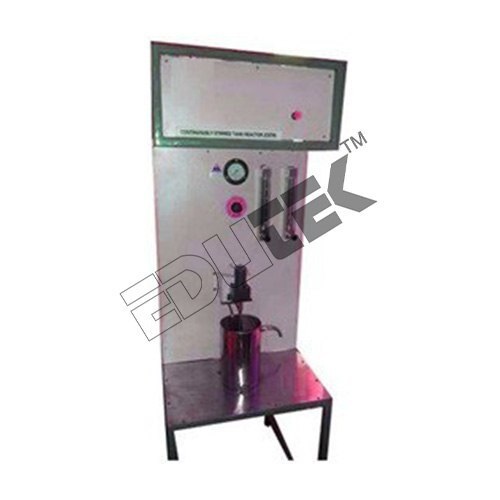

Present set-up consists of a reactorvessel fitted with variable speed agitator and detachable baffles. This unit isdesigned to study chemical kinetics. Reactants are fed to the reactor, usingpump and flow is regulated and monitored by individual Rotameter. An adjustableoverflow device is provided in the reactor to conduct the experiment ondifferent reactor volume.

A Stainless-Steel Coil is immersed inthe reactor through which the hot water supply is circulated. Temperature ofthe hot water is controlled by means of Temperature Controller and it enablesthe students to enhance the experimentation capabilities

Experimentation/Learning Objectives

To study the chemical kinetics.

To study the effect of residencetime.

To study the effect of mixing speed.

To study the effect of temperature on chemical reaction.

Utilities Required

Electricity Supply: Single Phase, 220V AC, 50 Hz, 5-15 Amp combined socket with earth connection. Earth voltage should be less than 5 volts.

Water Supply

Floor Drain.

Floor Area Required: 1.5 m x 1 m.

Instruments, Laboratory wares andChemicals required for analysis as per the system adopter

Technical Details

Reactor: Material SS, Capacity (1-2) Ltrs.

Agitator: Variable speed with speed control facility from 0 150 RPM.

Impeller: 4 square bladed (1 No.), Material- Stainless Steel.

Baffles: Detachable.

Piping: PVC.

Feed Tank (2Nos.): Material Stainless Steel, Capacity20 Ltrs. Each

Discharge Tank (1No.): Material PVC, Capacity 40 Ltrs.

Water Bath: Material Stainless Steel, Double wall, insulated withCeramic Wool.

Heater: Nichrome wire Heater

Pumps (3Nos.): 2 Nos. (For Chemical), 1 No. (For hot watercirculation).

Advanced Chemical Resistance and Safety

Crafted from borosilicate glass, the reactor offers high chemical resistance, ensuring durability when used with a wide range of reagents. Integrated safety measures, such as a built-in pressure relief valve, over-temperature cutoff, and leakage protection, provide a secure operating environment for laboratory personnel.


Versatile Stirring and Heating Control

The magnetic or overhead stirrer features variable speed control ranging from 100 to 1500 rpm, allowing for optimal mixing efficiency. Coupled with an integrated heating mantle and digital PID controller, users can achieve precise temperature maintenance from ambient up to 150C, all displayed on a real-time digital LCD panel.


User-Friendly Sampling and Monitoring

A dedicated sampling port facilitates easy extraction of samples during experiments without halting the process. The apparatus is compatible with pH probes and features an intuitive digital display, making it simple to monitor critical reaction parameters and ensure high-quality results.
