Liquid-Liquid Extraction in Packed Tower

Send Inquiry

Request To Call Back

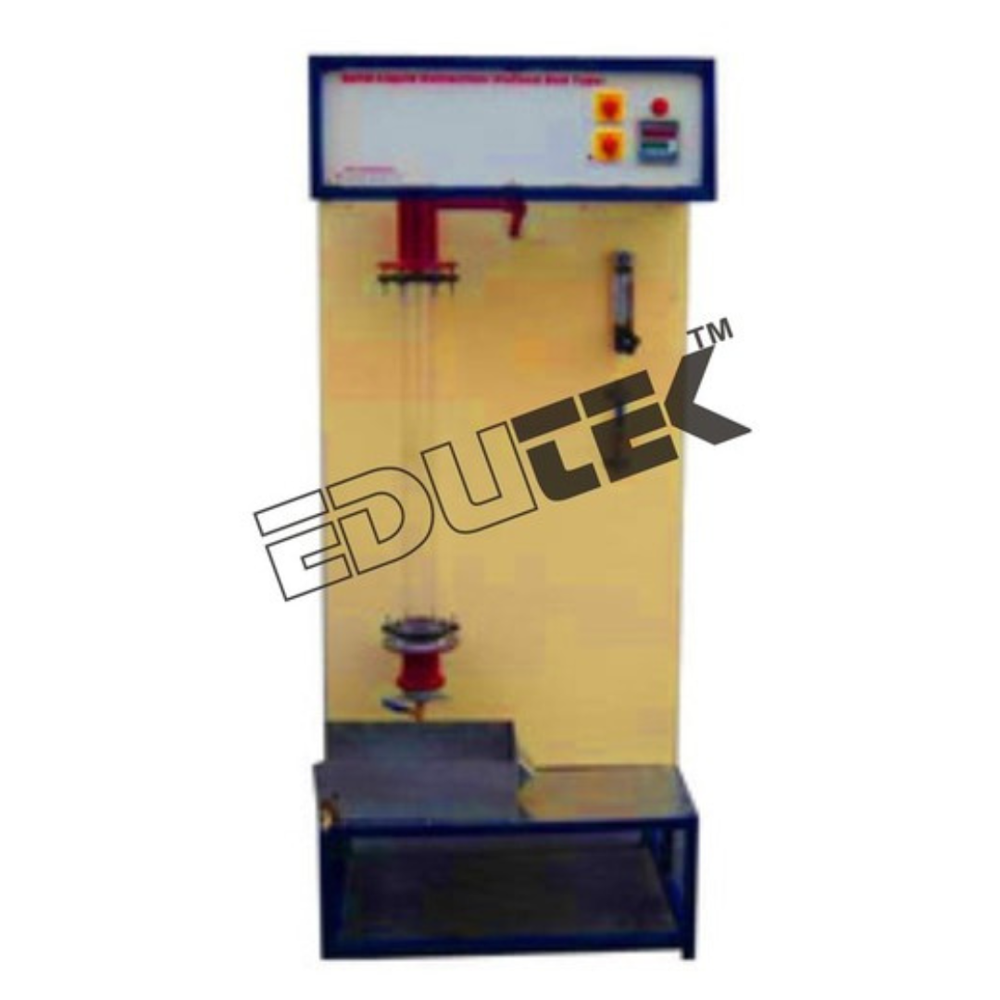

Liquid-Liquid Extraction in Packed Tower

Price 500.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Liquid-Liquid Extraction in Packed Tower Specification

Power Source
230 V AC supply

Measurement Range
0 10 L/hr

Feature
Visual observation of mass transfer

Accuracy
1% for flow rates °C

Capacity
2 10 L/hr (customizable on request) Pcs/hr

Model No

Voltage
230 V Volt (v)

Automation Grade
Semi-automatic

Frequency
50 Hz Hertz (HZ)

Temperature Range
Up to 100 C Celsius (oC)

Core Components
Packed glass tower, feed tank, extract tank, solvent tank, peristaltic pumps, instrumentation system

Equipment Materials
Borosilicate glass column, SS support structure

Type
Laboratory Scale Liquid-Liquid Extraction Packed Tower

Usage
Educational and research demonstration of liquid-liquid extraction

Display Type
Digital display for process parameters

Dimension (L*W*H)
1200 mm 450 mm 1600 mm Millimeter (mm)

Weight
Approx. 45 kg Kilograms (kg)

Packing Material
Raschig rings/Glass beads

Application
Extraction of miscible/immiscible liquids for mass transfer studies

Phase Inlet/Outlet Ports
Standard 1/2" (BSP)

Service Support
Available on request

Operation Mode
Continuous/Batch

Recirculation Pump Capacity
0.18 HP

Control System
Digital display with independent controls for both phases

Installation
Tabletop/Movable with caster wheels

Safety Features
Overload relay, Emergency stop, Level sensors

Column Height
1000 mm to 1500 mm

Column Diameter
50 mm to 100 mm

Liquid-Liquid Extraction in Packed Tower Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Telegraphic Transfer (T/T), Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C)

Delivery Time
2 Week

Sample Available
Yes

Sample Policy
If order is confirmed we will reimburse the sample cost

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
Central India, North India, East India, All India, South India

Certifications
AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.

About Liquid-Liquid Extraction in Packed Tower

Liquid-Liquid Extraction in Packed Tower

The setup is designed to demonstrate principles of liquid-liquid extraction and mass transfer operation in a packed column.
The set up consists of a glass column, packing, feed tanks, air regulator with pressure gauge, receiving tanks and piping. Rotameter are provided for flow measurement

Experiments

Determination of overall height of a transfer unit and overall volumetric mass transfer coefficient

Features

Stainless Steel tanks and wetted parts
Special arrangement for changing height of interface zone
Continuous operation
Superb Painted structure
Simple to operate & maintain
Compact & stand alone set up

Utilities Required

Electric supply Provide 230 +/- 10 VAC, 50 Hz, single phase electric supply with proper earthing. 5A, three pin socket with switch for Compressor
Chemicals for trial as per your choice
Compressed Air supply: Clean, oil and moisture free air, pressure 2 Bar.
Water Supply & Drain as required

Precision Extraction for Educational and Research Needs

The Liquid-Liquid Extraction Packed Tower provides a practical platform for researchers and students to vividly observe and analyze the mass transfer process between two liquid phases. Featuring a transparent glass column, customizable packing materials, and a digital display system, this equipment ensures a thorough understanding of process parameters and results. Its semi-automatic operation and flexible setup make it easy to use in laboratory environments, delivering insight into both continuous and batch extraction studies.

Flexible Design with Enhanced Safety and Control

Equipped with key safety features like overload relay, level sensors, and an emergency stop, the packed tower is safe to use for extended demonstration sessions. Independent digital controls for each phase and a high-accuracy flow rate measurement provide precise operational adjustment. This tabletop, movable unit with caster wheels enhances laboratory adaptability, while user-friendly process visualization facilitates better comprehension and data analysis.

FAQs of Liquid-Liquid Extraction in Packed Tower:

Q: How does the Liquid-Liquid Extraction Packed Tower operate for mass transfer studies?

A: The tower allows two immiscible or miscible liquids to contact each other as they flow counter-currently through packing material inside a transparent glass column. This maximizes the interfacial area, promoting efficient mass transfer, and enabling visual observation and analysis of the overall process.

Q: What are the main benefits of using Raschig rings or glass beads as packing material?

A: Raschig rings and glass beads provide a large surface area for enhanced mass transfer and increased contact between the two liquid phases, resulting in efficient extraction processes. Their chemical stability and mechanical strength further contribute to consistent performance and easy cleaning.

Q: When should I use the batch mode versus the continuous mode of operation?

A: Batch mode is best suited for short-term, small-volume experiments and when precise control over contact time is needed. Continuous mode is ideal for larger-scale, time-efficient extractions and when steady-state operation or long-term demonstrations are required.

Q: Where can this packed tower be installed, and how portable is it?

A: The unit is designed for laboratory use, either on a tabletop or as a movable system using caster wheels, making it easy to relocate as required within educational or research facilities.

Q: What processes can be demonstrated using this equipment?

A: This packed tower is suitable for visualizing the extraction of both miscible and immiscible liquids, phase separation, study of solvent effect, and quantifying mass transfer rates in academic or research contexts.

Q: How is safety ensured during operation?

A: Multiple safety features are provided, including overload relay for pump protection, level sensors to monitor fluid height, and an emergency stop switch. These safeguards help prevent equipment damage and ensure user safety.

Q: What kind of support is available after purchase?

A: Service and technical support are available from the manufacturer or exporter upon request, helping users with installation, operation, troubleshooting, and capacity customization.
