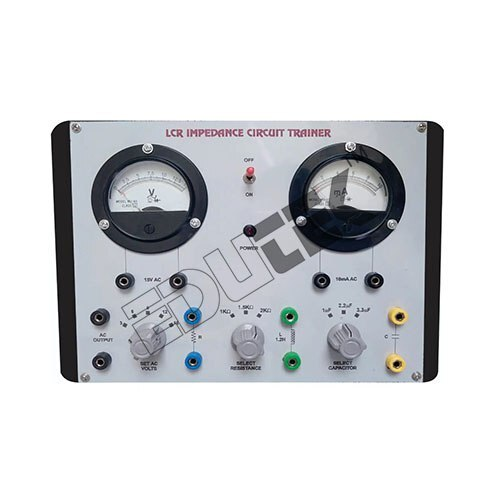

LCR IMPEDANCE APPARATUS WITH BAKELITE PANEL & ROUND METERS

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

LCR IMPEDANCE APPARATUS WITH BAKELITE PANEL & ROUND METERS Specification

Resolution
Analog scale: least count 1 , 1 mH, 0.1 F

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Interface
Panel-mounted terminals

Components
Built-in L, C, R, AC supply, and analog round meters

Features
Shock-proof Bakelite body, durable build, easy operation, standard round analog meters, suitable for laboratory experiments

IP Rating
IP20 (Indoor laboratory use only)

Response Time
Instantaneous (analog meter dependent)

Input
AC input via terminal connections

Display Type
Analog, round meters

Output
Impedance values via analog meters (L, C, R)

Operating Temperature
0C to 50C

Power Supply
230V 10%, 50 Hz AC mains

Power Source
AC mains

Product Type
LCR IMPEDANCE APPARATUS WITH BAKELITE PANEL & ROUND METERS

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Rated Voltage
250V AC (max)

Supply Voltage
230V AC

Size
Standard bench-top size

Dimension (L*W*H)
310 mm x 210 mm x 120 mm (approx.)

Function
Measures the impedance of inductors (L), capacitors (C), and resistors (R) in AC circuits.

Color
Black (Bakelite panel) with white meter backgrounds

Weight
Approx. 3.5 kg

Current Rating
0.5A (maximum load)

Thickness
Bakelite panel 5 mm approx.

Capacity
Measuring range: 0-2 k (R), 0-100 mH (L), 0-100 F (C)

Frequency
50 Hz (mains powered)

LCR IMPEDANCE APPARATUS WITH BAKELITE PANEL & ROUND METERS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About LCR IMPEDANCE APPARATUS WITH BAKELITE PANEL & ROUND METERS

Specification:

LCR IMPEDANCE APPARATUS WITH BAKELITE PANEL & ROUND METERS

Features:

Instrument comprises of 0V to 15V Step down transformer & output available on sockets.

Two Resistance R1=1K, R2=2K

Two Capacitors C1=1Uf, C2=3.3Uf and One Inductance connected inside & connections bought out on sockets.

Two meters to measure AC voltage & current are mounted on the front panel with connections brought out on sockets/ terminals.

Five single point & Two inter connectable patch cords for connections

Accurate Analog Measurement

This apparatus utilizes analog round meters to provide clear and intuitive impedance readings for resistors, capacitors, and inductors in AC circuits. The panel features a high-contrast black background with white meter faces, supporting easy visibility, while the least count ensures precise incremental readings for each parameter.

Robust Bakelite Construction

Built with a 5 mm thick high-grade Bakelite panel, the apparatus delivers superior durability and electrical insulation. The shock-proof body increases laboratory safety, and the IP20 rating ensures its suitability for indoor environments. This sturdy design guarantees sustained performance during repeated engineering experiments.

Easy Laboratory Integration

The bench-top mounting and standard panel size facilitate seamless setup in electronics laboratories. Four binding post test terminals simplify connections, and the user manual guides efficient operation. Accessories include connecting leads for immediate use upon installation, with built-in fuse protection enhancing operational reliability.

FAQs of LCR IMPEDANCE APPARATUS WITH BAKELITE PANEL & ROUND METERS:

Q: How do I connect the LCR Impedance Apparatus for measurements?

A: To measure impedance, use the four binding post terminals on the panel to connect your AC input supply and the desired component (inductor, capacitor, or resistor). The system is designed for straightforward setup with included connecting leads and clear terminal labeling.

Q: What is the measurement range supported by each meter?

A: The apparatus ranges are: Resistance02 k, Inductance0100 mH, and Capacitance0100 F. Each analog meter is factory calibrated according to these specifications, allowing for accurate readings across the full scale.

Q: When should the apparatus be used in a laboratory setting?

A: Use this apparatus whenever you require precise measurement of L, C, or R values in AC circuits during engineering electronics experiments or educational demonstrations. It is specifically designed for bench-top laboratory applications under indoor conditions.

Q: Where is the apparatus best utilized?

A: This device is ideal for engineering and electronics laboratories in educational institutions, research centers, and industrial settings in India. Its supplied as a bench-top unit and suited for indoor use owing to its IP20 rating.

Q: What process ensures the accuracy of the analog meters?

A: Each unit undergoes factory calibration using standard reference components before shipping. This process guarantees that the analog meters deliver accuracy within 2% of full scale, supporting reliable measurement for laboratory tasks.

Q: How does the Bakelite panel benefit laboratory experiments?

A: High-grade Bakelite provides electrical insulation and shock resistance, ensuring safe operation during experiments. Its durability means the apparatus can withstand frequent handling and long-term usage in busy lab environments.

Q: What accessories are supplied with the apparatus for immediate use?

A: The apparatus includes necessary connecting leads and a detailed user manual, enabling users to quickly start conducting measurements and ensuring proper operation and safety.
