LCR Bridge

Get a Price/Quote

MOQ : 1 Unit

LCR Bridge Specification

Components
Circuit board, rotary selector switch, display unit, probe connectors

Power Supply
230V AC

Usage
Measuring inductance (L), capacitance (C), and resistance (R) of components

Interface
Rotary switch control

Power Source
AC mains

Input
Test leads input

Sensors Specification
Passive measurement

Response Time
Instantaneous/real-time

IP Rating
IP20 (laboratory environment)

Resolution
0.01 (unit dependent on range)

Processor Speed
N/A (Analog device)

Operating Temperature
0C to 50C

Display Type
Analog / Mirror scale

Charging Voltage
N/A (mains powered)

Output
Analog/digital display

Features
High accuracy, easy calibration, mirrored scale to prevent parallax error

Product Type
Electronic Measuring Instrument

Application
Laboratory, research, and educational institutions

Rated Voltage
250V

Supply Voltage
230V AC, 50 Hz

Size
Standard bench-top unit

Dimension (L*W*H)
300 mm x 220 mm x 120 mm

Function
LCR Bridge

Color
Grey

Weight
3.5 Kilograms (kg)

Warranty
1 Year

Current Rating
Up to 30 mA

Thickness
Standard lab instrument

Capacity
Measurement: 0.01 mH to 1000 H, 0.01 F to 1000 F, 0.01 to 10 M

Frequency
Test frequency: 1 kHz nominal

Test Mode
L, C, and R individual selectable test modes

Accuracy
2% of reading

Build Material
Powder-coated metal housing

Accessories Included
Test leads, instruction manual

Zero Adjustment
Manual zero adjustment knob

Mounting Type
Bench-top

Overload Protection
Fuse protected

Storage Humidity
85% RH (non-condensing)

Calibration
Factory calibrated, user adjustable

Safety Compliance
CE certified for lab use

LCR Bridge Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About LCR Bridge

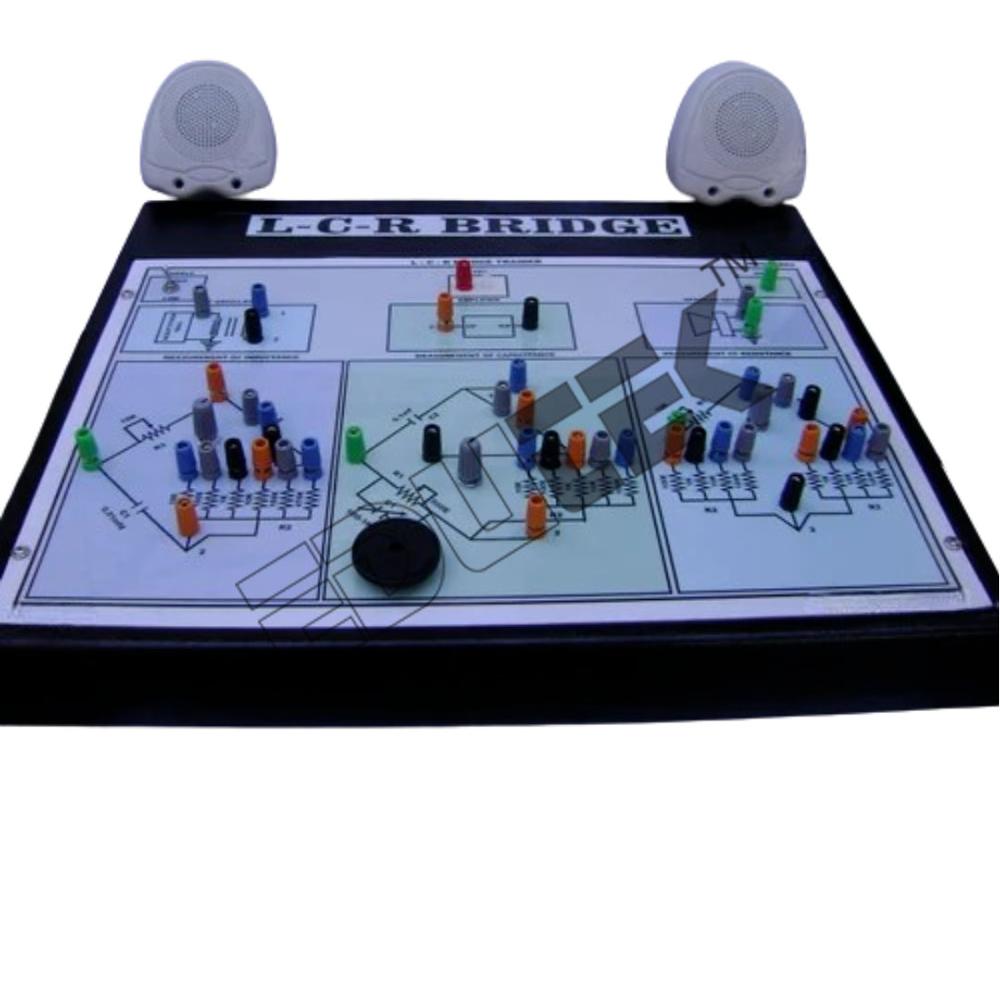

LCR Bridge EST-4562

Specification of LCR Bridge

To construct R-L-C bridge trainer There by finding the unknown values of resistor, inductor & capacitor value

It has built in signal generator & accessories as a speaker detector

Technical Specification of LCR Bridge

Built in power supply : +15V DC
Mains : 230V AC
Dimension : 37CMS X 25CMS [metal cabinet]
Weight : 3.5KGS APPX.

High-Accuracy LCR Measurement

With selectable test modes for inductance, capacitance, and resistance, the LCR Bridge provides accurate readings within 2% tolerance. The mirrored analog scale minimizes parallax error, resulting in reliable data for critical laboratory and educational activities. Its user-friendly interface and real-time response allow quick, consistent measurements.

Robust Design and Safety Compliance

Housed in powder-coated metal and certified to CE safety standards, the LCR Bridge is engineered for longevity and secure use in demanding laboratory environments. Overload protection via a fuse and IP20 rating ensures operational safety. The sturdy bench-top build is ideal for repeated, daily usage.

FAQs of LCR Bridge:

Q: How does the LCR Bridge enable accurate component measurements?

A: The LCR Bridge uses individual selectable test modes for L, C, and R, coupled with high-resolution analog display and manual zero adjustment. Its mirrored scale prevents parallax errors, ensuring accurate and reliable readings within 2% of the actual value.

Q: What process should I follow to calibrate the LCR Bridge?

A: The device comes factory calibrated for immediate use. For user calibration, follow the instructions in the manual, utilizing the zero adjustment knob to set baseline readings before measurement. Periodic recalibration helps maintain top accuracy in varied conditions.

Q: Where is the LCR Bridge typically used?

A: This instrument is commonly implemented in laboratories, research facilities, and educational institutions for the precise measurement of electronic component values. Its bench-top design and robust housing make it suitable for frequent use in these professional environments.

Q: When should I use the manual zero adjustment knob?

A: The manual zero adjustment knob should be used before taking measurements to eliminate residual offsets or drift, ensuring each reading starts from an accurate zero baseline. This routine adjustment boosts measurement reliability.

Q: What are the key benefits of using a CE-certified LCR Bridge with overload protection?

A: CE certification ensures compliance with safety regulations, and built-in overload (fuse) protection safeguards both users and the instrument from accidental overcurrent. These features collectively ensure dependable and secure laboratory operation.

Q: How do I use the included accessories with the LCR Bridge?

A: Connect components under test using the provided test leads and refer to the detailed instruction manual for step-by-step operational guidance. The analog display shows immediate results, and rotary switches allow easy selection of desired measurement mode.

Q: What maintenance or care does the LCR Bridge require?

A: Regularly calibrate using the manual zero knob and periodically inspect for any dust or damage to test leads and connectors. Store the unit in an environment with 85% relative humidity, and check the fuse occasionally to maintain overload protection.
