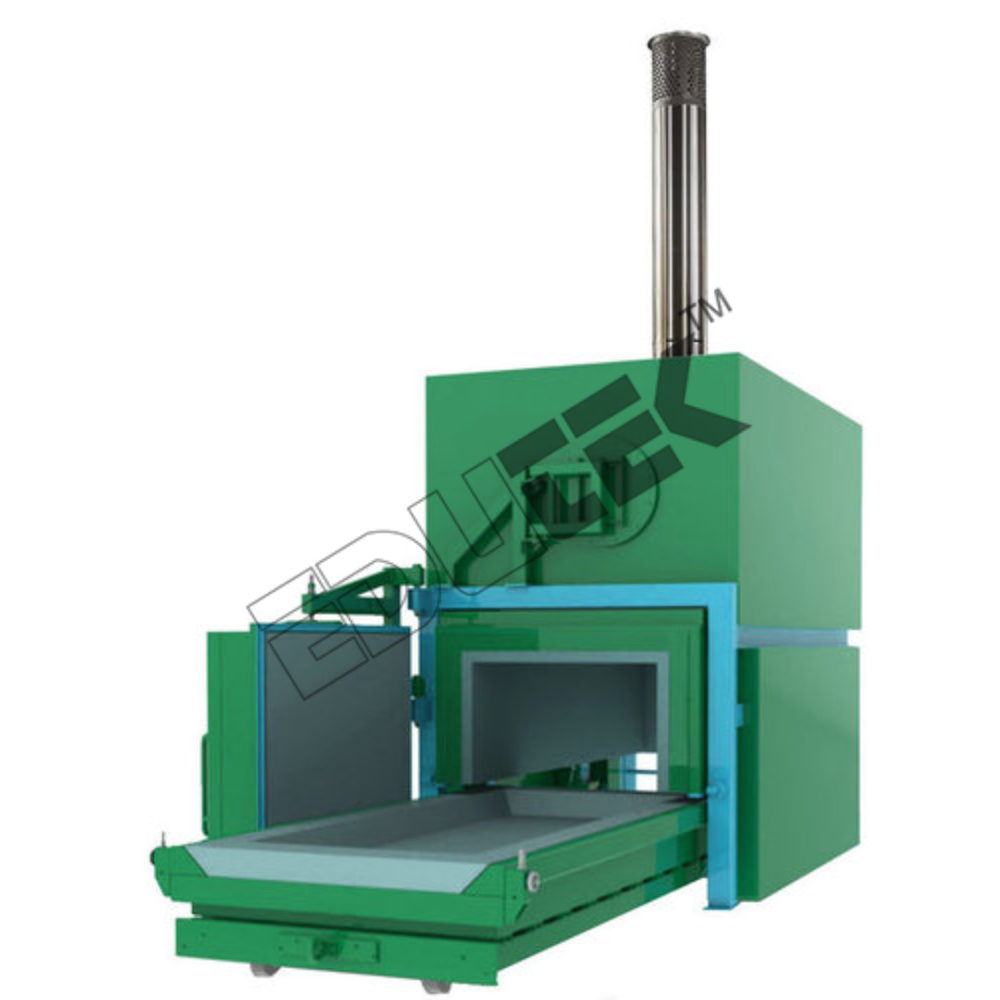

Large Animal Incinerator

Price 1000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Large Animal Incinerator Specification

Automation Grade
Semi-Automatic

Measurement Range
Up to 250 kg per cycle

Core Components
Burner, Combustion Chamber, Control Panel

Voltage
220/380 V Volt (v)

Capacity
250 kg per batch Kg/hr

Temperature Range
Up to 1100 C Celsius (oC)

Power Source
Electric / Diesel / Dual Fuel

Model No

Frequency
50/60 Hz Hertz (HZ)

Feature
Highly Efficient

Accuracy
100 % %

Equipment Materials
Heavy Duty Steel with Ceramic Lining

Type
Large Animal Incinerator

Usage
Laboratory

Display Type
Digital

Dimension (L*W*H)
2900 mm x 1400 mm x 1800 mm Millimeter (mm)

Weight
Approximately 1500 kg Kilograms (kg)

About Large Animal Incinerator

Large Animal Incinerator

Large Animal waste incinerators incinerate big dead animals like cow, pigs, buffalos, oxe etc.It is widely used to destroy to animal infection diseases, viruses and animal waste material.These products are manufactured using latest technology machinery.Large Animal Incinerator is double wall construction, duly insulated with high efficiency ceramic bricks, with dual chambers for complete combustible their dead bodies/carcass.The heating elements of these systems are made using nichrome wire. The chamber temperature is controlled by a PLC digital temperature controller.These products have separate doors for waste burning chamber and for ash collecting tray.A chimney is provided for emission of fumes. The incinerator reduces most combustible solid waste to nearly 2-3 percent by volume and up to 5% by weight.Large animal incinerator are easy to install and extremely durable equipment. It is available in varied capacity/sizes based on the requirement of Forest Department, Animal Industries and Poultry farms.

Characteristics

Applications: for large animals, for animal waste
Other Characteristics: Floor-standing
Temperature range: Min. 850 C (1562 F), Max. 1150 C (2102 F)
Power Requirement: Diesel, LPG/N-Gas, Electrical
Capacity: 100, 200, 250, 500, 1000, 1300, 1500 Kg/Hr.
Temperature monitoring: Yes
Average ash residue (%): Upto 5%

Advanced Combustion and Safety Features

The incinerator is equipped with a secondary chamber reaching temperatures of up to 1150C, ensuring complete combustion and significant emission reduction. Safety is prioritized with programmable digital controls, automatic ignition, and interlocks for overheat protection, supporting uninterrupted and secure operation for laboratory environments.

Highly Efficient and User-Friendly Operation

Capable of burning up to 250 kg per hour, the incorporates a digital display for accurate monitoring, automatic spark ignition, and options for hydraulic or manual doors. Its semi-automatic control system enables users to adjust incineration cycles confidently, while low ash residue and fuel efficiency minimize operational costs.

Environmental Compliance and Optional Features

Meeting CPCB/EPA emission standards, this incinerator can be equipped with an optional heat recovery system to repurpose residual heat. Skid-mounted transportability facilitates easy relocation. Robust insulation and exhaust stack design ensure reduced heat loss and safe emissions, making it ideal for laboratories and large animal waste disposal sites.

FAQs of Large Animal Incinerator:

Q: How does the Large Animal Incinerator ensure safe and efficient burning of animal waste?

A: The incinerator employs dual chambers, with the secondary chamber reaching up to 1150C for complete combustion. Safety interlocks, automatic ignition, and overheat protection are integrated to maintain secure, efficient operation while keeping ash residue below 3%.

Q: What fuel types can be used to operate the incinerator?

A: The supports electric, diesel, or dual fuel operation. Standard fuel consumption is between 8 and 12 liters of diesel per hour, catering to different facility requirements and providing flexible installation options.

Q: When should the heat recovery system be considered for this incinerator?

A: The optional heat recovery system is recommended when energy conservation or secondary heat utilization is desired, helping to reduce operational costs and environmental impact, especially in large facilities or repeated incineration cycles.

Q: Where is the Large Animal Incinerator ideally used?

A: This incinerator is designed for laboratory environments and large animal disposal sites, offering robust performance, portability, and compliance with emission standards suitable for specialized waste management locations.

Q: What is the process for operating the incinerator, and how is it monitored?

A: Operation involves loading up to 250 kg of waste per batch, selecting control settings via the programmable digital controller, and initiating automatic ignition. The digital display allows precise monitoring of temperature and process parameters throughout each cycle.

Q: What are the key benefits of using the incinerator?

A: Key advantages include high burning rates, minimal ash residue, automatic controls, compliance with strict emission norms, and optional energy recovery. Its robust steel construction and ceramic lining ensure durability and performance even in demanding applications.

Q: How does the transportability feature enhance the incinerators usability?

A: The skid-mounted design enables easy relocation of the incinerator, making it suitable for facilities needing mobility or those operating temporary disposal sites, without compromising efficiency or safety.
