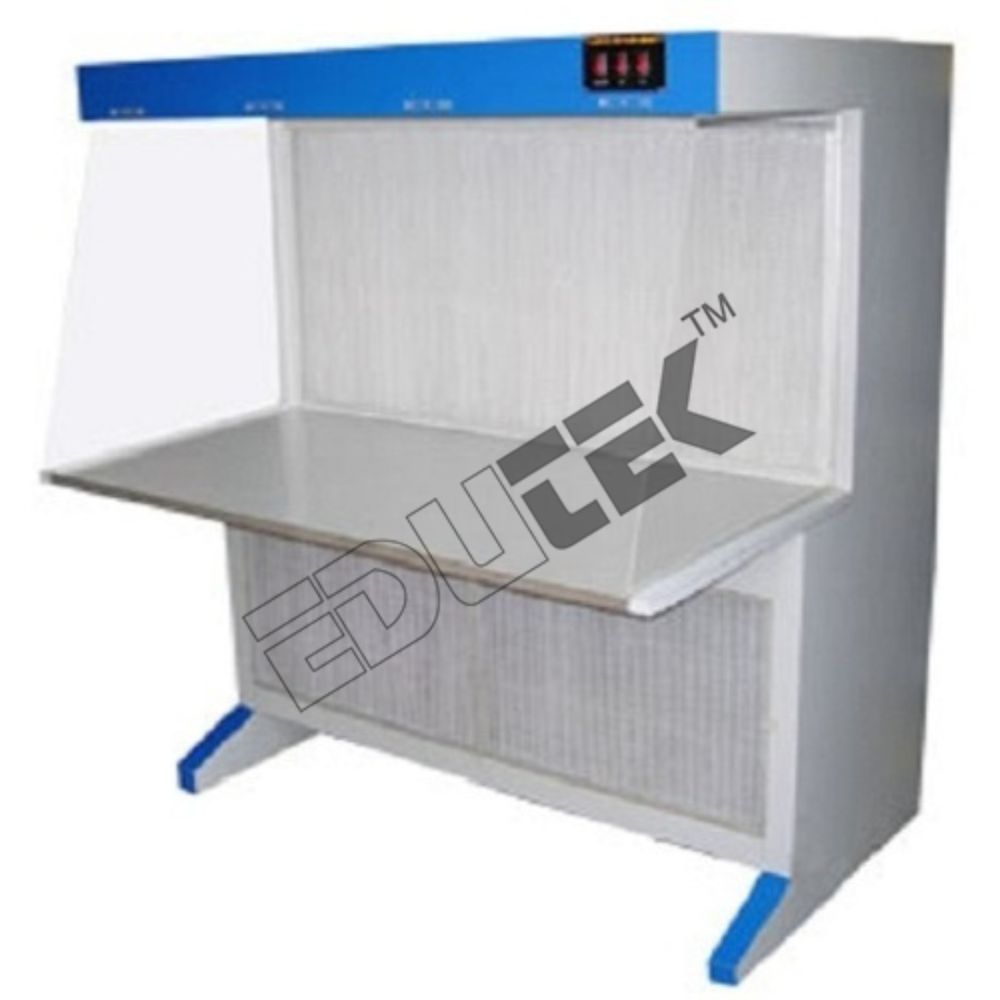

Laminar Flow Cabinet

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Laminar Flow Cabinet Specification

Core Components
HEPA Filter, Motor, UV Lamp, Pre-Filter

Measurement Range
Standard

Capacity
Standard / Customizable

Feature
Highly Efficient

Voltage
220-240 V

Automation Grade
Semi-Automatic / Manual

Power Source
Electric

Model No
Custom / As specified

Temperature Range
Ambient

Frequency
50 Hz

Accuracy
100 %

Equipment Materials
Stainless Steel Body with Acrylic Front Panel

Type
Horizontal or Vertical Laminar Flow

Usage
Laboratory

Display Type
Analog / Digital

Dimension (L*W*H)
Approx. 1200 x 600 x 600 mm

Weight
Approx. 60-80 kg

Air Cleanliness
Class 100 as per US Federal Standard 209E

Noise Level
Low Noise Operation (<65 dB)

Pre Filter
Washable Synthetic Media

Illumination
Fluorescent Lamp Provided

HEPA Filter Efficiency
99.97% for 0.3 micron particles

About Laminar Flow Cabinet

LAMINAR FLOW CABINET

Laminar Air Flow Cabinets works on laminar flow principle involves double filtration of air through coarse Pre Filters and Hepa filters for filtration of Biological & Particulate contaminants. A constant uni-directional air flows either Horizontally or Vertically, is drawn from atmosphere and passed through pre and Hepa filters on to the work surface. Fabricated out of reinforced pest and weather resistant Duro-board which is clad in from outside in laminated sheet and inner exposed areas are finished in Epoxy paint. Table top stainless steel sheet. Side panels are fixed and made of clear plexiglass. Front door is folding & made of clear plexiglass.

Dimensions (h x d x w) mm: 1268 X 664 X 1274 mm,
Maximum air velocity: 0.45 m/sec,
Pre-filter: 95 % efficient at microns
HEPA filter: 99.997 % efficient at 0.3 microns,
Fan :double inlet,
Centrifugal,
Super silent,

Spare parts:

Pre-filter,
Heap filter,
Fan assembly

Advanced Air Purity for Sensitive Applications

Experience exceptional air cleanliness with the Laminar Flow Cabinet, certified to Class 100 standards under US Federal Standard 209E. Its high-efficiency particulate air (HEPA) filter captures 99.97% of particles as small as 0.3 microns, ensuring a contaminant-free working areathe ideal solution for laboratory, research, and pharmaceutical needs.

Engineered for User Convenience and Durability

This cabinet features a robust stainless steel construction with an acrylic front panel for long-term durability and clear visibility. It operates quietly (under 65 dB), supports both semi-automatic and manual modes, and is available in horizontal or vertical flow designs. Cleaning and maintenance are simplified by the washable pre-filter and ergonomic design.

FAQs of Laminar Flow Cabinet:

Q: How does the Laminar Flow Cabinet ensure a contamination-free workspace?

A: The cabinet utilizes a certified Class 100 HEPA filter (99.97% efficiency for 0.3 micron particles), paired with a washable pre-filter, to remove dust, microorganisms, and airborne particulates. Directional airflow prevents contaminated air from entering the workspace, ensuring sterile conditions for sensitive laboratory procedures.

Q: What are the main benefits of using this Laminar Flow Cabinet?

A: The cabinet offers ultra-clean air for critical tasks, low-noise operation (below 65 dB), robust construction, high filtration accuracy, and versatile operation modes. Operations benefit from reduced risk of contamination, ergonomic design, and user-friendly maintenance, making it ideal for laboratories and cleanroom environments.

Q: When should I replace or clean the filters in the cabinet?

A: The pre-filter should be washed or replaced regularly, depending on usage and laboratory environmenttypically every 1-3 months. The HEPA filters lifespan varies, but it is generally replaced annually or when a drop in airflow or increased particle count is noticed.

Q: Where can the Laminar Flow Cabinet be installed, and what are its power requirements?

A: This cabinet is designed for laboratory environments and should be installed on a flat surface with sufficient surrounding clearance. It operates on standard electric power (220-240 V, 50 Hz) and can be customized to fit specific space requirements with approximate dimensions of 1200 x 600 x 600 mm.

Q: What types of tasks and samples are suitable for the Laminar Flow Cabinet?

A: Ideal for tasks requiring particulate-free environments such as microbiology, pharmaceutical production, electronics assembly, and sample preparation, the cabinet protects samples, work materials, and sensitive experiments from airborne contamination.

Q: How do I use the Laminar Flow Cabinet effectively and safely?

A: Activate the airflow system before starting any procedure, ensure the workspace is sterilized, and use proper aseptic techniques. Regularly check the display (analog/digital) for system status and ensure the UV lamp and filters are maintained according to manufacturer instructions for continued safe operation.
