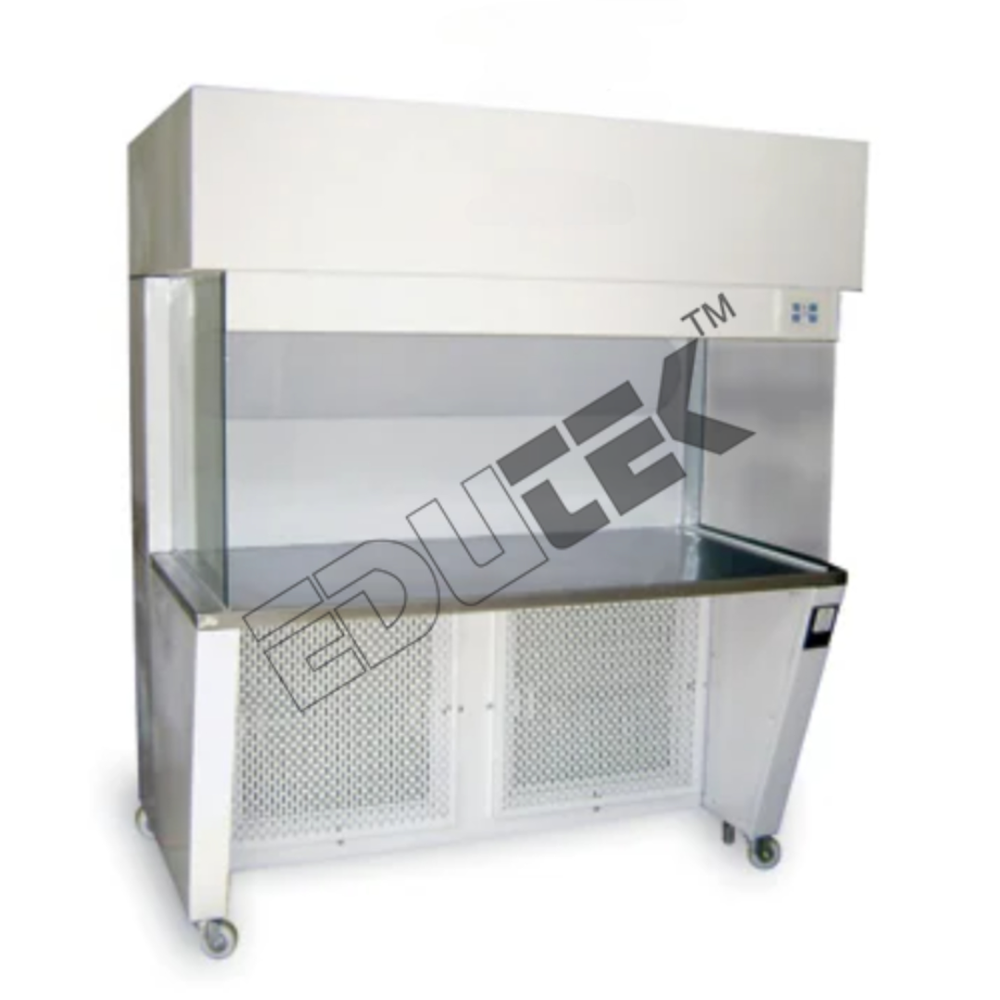

Laminar Air Flow Cabinet SS

Get a Price/Quote

MOQ : 1 Piece

Laminar Air Flow Cabinet SS Specification

Capacity
1 to 2 person workspace Kg

Automation Grade
Semi-Automatic

Warranty
1 Year

Feature
ISO Class 5 cleanliness, low noise operation, energy efficient

Frequency
50 Hz Hertz (HZ)

Voltage
230V Volt (v)

Measurement Range
0.3 micron filtration

Model No

Accuracy
Filtration accuracy up to 0.3 micron %

Core Components
HEPA Filter, Blower, UV Lamp, Pre-Filter, Fluorescent Lamp

Temperature Range
Ambient to 50 C Celsius (oC)

Power Source
230V AC

Equipment Materials
High grade stainless steel (SS 304)

Type
Horizontal Laminar Air Flow Cabinet

Usage
Laboratory, Pharmaceutical, Research, Medical

Display Type
Digital Display

Dimension (L*W*H)
900 x 600 x 1200 mm (3ft x 2ft x 4ft) Foot (ft)

Weight
Approx. 90-100 kg Kilograms (kg)

Cabinet Finish
Smooth, matte finished for easy cleaning

Vibration Level
Low, suitable for sensitive work

Caster Wheels
Provided for easy mobility

Work Surface
Stainless steel perforated surface

Noise Level
< 65 dB(A)

Front Door
Sliding, transparent acrylic panel

Filter Type
HEPA Filter (Efficiency 99.97% at 0.3 micron)

Particle Retention
ISO Class 5 (Class 100)

Lighting
Fluorescent lamp and UV germicidal lamp fitted

Air Flow Velocity
0.45 0.05 m/s

Electrical Socket
Provided inside the workspace

Laminar Air Flow Cabinet SS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Laminar Air Flow Cabinet SS

Laminar Air Flow Cabinet (SS) ETC-73C

Laminar Air Flow Cabinet ( Stainless Steel)

Table Top model.
Satin Finish S.S.Table Top(in lieu of formica Top).
Traansparent front door.
Static Pressure. Inclined Manometer.
Built in U.V.Germicidal light.
Cock for gas, air or vacuum line.
Cold rolled MS Sheet body duly powder coated.
Stainless steel body duly polished.
Particle dust count validation at site after installation.
HEPA Filter.
Pre Filter.

Available in Following Sizes.

Working Chamber: 2 x 2 x 2
Working Chamber: 3 x 2 x 2
Working Chamber: 4 x 2 x 2
Working Chamber: 6 x 2 x 2
Working Chamber: 8 x 2 x 2

Advanced Filtration and Air Flow

The laminar air flow cabinet utilizes a HEPA filter with an impressive 99.97% efficiency at 0.3 micron, ensuring ultra-clean air. Its horizontal air flow at a velocity of 0.45 0.05 m/s provides ISO Class 5 cleanliness within the work area, making it ideal for sensitive laboratory and pharmaceutical applications.

Safe and Functional Workspace

Equipped with a stainless steel perforated work surface, sliding transparent acrylic front panel, and both fluorescent and UV lamps, this cabinet offers excellent visibility and effective germicidal protection. Low noise and vibration further ensure a disturbance-free, safe environment for delicate procedures.

Designed for Practical Use and Mobility

Built from high-grade SS 304 with a matte finish, the cabinet allows easy cleaning and resistance to corrosion. Caster wheels provide convenient mobility, while the digital display and internal electrical socket add functionality. With a workspace suited for one or two users, its perfect for a variety of professional settings.

FAQs of Laminar Air Flow Cabinet SS:

Q: How does the Laminar Air Flow Cabinet SS maintain a contamination-free environment?

A: The cabinet utilizes a high-efficiency HEPA filter, capable of capturing 99.97% of particles as small as 0.3 microns, combined with horizontal laminar air flow at 0.45 0.05 m/s, to provide a continuous stream of ultra-clean air and maintain ISO Class 5 cleanliness.

Q: What are the primary benefits of using this laminar flow cabinet in laboratories or pharmaceutical facilities?

A: Key advantages include reliable air purity, low noise (<65 dB(A)), minimized vibration for sensitive work, easy cleaning surfaces, and added germicidal protection from the integrated UV lamp, ensuring safe and sterile conditions during operations.

Q: When should I use the UV germicidal lamp fitted inside the cabinet?

A: The UV germicidal lamp is best used before or after experimental activities, when the work area is unoccupied, to effectively sterilize the surface and air, eliminating residual microorganisms for enhanced safety.

Q: Where can this laminar air flow cabinet be effectively utilized?

A: This cabinet is designed for environments requiring high levels of cleanliness, such as research laboratories, pharmaceutical production, medical test environments, and quality control departments, both in India and globally.

Q: What is the process for cleaning and maintaining the cabinet?

A: Regularly wipe down the stainless steel matte surfaces with appropriate disinfectants, monitor and replace the HEPA filter as needed, and operate the UV lamp periodically to ensure ongoing sterilization. Ensure that the pre-filter is also checked and cleaned according to manufacturer instructions.

Q: How does the digital display enhance user experience in this cabinet?

A: The digital display provides real-time monitoring of essential parameters like airflow velocity and temperature, assisting users in maintaining optimal working conditions and ensuring procedural accuracy.
