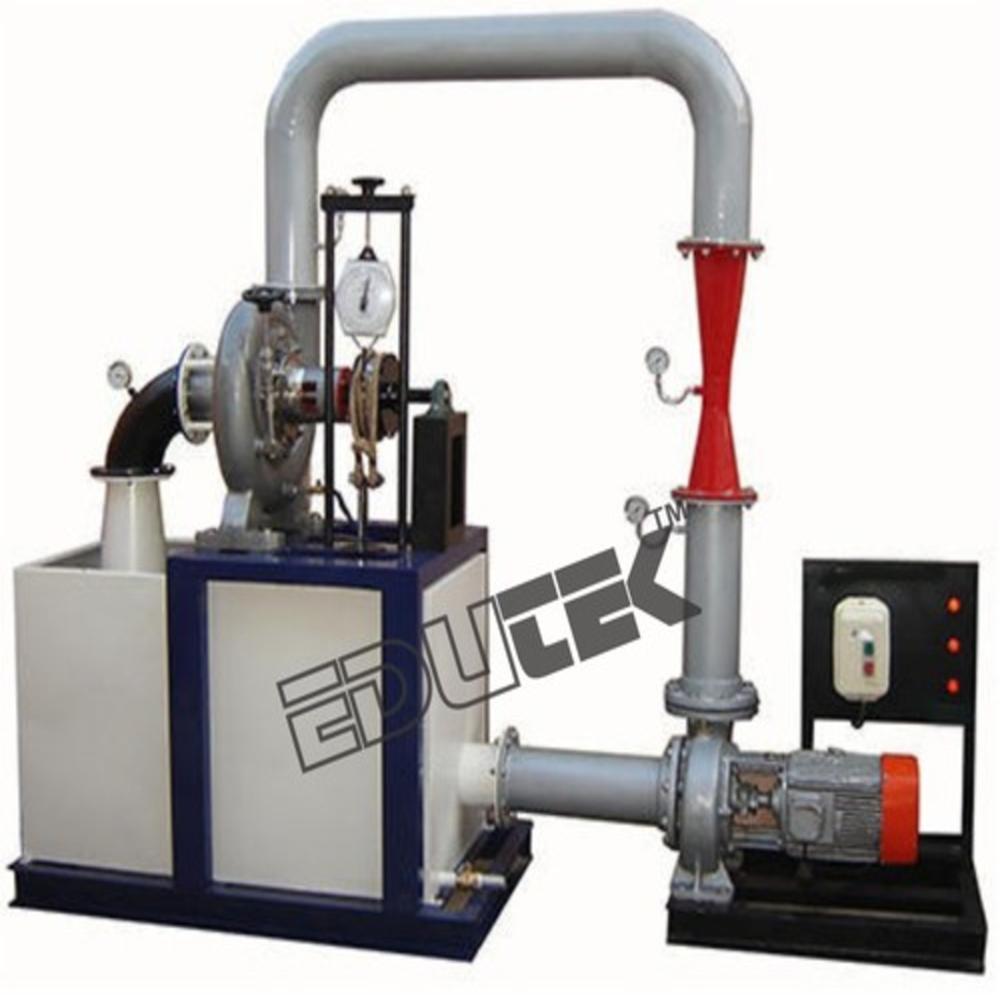

Kaplan Turbine Trainer

Price 100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Kaplan Turbine Trainer Specification

Frequency
50 Hz

Measurement Range
Up to 35 m head, 50 lpm flow

Automation Grade
Semi-Automatic

Model No
KTT-101

Accuracy
1%

Temperature Range
Ambient to 60C

Core Components
Kaplan Turbine, Dynamometer, Water Circulation System, Control Panel

Power Source
Electric

Capacity
25-50 lpm

Warranty
1 year

Voltage
220-240 V AC

Feature
investigate the characteristic behavior of a simple-regulated Kaplan turbine during operation.

Equipment Materials
Stainless Steel, Brass, Acrylic

Type
Training Equipment

Usage
Lab Testing / Engineering Education

Display Type
Digital / Analog

Dimension (L*W*H)
1200 x 600 x 1500 mm

Weight
Approx. 65 kg

Kaplan Turbine Trainer Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Middle East, Africa, Western Europe

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Kaplan Turbine Trainer

KAPLAN TURBINE TRAINER

The unit is used to investigate the characteristic behavior of a simple-regulated Kaplan turbine during operation.
The trainer is provided with a closed water circuit with tank, submersible pump and throttle valve tbr adjusting the flow rate.
The angle of attack of the rotor, and thus the power output of the turbine, is changed by adjusting the guide vanes.
The turbine is loaded with a wear-free eddy current brake.
The speed is captured by means of an inductive, non-contact position sensor at the turbine shaft.
For determining the turbine power, the eddy current brake is equipped with a force sensor for torque measurement.
The pressures at the inlet and outlet of the turbine, the temperature and the flow rate are recorded with sensors.
The recorded measured values are displayed digitally and processed further in a PC.
The PC is used to calculate the power output data of complete with all required accessories.
The examined turbine and to represent them in characteristic curves.

Kaplan turbine

output: about 1000 W
speed: about 3700 min-1
distributor 8 guide vanes,
4 blades,
Adjustable: -15 deg....45 deg. rotor
fixed external : 120 mm,
internal : 60 mm,
pitch: 80 mm

Pump with motor

flow rate: about 250m3/h
pump head: about 10m
nominal power: about 3 kW
Software for data acquisition and PC with Windows 230V, 60Hz, 3
Complete with all required accessories.

Precision Training for Hydraulic Laboratories

The Kaplan Turbine Trainer offers the ideal solution for hands-on experimentation and in-depth study of water turbines. Designed for universities and technical institutes, it delivers accurate, repeatable data on power, efficiency, flowrate, and head under controlled, safe conditions leveraging a semi-automatic control panel and digital measurement suite.

Adjustable and Versatile Experimental Features

With adjustable impeller blades and variable speed drive, the trainer lets users investigate turbine responses across a spectrum of operating parameters. Its configuration supports both digital and analog displays, precise flow/pressure control, and optional computer data logging, enabling diverse experiments and modern education in renewable energy and hydraulic engineering.

Rugged Construction and Safety at the Forefront

Manufactured using stainless steel, brass, and acrylic, the Kaplan Turbine Trainer is durable for regular lab use. Safety systems include overload protection, emergency shutoff, and high-accuracy sensors ensuring reliable, secure experimentation. Backed by a one-year warranty, it integrates effectively into existing or new laboratory settings.

FAQs of Kaplan Turbine Trainer:

Q: How does the Kaplan Turbine Trainer help in engineering education?

A: This trainer allows students and researchers to explore the working principles and performance characteristics of a simple-regulated Kaplan turbine. By adjusting parameters such as blade pitch and speed, users gain practical understanding of hydraulic power generation and turbine behavior under different operating conditions.

Q: What output parameters can be measured and displayed during a test?

A: The trainer provides digital and analog display of key metrics, including turbine output, efficiency, flowrate, head, and operating speed. Measurements are gathered using precise sensors and can be logged through an optional computer interface for advanced data analysis.

Q: When should the safety features like overload protection and emergency stop be used?

A: Overload protection and the emergency stop are built-in for laboratory safety. They should be engaged immediately in cases of abnormal operation, excessive load, or unexpected system faults to prevent equipment or user harm.

Q: Where is the Kaplan Turbine Trainer most effectively utilized?

A: This equipment is ideal for hydraulic laboratories within engineering educational institutions, research centers, and renewable energy training programs, enabling practical demonstrations and hands-on investigations across a variety of water energy topics.

Q: What is the process for adjusting flow rate and impeller pitch during experiments?

A: Operators can control water flow using the gate valve and the vanes, while the impeller blade pitch is adjusted either prior to running the test or dynamically as needed. These features allow for the simulation of real-world variable load scenarios and optimization studies.

Q: How does the trainer benefit renewable energy training?

A: By simulating the operation of a real Kaplan turbine, the trainer facilitates understanding of modern water-based energy solutions. Students and trainees can visualize the effects of design adjustments and renewable energy integration in an interactive, tangible way.
