Kaplan Turbine Test Rig

Price 100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Kaplan Turbine Test Rig Specification

Warranty
1 year

Capacity
200 Ltr

Feature
Highly Efficient

Equipment Materials
Stainless steel

Type
Kaplan Turbine

Usage
Industrial

Kaplan Turbine Test Rig Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cheque, Telegraphic Transfer (T/T)

Sample Available
Yes

Main Domestic Market
All India

Certifications
AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.

About Kaplan Turbine Test Rig

Kaplan Turbine Test Rig

Our organization is regarded among the authentic manufacturers and exporters of optimum quality Kaplan Turbine Test Rig. Highly acknowledged for its corrosion resistance, shock proof body construction and hassle-free operation, offered equipment is extensively demanded among our huge client base.

Description :

Kaplan Turbine is an axial flow reaction turbine named in honour of Dr. B. Kaplan, a German Engineer.
This turbine is suitable for low head. The power produced by a turbine is proportional to QH. As the head (H) decreases the discharge (Q) must increase to produce the same power.

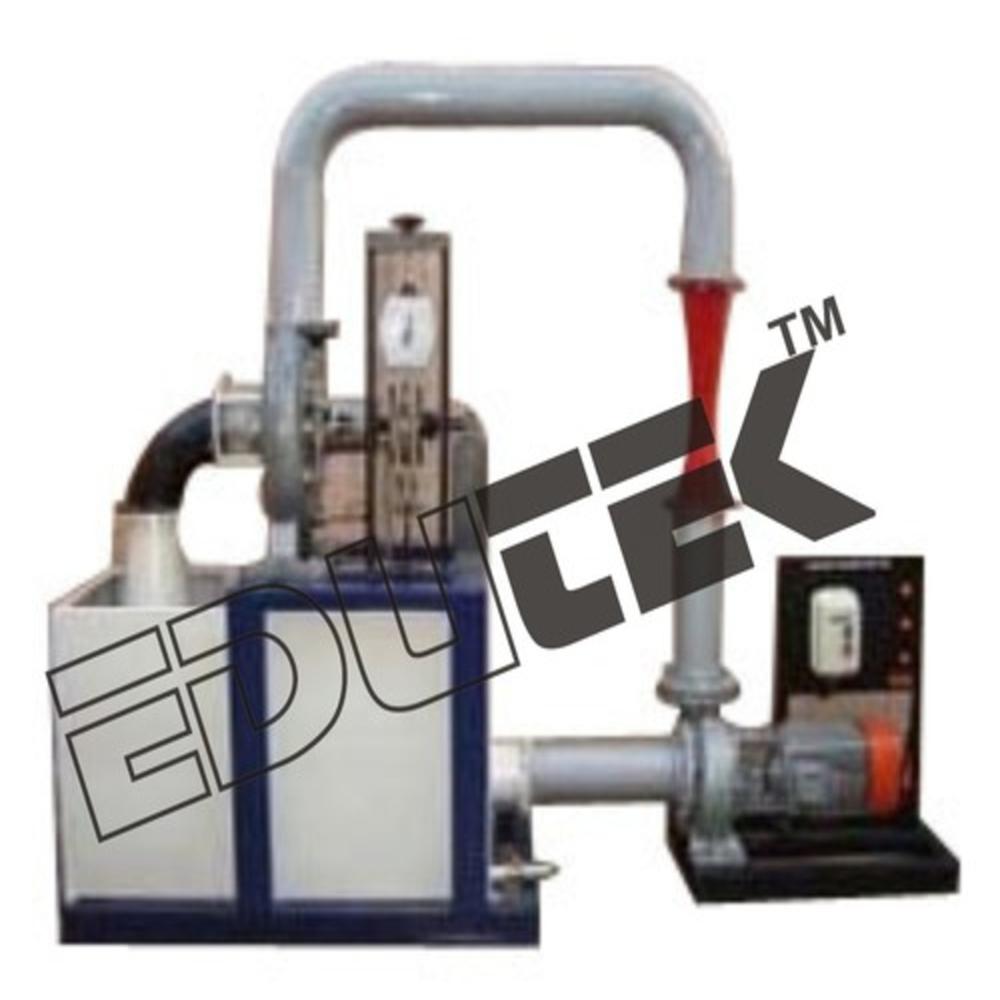

The present set-up consists of a scroll casing housing a runner.
Water enters the turbine through the stationary guide vanes and passes through the runner axially.
The runner has a hub and airfoil vanes,which are mounted on it . The water is fed to the turbine by means of Centrifugal Pump.
The runner is directly mounted on one end of a central shaft and other end is connected to a brake arrangement.
A transparent hollow cylinder made of acrylic is fitted in between the draught tube and the casing for observation of flow on to the airfoil vanes.
This runner assembly is supported by thick cast iron pedestal. Load is applied to the turbine with the help of drum brake arrangement so that the efficiency of the turbine can be calculated.
The set-up is supplied with control panel.
Pressure and Vacuum gauges are fitted at the inlet and outlet of the turbine to measure the total supply head on the turbine.

Experimentation :

To study the operation of Kaplan turbine.
To determine the Output Power of Kaplan Turbine.
To determine the turbine efficiency.

Utilities required :

Electricity Supply: Three phase, 420 VAC, 50 Hz, 32 Amp. 4 Pole MCB with earth connection.
Water supply (Initial Fill).
Floor Drain Required.
Floor Area required: 3.5 x 1.5 m.
Tachometer to measure RPM.
Mercury for Manometer (250gms).

Technical Specification :

Output Power: 1 kW.
Discharge: 1000 LPM.
Supply Head: 5-8 M.
Normal Speed: 2000 RPM.
Dynamometer: Rope Brake type.
Water Circulation: Centrifugal Pump, CRI/Standard, Make, Capacity 5 HP, 3Phase.
Discharge Measurement: Pitot Tube with Manometer.
Sump Tank: Capacity 200 Ltrs.
Pressure Measurement: Pressure Gauge & Vacuum Gauge.
Piping & Fittings: Pipes & fittings with flow control valves of suitable size.
Control Panel Comprises of: L&;T make Starter, Mains Indicator,MCB for overload protection.
Instruction Manual: An ENGLISH instruction manual will be provided along with the Apparatus.
Tanks will be made of Stainless Steel.
The whole set-up is well designed and arranged in a good quality painted structure.

Exceptional Efficiency and Durability

Built using premium stainless steel, the Kaplan Turbine Test Rig delivers exceptional efficiency and longevity. Its advanced design maximizes turbine performance during testing, making it suitable for rigorous industrial and educational applications. Each unit is crafted for precision and lasting reliability.

Tailored for Industrial and Educational Use

Designed specifically for industrial and academic environments, this test rig simplifies the study of Kaplan turbine mechanics. Its 200-liter capacity accommodates comprehensive experiments, enabling users to accurately assess operational metrics and performance outcomes in controlled environments.

FAQs of Kaplan Turbine Test Rig:

Q: How does the Kaplan Turbine Test Rig work in an industrial environment?

A: The Kaplan Turbine Test Rig operates by channeling water through its turbine system, allowing users to observe and measure the efficiency, output, and characteristics of the Kaplan turbine in a controlled industrial setting. Its stainless steel construction ensures durability during frequent usage.

Q: What are the benefits of using a highly efficient Kaplan Turbine Test Rig?

A: Utilizing this highly efficient test rig helps optimize testing procedures, resulting in precise data collection and enhanced analysis of turbine behavior. This contributes to better research outcomes and improved learning for students and professionals alike.

Q: When should the Kaplan Turbine Test Rig be employed for testing purposes?

A: The test rig should be used whenever performance analysis, efficiency study, or operational demonstration of Kaplan turbines is required. It is ideal for periodic laboratory experiments and continuous educational training sessions.

Q: Where is the Kaplan Turbine Test Rig manufactured and exported from?

A: This test rig is manufactured, supplied, and exported from India, meeting rigorous quality standards and serving clients both domestically and internationally through established distribution channels.

Q: What is the process of conducting experiments with the Kaplan Turbine Test Rig?

A: To conduct experiments, water is introduced into the rig, activating the Kaplan turbine. Various sensors and gauges track performance metrics such as torque, speed, and efficiency. Users record and analyze the data to evaluate turbine characteristics.

Q: How does one benefit from the one-year warranty provided on the Kaplan Turbine Test Rig?

A: Buyers enjoy peace of mind knowing their equipment is protected against manufacturing defects for one year. This warranty ensures timely support and maintenance, facilitating uninterrupted testing and research activities.
